UGC DOR6706534
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$98.84 CAD - $98.84 CAD
$98.84 CAD
$98.84 CAD - $98.84 CAD
$98.84 CAD

Vendu en lots de : 1

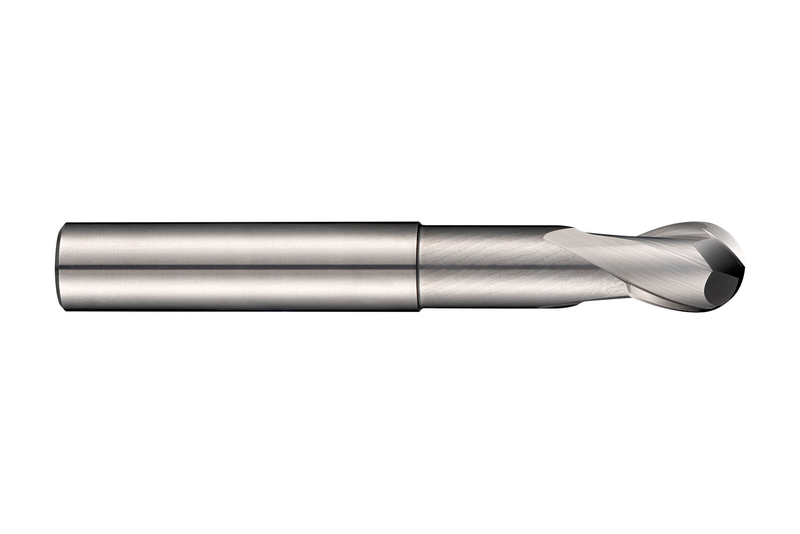

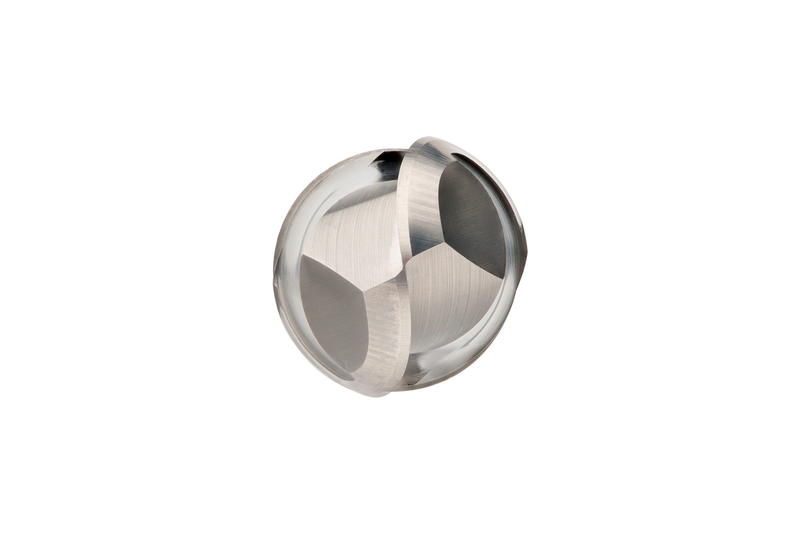

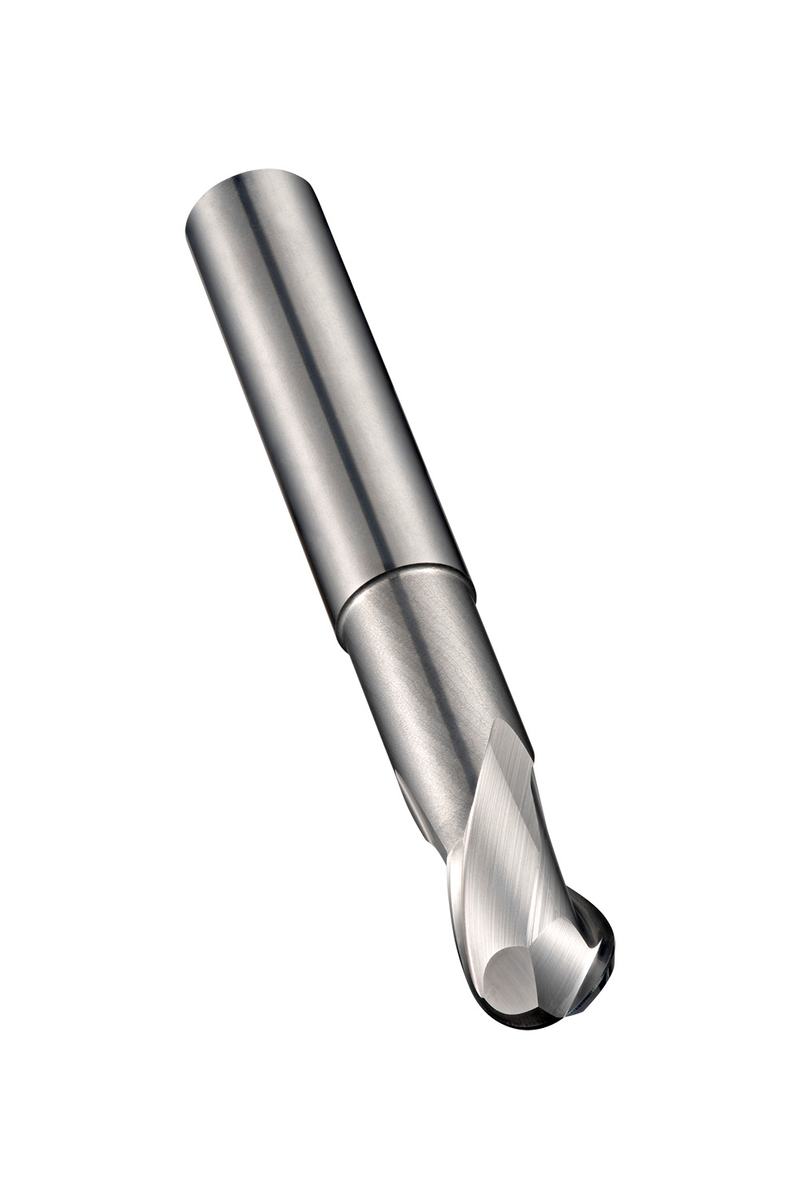

Fraise boule extra courte série, 2 lèvres, diamètre 8mm avec une longueur de coupe de 10mm, longueur totale de 64mm, longueur de dégagement de 25mm avec collet détalonné et rayon de profil complet de 4mm, selon la norme DORMER avec un queue cylindrique de 8mm, en carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 15° pour le fraisage de forme dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6298.0
GradeLumineux
Product Number6706534
Product FamilyS629

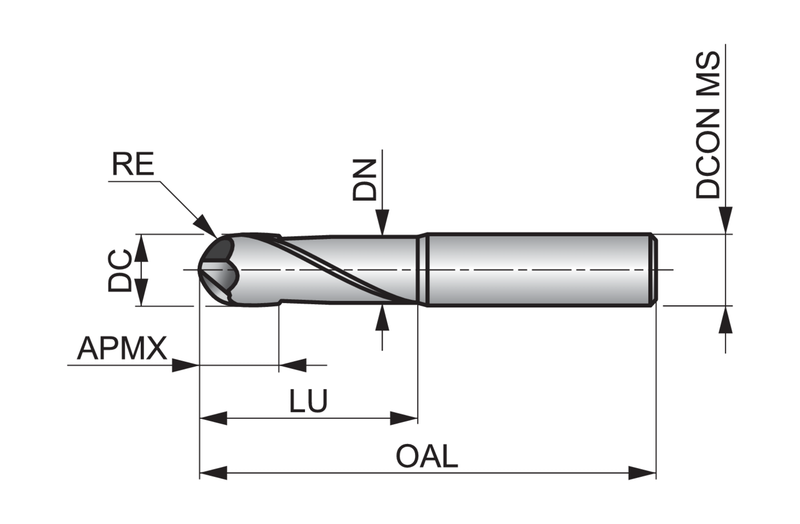

Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706534
EAN7320760680834
File Type Download
S6298.0 — Line Drawing PDF Download
