UGC DOR6706535
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$129.50 CAD - $129.50 CAD
$129.50 CAD
$129.50 CAD - $129.50 CAD
$129.50 CAD

Vendu en lots de : 1

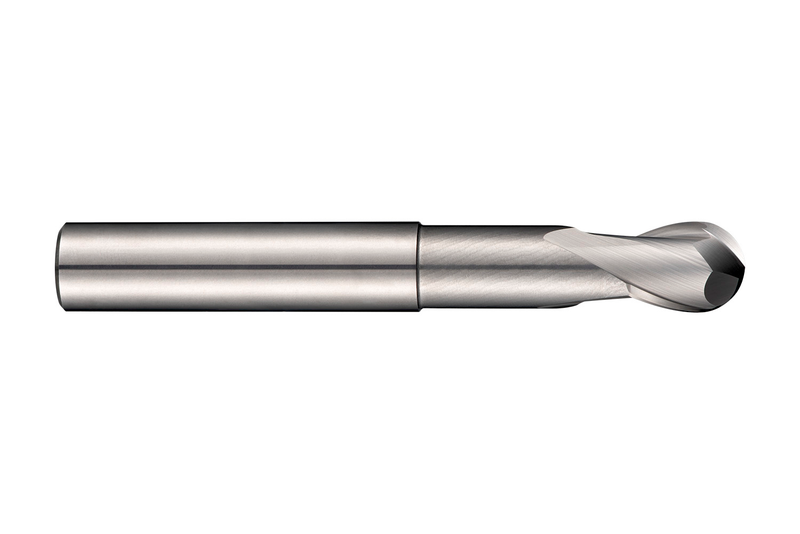

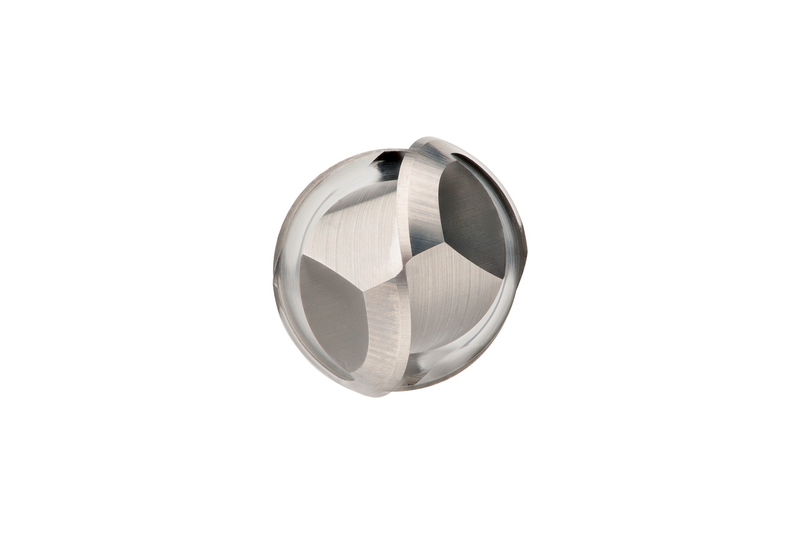

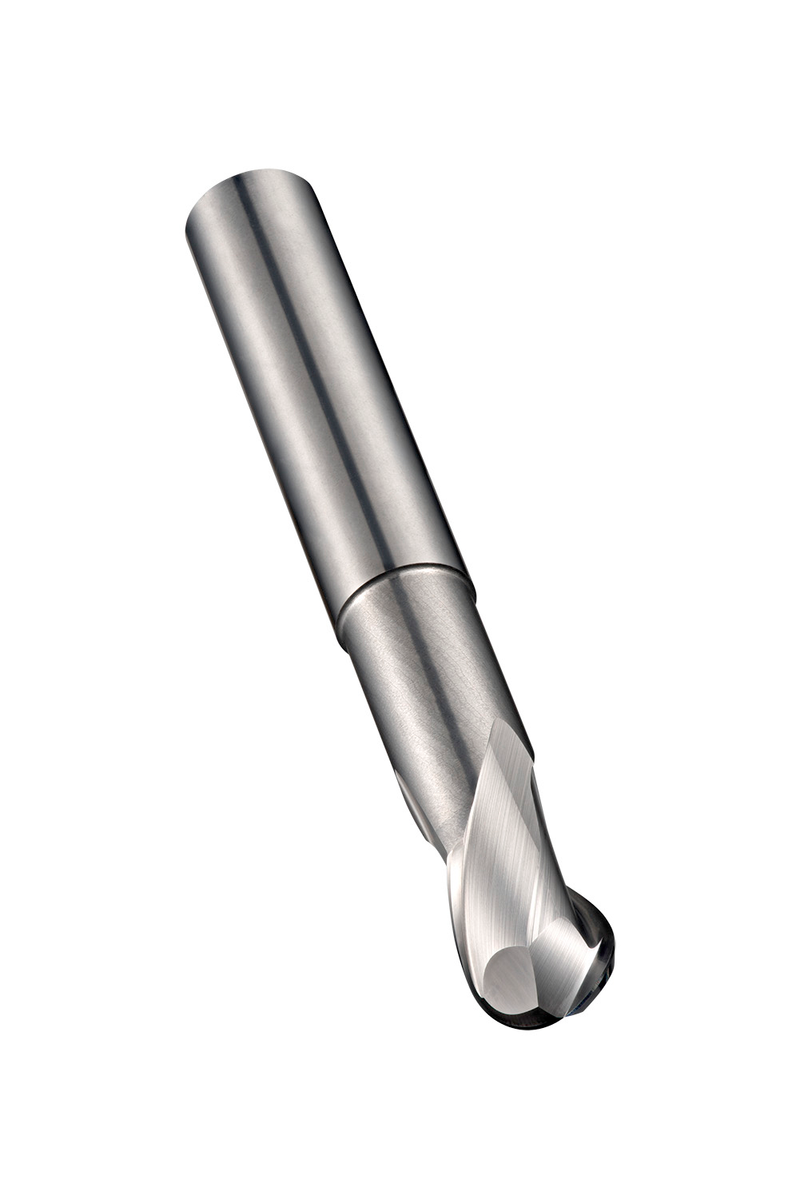

Fraise à rayonner (à bout sphérique) extra-courte à 2 dents, diamètre 10 mm, longueur de coupe 12 mm, longueur totale 75 mm, longueur utile 35 mm avec dégagement de col et rayon de profil complet de 5 mm, conforme à la norme DORMER avec une queue cylindrique de 10 mm, carbure monobloc avec finition polie, hélice à 30° et angle de coupe à 15° pour le fraisage en plongée dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S62910.0
GradeLumineux
Product Number6706535
Product FamilyS629

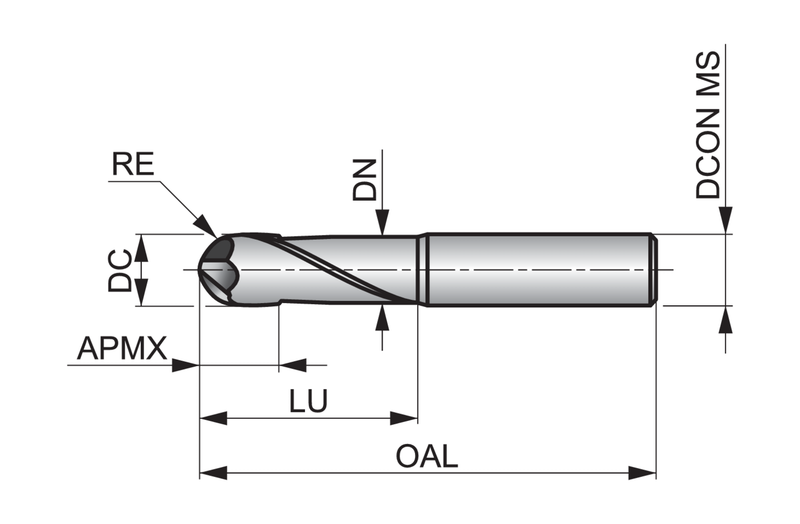

Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706535
EAN7320760680841
File Type Download
S62910.0 — Line Drawing PDF Download
