UGC DOR6706536
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$178.66 CAD - $178.66 CAD
$178.66 CAD
$178.66 CAD - $178.66 CAD
$178.66 CAD

Vendu en lots de : 1

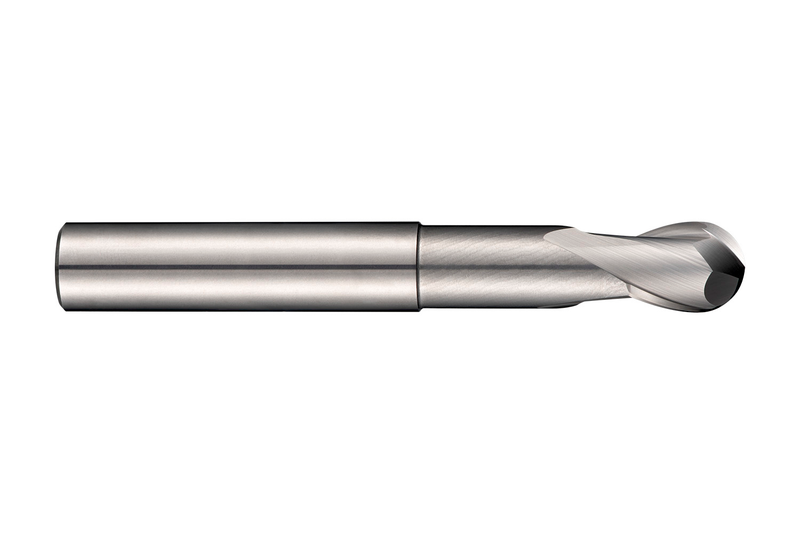

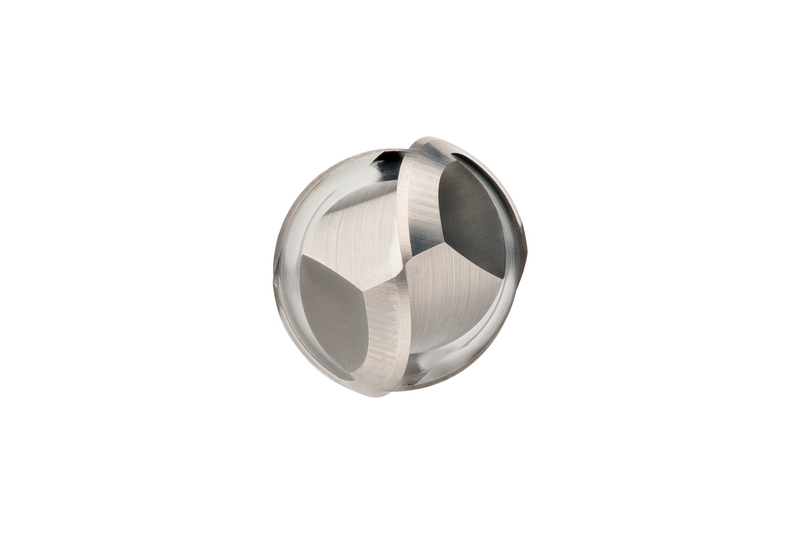

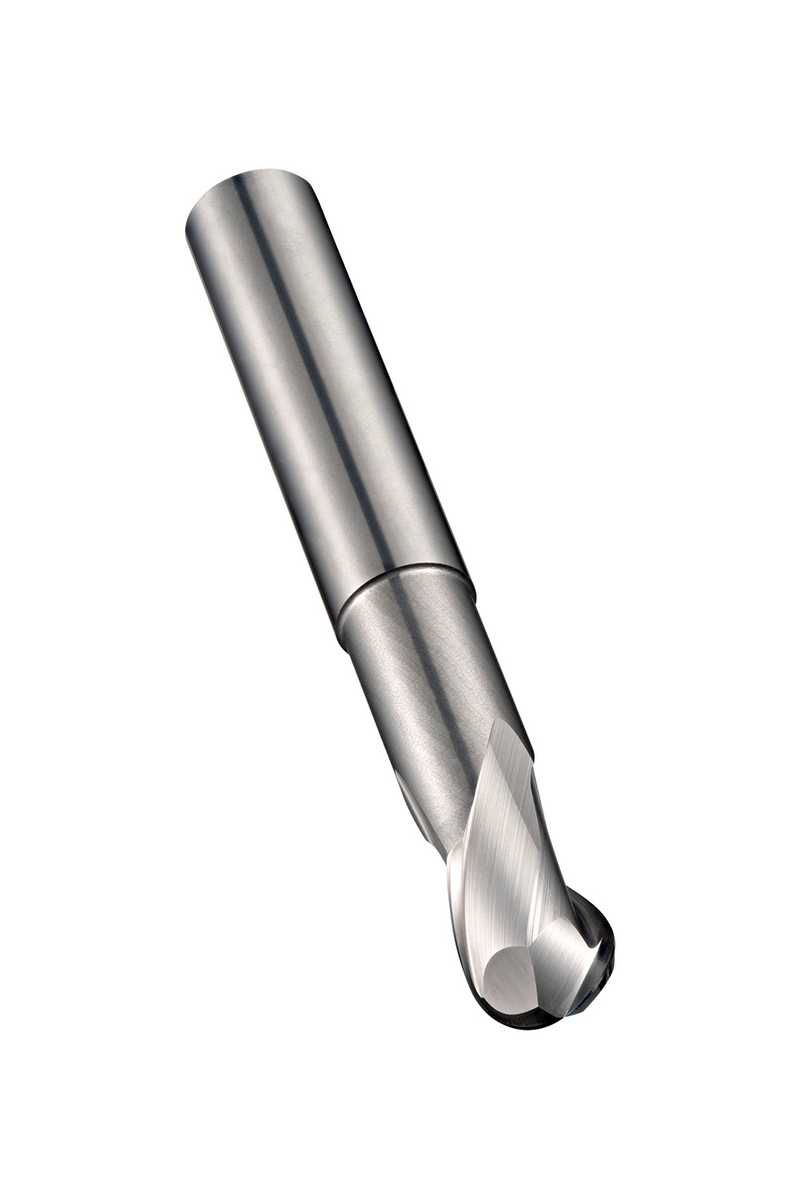

Fraise à l'extrémité sphérique extra courte à 2 dents, diamètre de 12 mm avec longueur de coupe de 14 mm, longueur totale de 75 mm, portée de 35 mm avec dégagement de col et rayon de profil complet de 6 mm, selon la norme DORMER avec une tige cylindrique de 12 mm, carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 15° pour le fraisage en copie dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S62912.0
GradeLumineux
Product Number6706536
Product FamilyS629

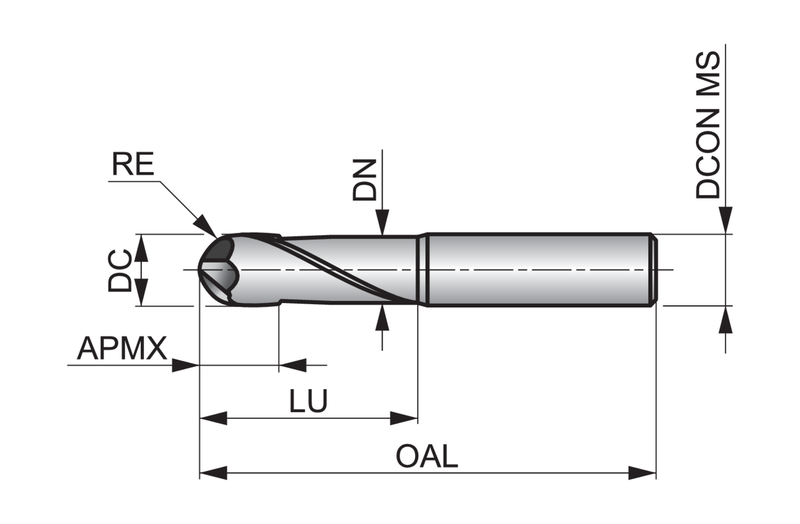

Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706536
EAN7320760680858
File Type Download
S62912.0 — Line Drawing PDF Download
