UGC DOR6706537
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.47 CAD - $295.47 CAD
$295.47 CAD
$295.47 CAD - $295.47 CAD
$295.47 CAD

Vendu en lots de : 1

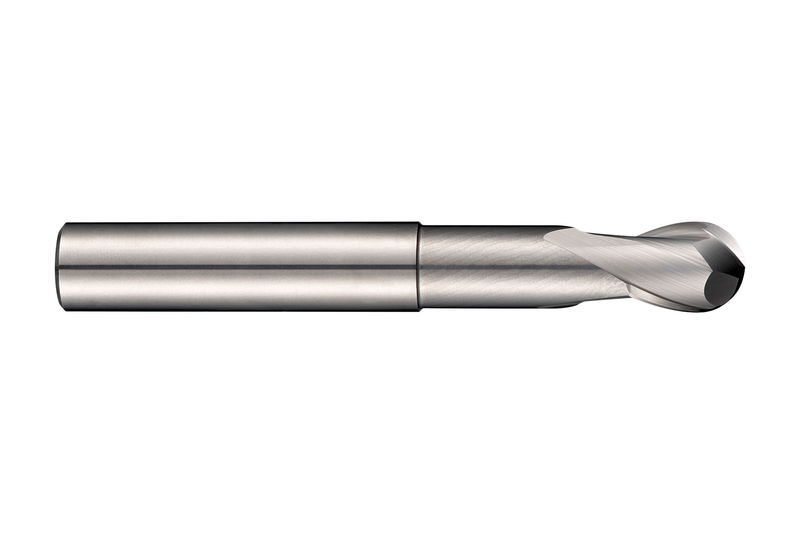

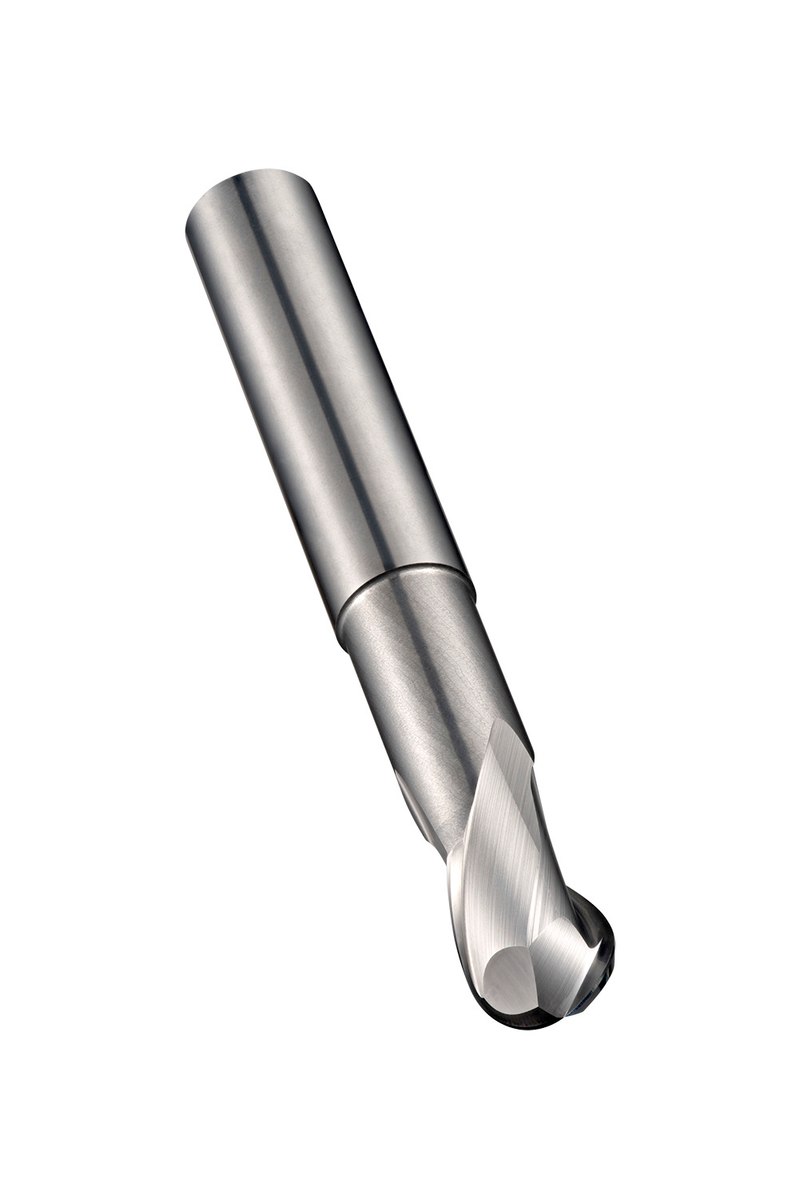

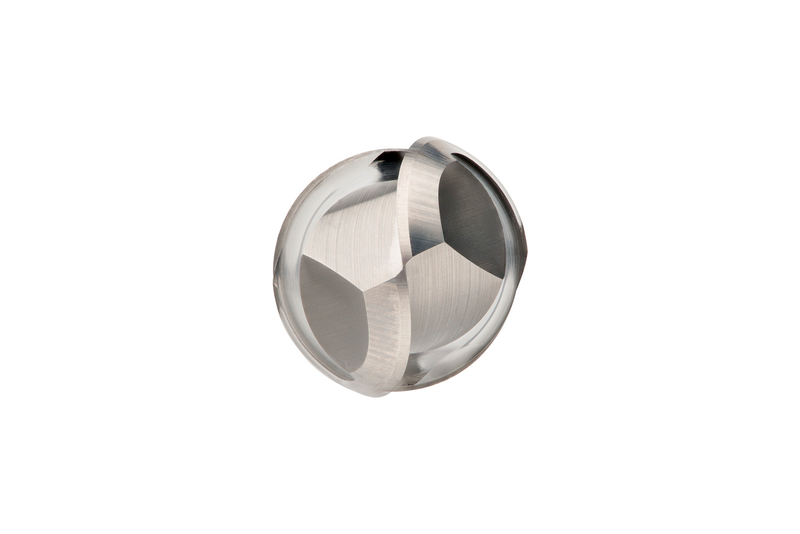

Fraise à l'extrémité sphérique extra-courte à 2 dents, diamètre 16 mm, longueur de coupe 18 mm, longueur totale 90 mm, portée 45 mm avec dégagement de col et rayon de profil complet de 8 mm, selon la norme DORMER avec une queue cylindrique de 16 mm, en carbure monobloc avec finition polie, hélice 30° et angle de dépouille 15° pour le fraisage en copie dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S62916.0
GradeLumineux
Product Number6706537
Product FamilyS629

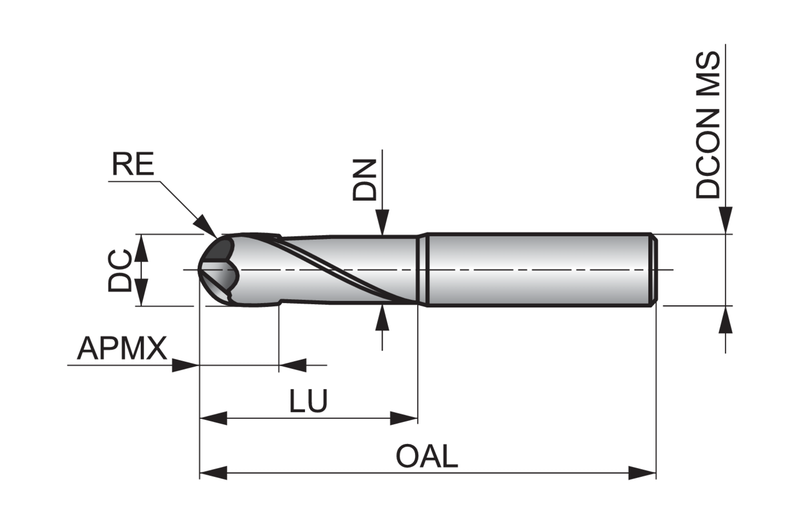

Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)0.7087"
Depth of Cut Max — mm (APMX)18.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706537
EAN7320760680865
File Type Download
S62916.0 — Line Drawing PDF Download
