UGC DOR6706538
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$455.10 CAD - $455.10 CAD
$455.10 CAD
$455.10 CAD - $455.10 CAD
$455.10 CAD

Vendu en lots de : 1

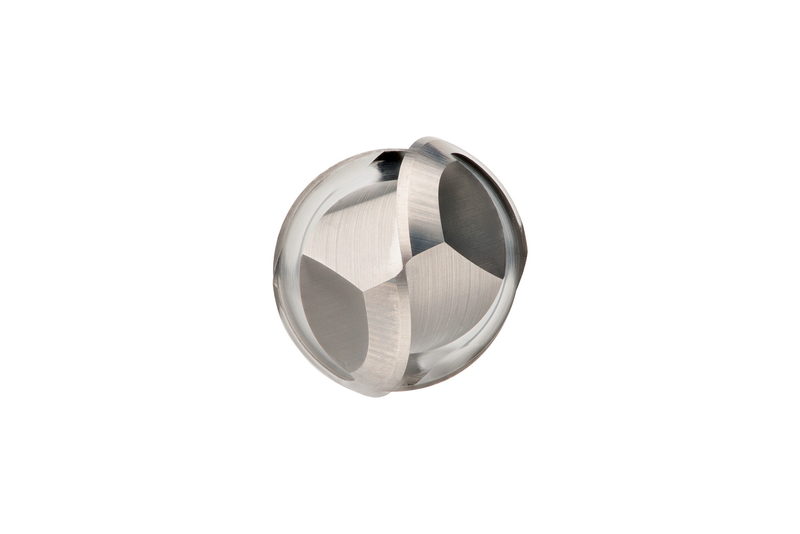

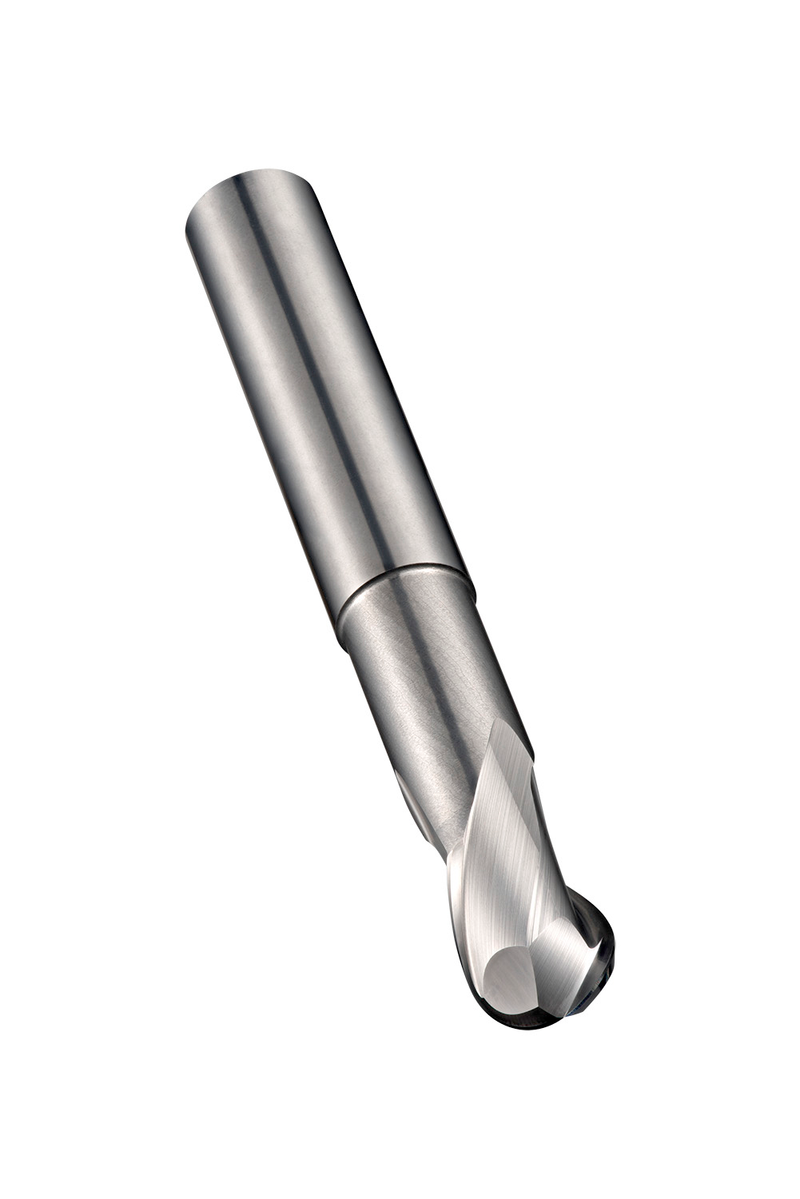

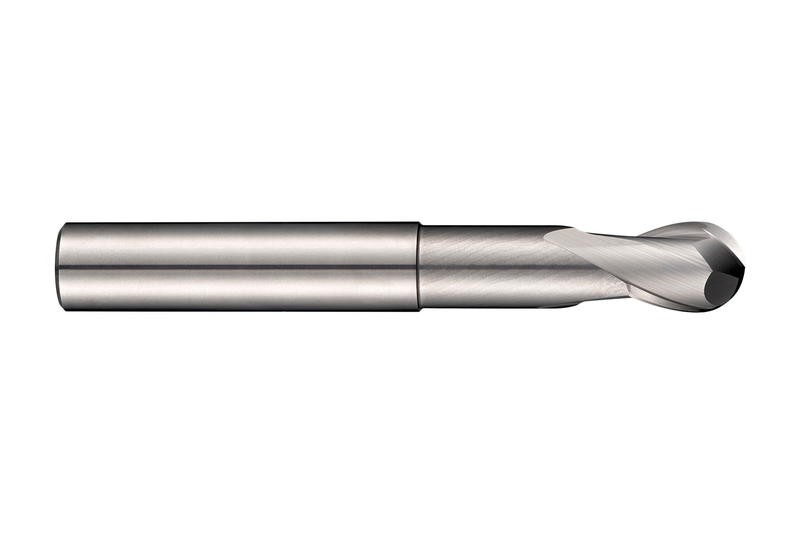

Fraise à l'extrémité sphérique extra-courte avec 2 coupes, diamètre 20mm avec une longueur de coupe de 22mm, longueur totale de 100mm, portée de 50mm avec dégagement de col et rayon de profil complet de 10mm, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec finition polie, hélice à 30° et angle de dépouille de 15° pour le fraisage par copiage dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S62920.0
GradeLumineux
Product Number6706538
Product FamilyS629

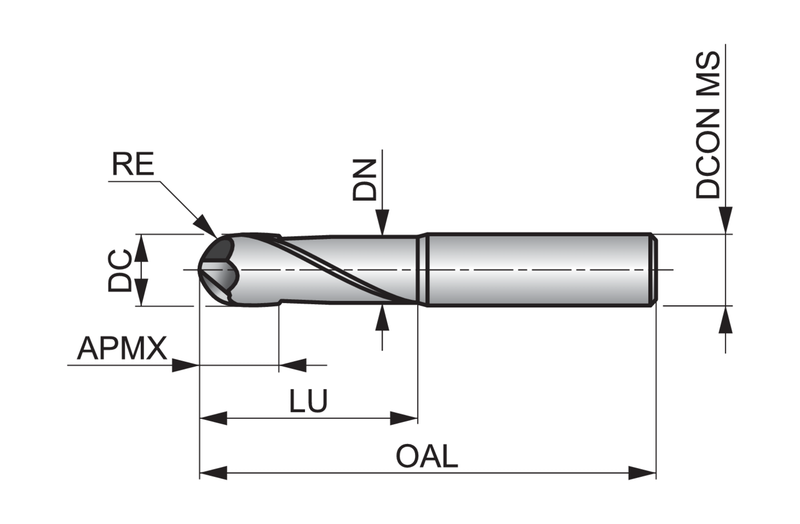

Insert Geometry
Corner Radius — in (RE)0.3937"
Corner Radius — mm (RE)10 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706538
EAN7320760680872
File Type Download
S62920.0 — Line Drawing PDF Download
