S5332.0XD6
S5332.0XD6
S5332.0XD6
S5332.0XD6

S5332.0XD6

UGC DOR6706540
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$98.84 CAD - $98.84 CAD
$98.84 CAD
$98.84 CAD - $98.84 CAD
$98.84 CAD

Vendu en lots de : 1

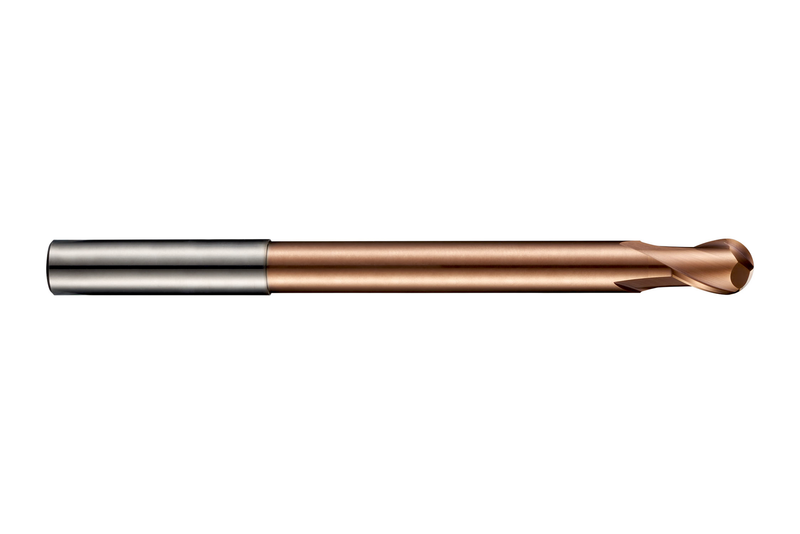

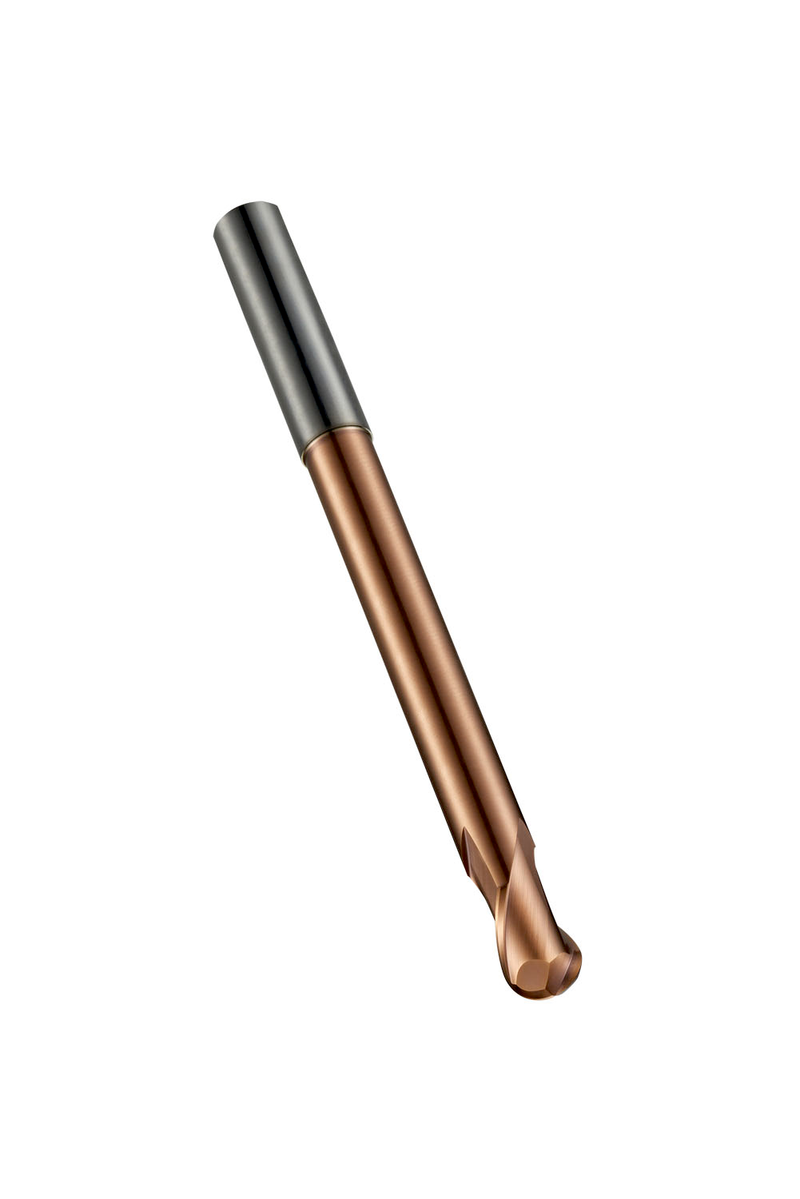

Fraise à rayonner nez sphérique extra-courte 2 dents, diamètre 2 mm avec une longueur de coupe de 4 mm, une longueur totale de 100 mm, un dégagement de 20 mm avec collet affûté et un rayon de profil complet de 1 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour la copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5332.0XD6
GradeTiSiN
Product Number6706540
Product FamilyS533
Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm

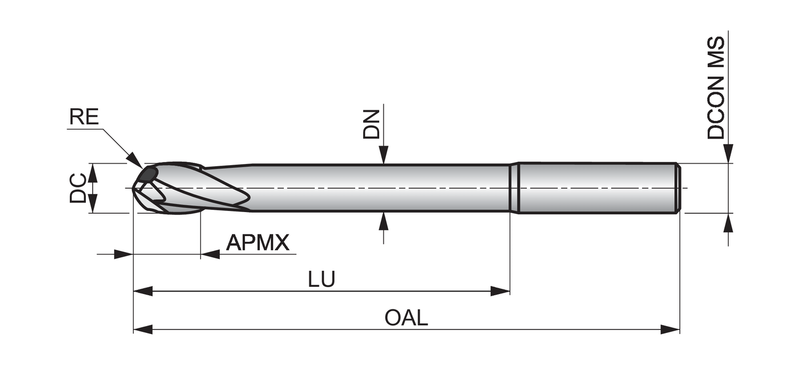

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706540
EAN7320760680896
File Type Download
S5332.0XD6 — Line Drawing PDF Download
