UGC DOR6706542
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$98.84 CAD - $98.84 CAD
$98.84 CAD
$98.84 CAD - $98.84 CAD
$98.84 CAD

Vendu en lots de : 1

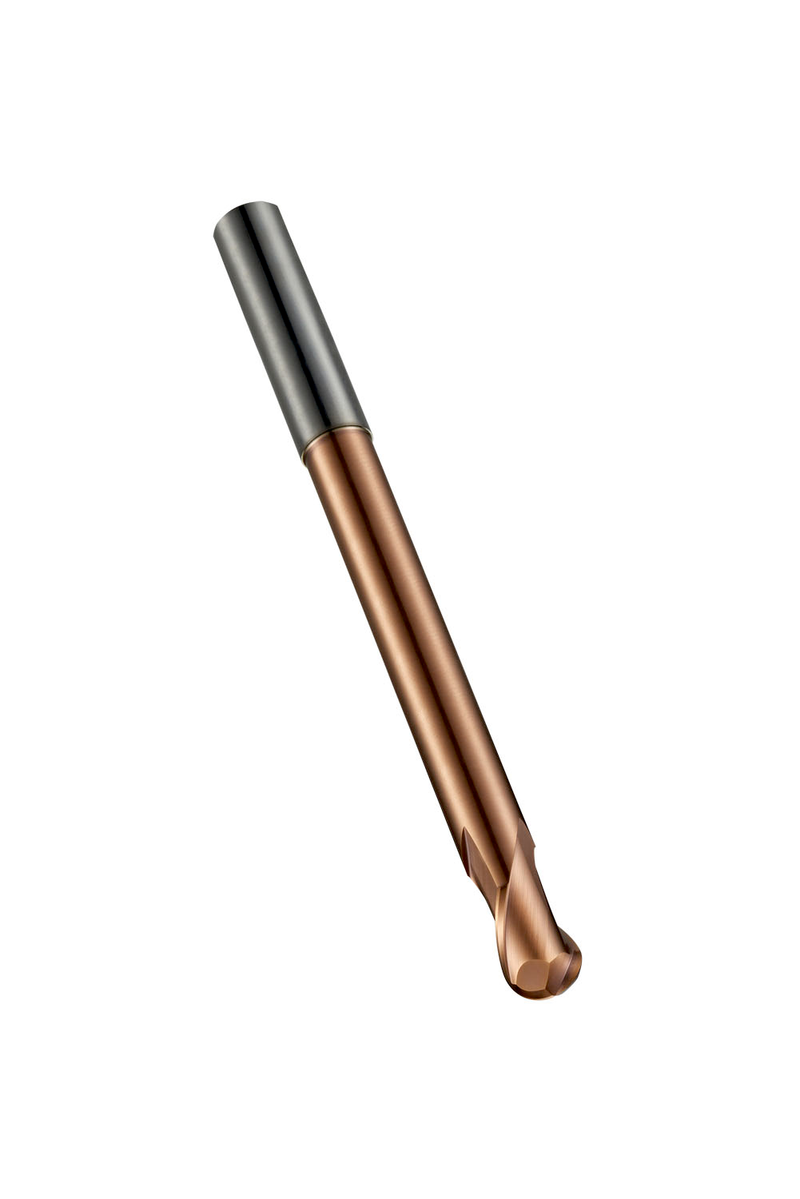

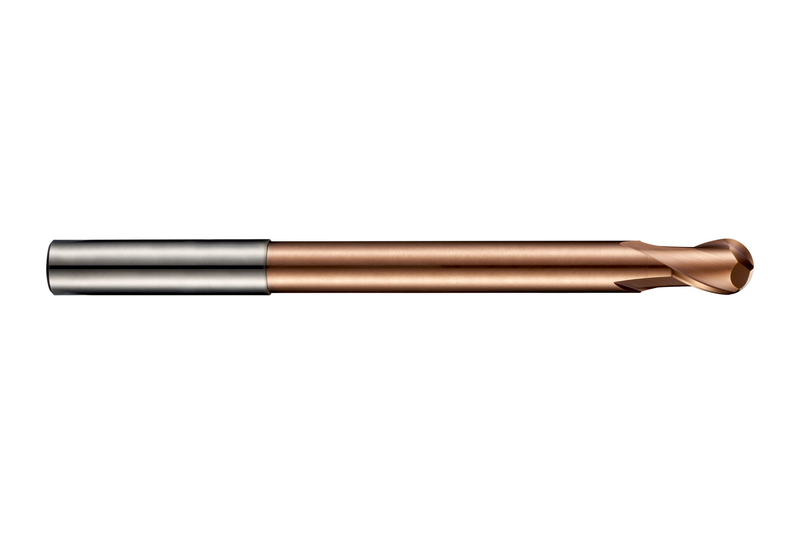

Fraise à l'extrémité sphérique extra courte à 2 dents, diamètre 3mm avec 5mm de longueur de coupe, 100mm de longueur totale, 30mm de portée avec dégagement et 1.5mm de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 6mm, carbure monobloc avec revêtement TiSiN, hélice à 30° et angle de dépouille de -10° pour le fraisage de copie dans les matériaux trempés

For more information about this product, click here

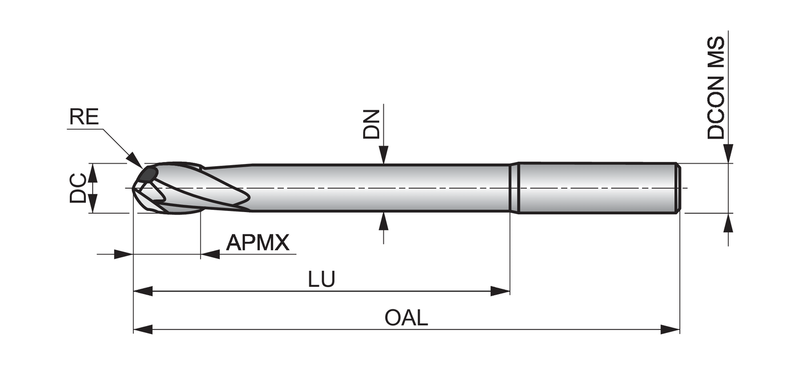

Identification
Ordering Code (ANSI/ISO)S5333.0XD6
GradeTiSiN
Product Number6706542
Product FamilyS533
Insert Geometry
Corner Radius — in (RE)0.0591"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706542
EAN7320760680919
File Type Download
S5333.0XD6 — Line Drawing PDF Download
