UGC DOR6706543
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.77 CAD - $106.77 CAD
$106.77 CAD
$106.77 CAD - $106.77 CAD
$106.77 CAD

Vendu en lots de : 1

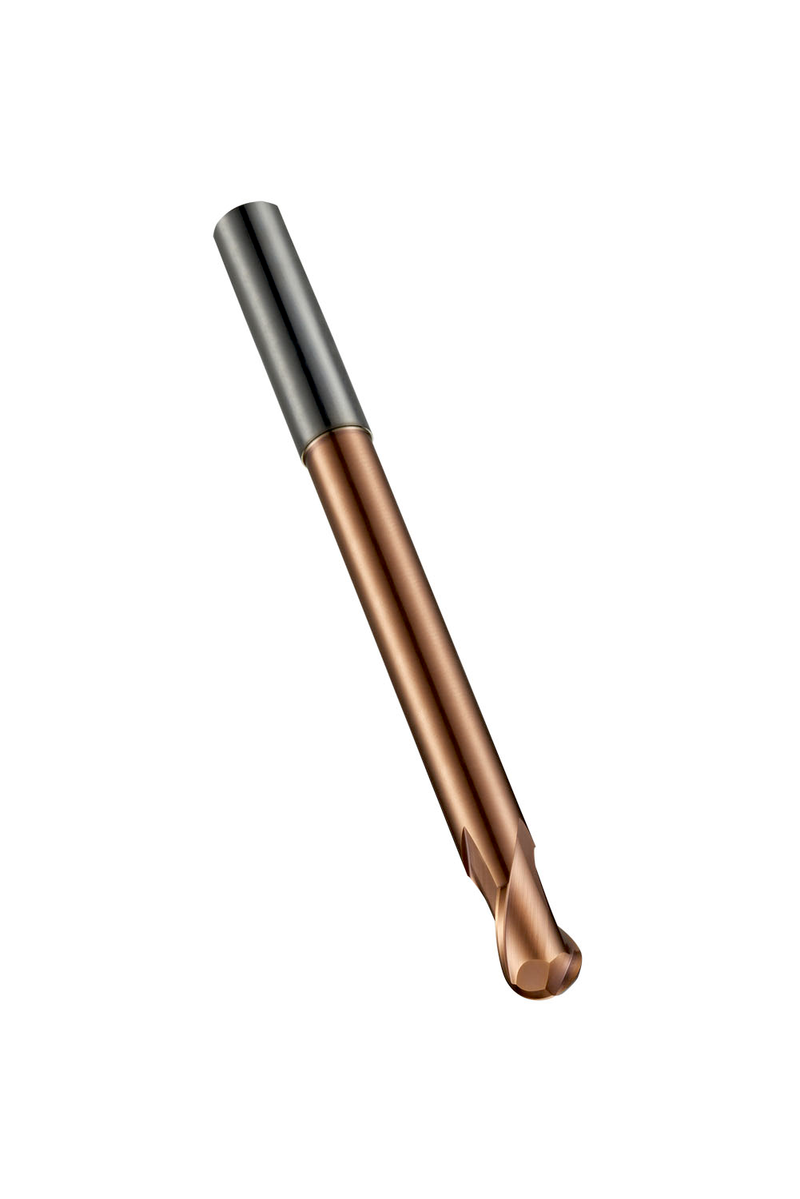

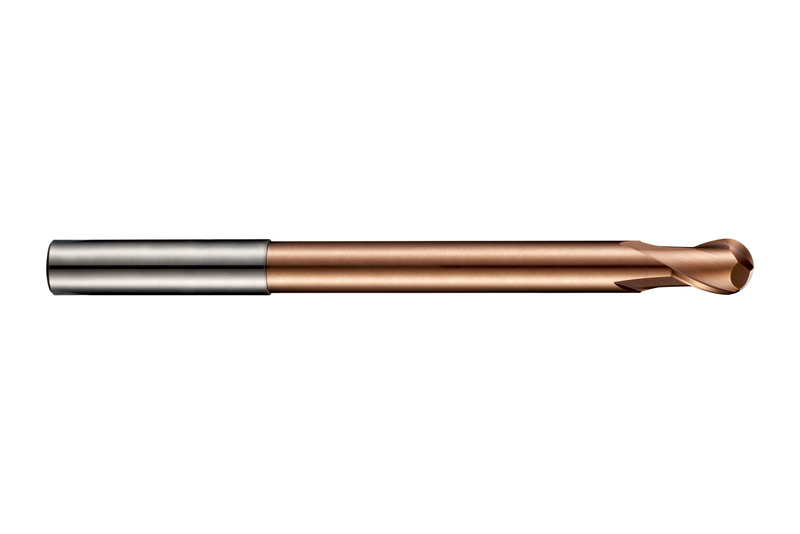

Fraise boule extra-courte à 2 dents, diamètre 4mm avec une longueur de coupe de 8mm, une longueur totale de 100mm, un dégagement de 40mm avec dégagement du col et un rayon de profil complet de 2mm, selon la norme DORMER avec une queue cylindrique de 4mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5334.0XD4
GradeTiSiN
Product Number6706543
Product FamilyS533

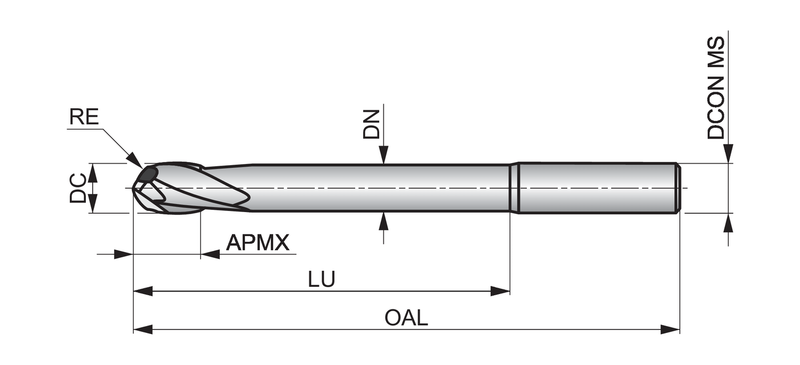

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706543
EAN7320760680926
File Type Download
S5334.0XD4 — Line Drawing PDF Download
