UGC DOR6706547
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.36 CAD - $108.36 CAD
$108.36 CAD
$108.36 CAD - $108.36 CAD
$108.36 CAD

Vendu en lots de : 1

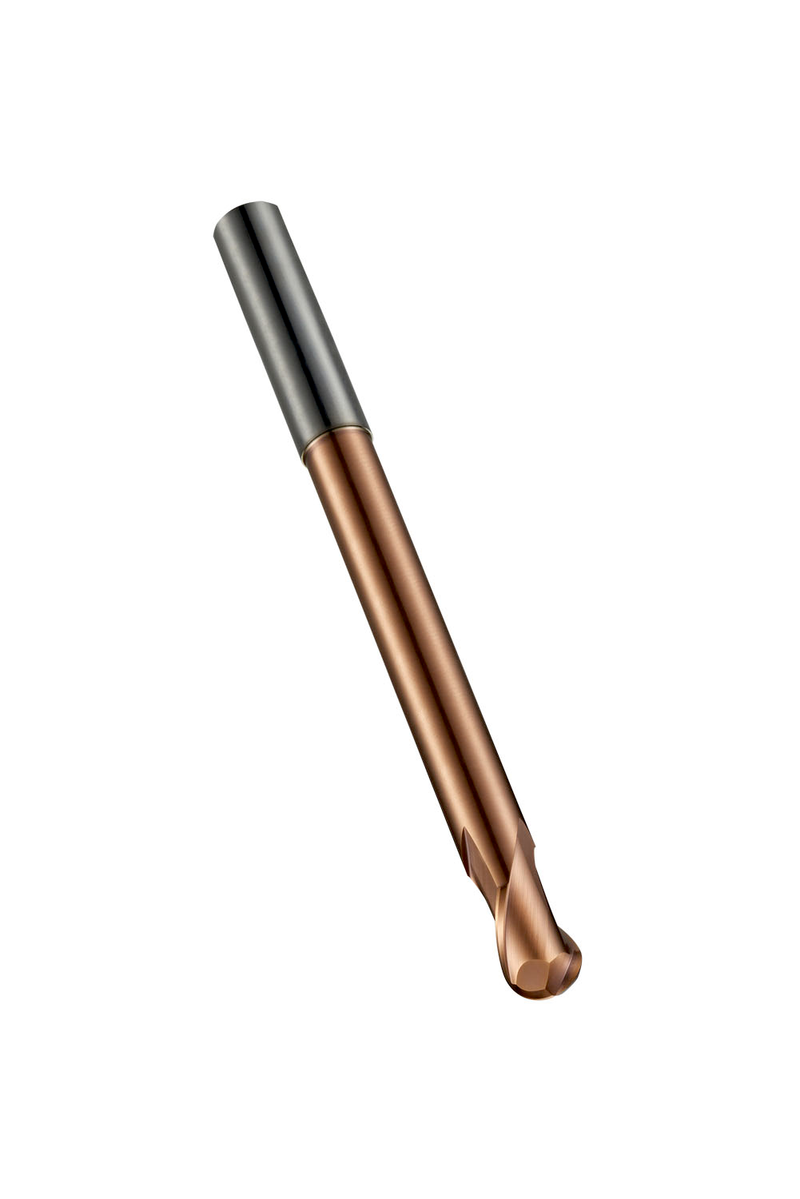

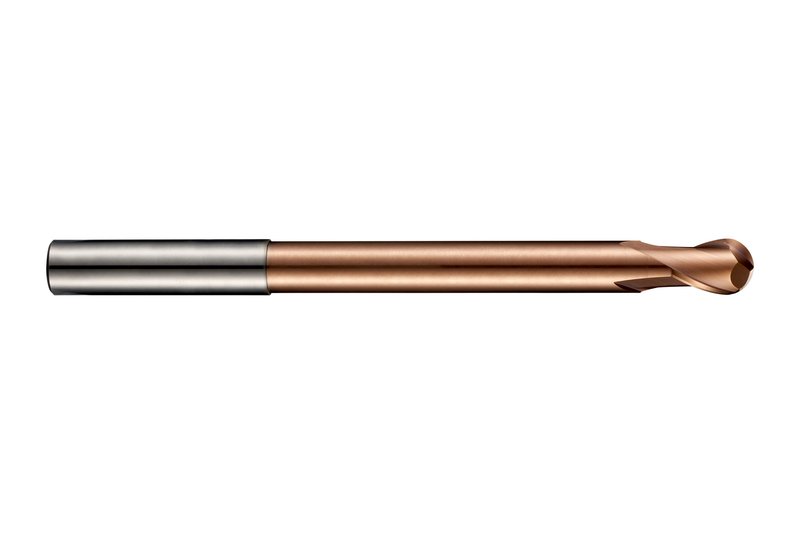

Fraise à rayonnement sphérique extra-courte 2 dents, diamètre 6 mm avec une longueur de coupe de 10 mm, une longueur totale de 100 mm, une portée de 60 mm avec dégagement de col et un rayon de profil complet de 3 mm, selon la norme DORMER avec un corps cylindrique de 6 mm, en carbure monobloc avec revêtement TiSiN, hélice à 30° et angle de dépouille de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5336.0
GradeTiSiN
Product Number6706547
Product FamilyS533

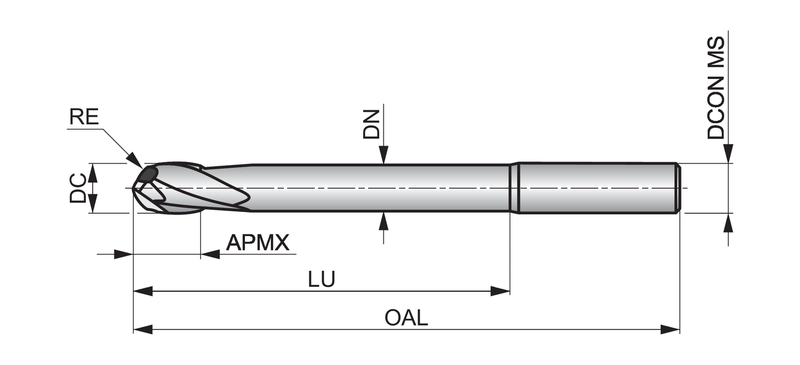

Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706547
EAN7320760680964
File Type Download
S5336.0 — Line Drawing PDF Download
