UGC DOR6706551
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$350.44 CAD - $350.44 CAD
$350.44 CAD
$350.44 CAD - $350.44 CAD
$350.44 CAD

Vendu en lots de : 1

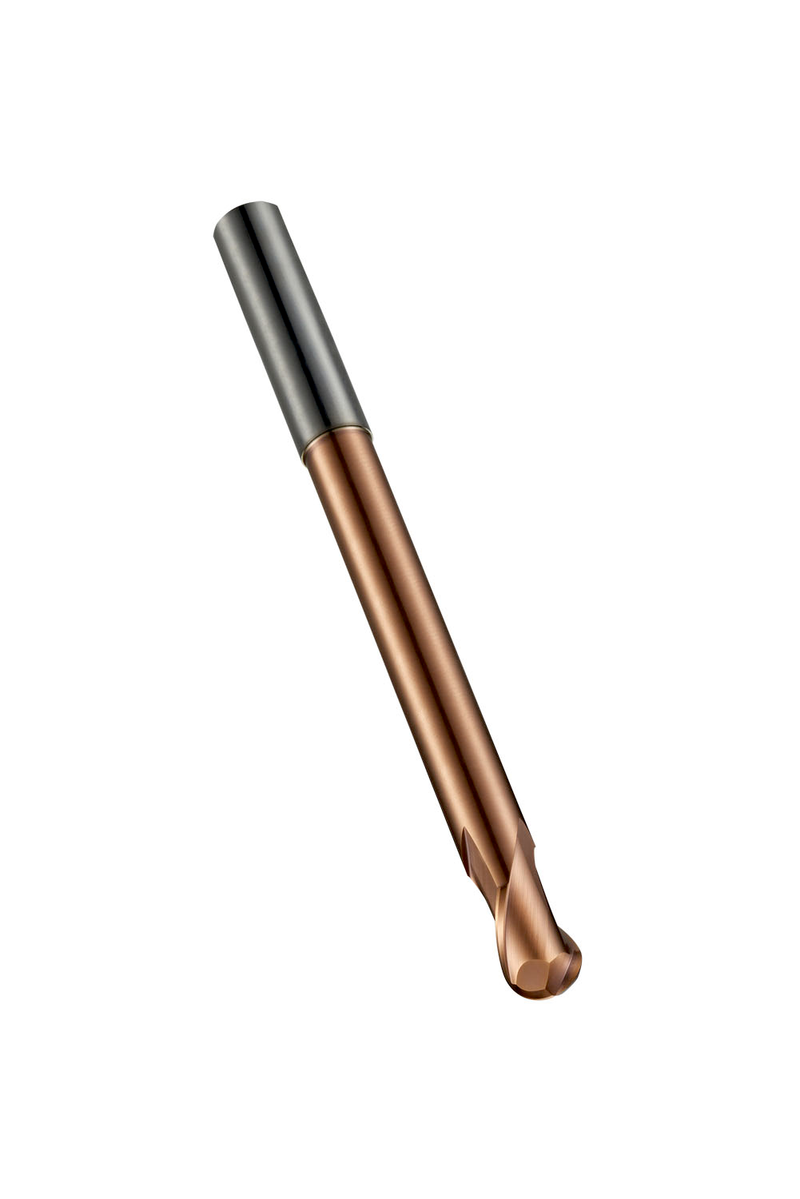

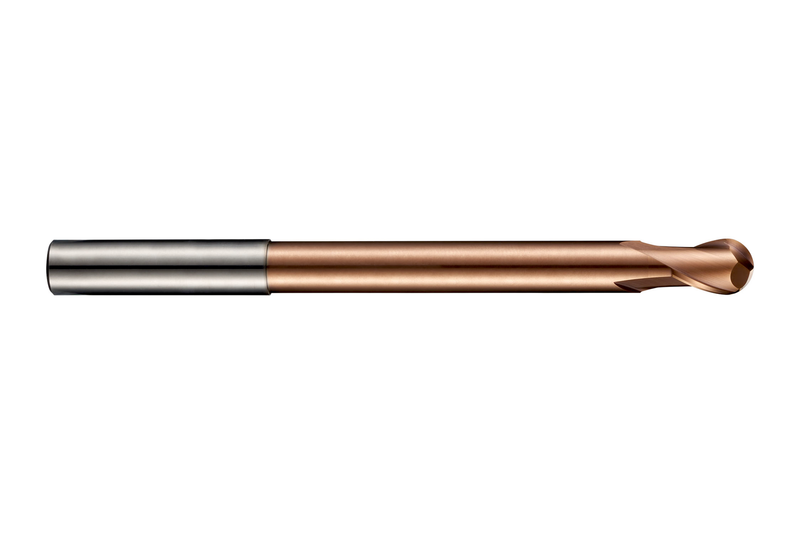

Fraise boule extra courte à 2 dents, diamètre 14 mm avec 32 mm de longueur de coupe, 150 mm de longueur totale, 110 mm de portée avec dégagement de col et rayon de profil complet de 7 mm, selon la norme DORMER avec une queue cylindrique de 14 mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53314.0
GradeTiSiN
Product Number6706551
Product FamilyS533
Insert Geometry
Corner Radius — in (RE)0.2756"
Corner Radius — mm (RE)7 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)110.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706551
EAN7320760681008
File Type Download

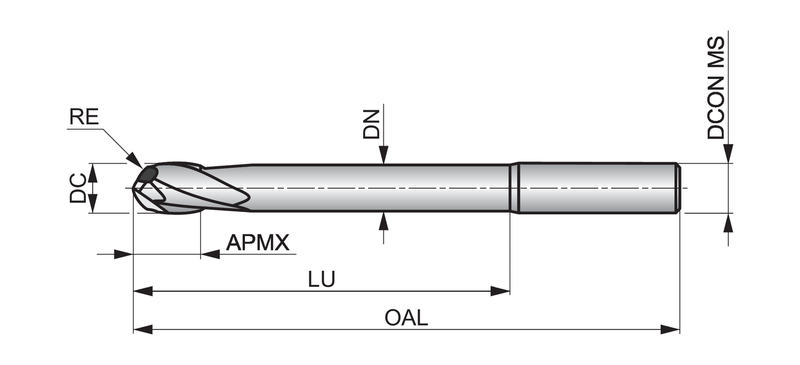

S53314.0 — Line Drawing PDF Download
