S2334.0XD4
S2334.0XD4
S2334.0XD4
S2334.0XD4

S2334.0XD4

UGC DOR6706557
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.01 CAD - $102.01 CAD
$102.01 CAD
$102.01 CAD - $102.01 CAD
$102.01 CAD

Vendu en lots de : 1

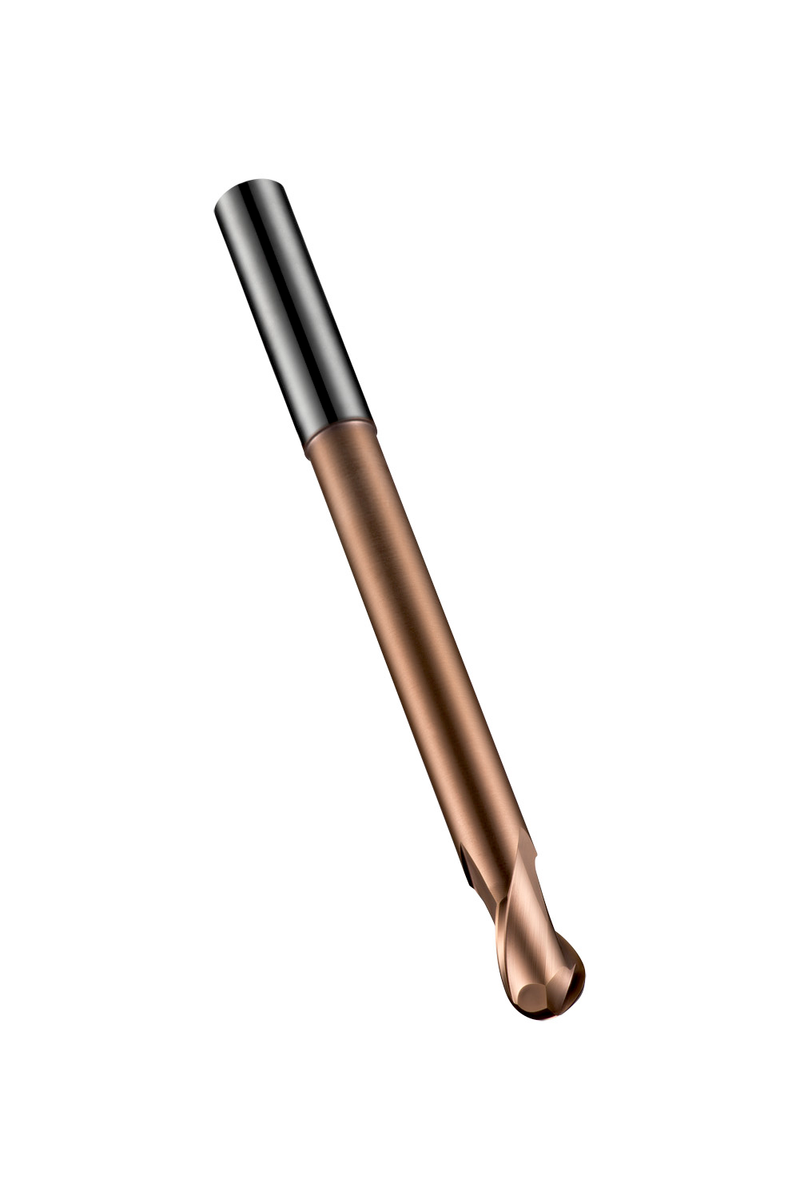

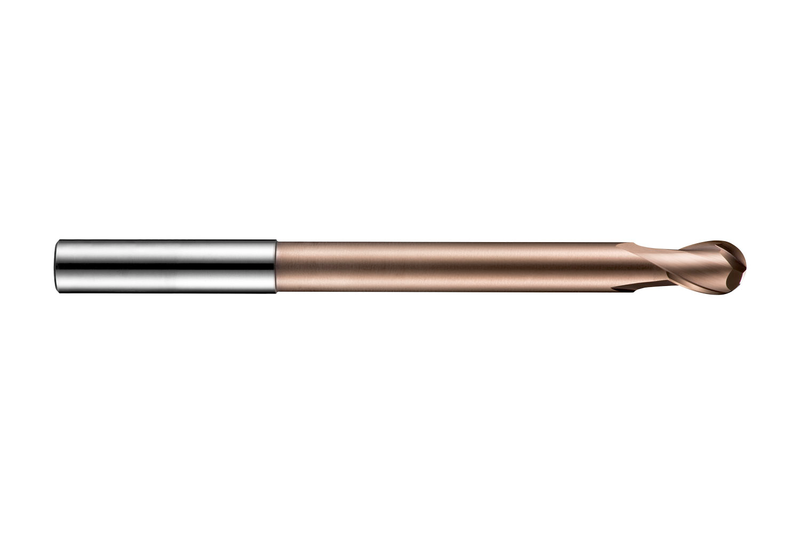

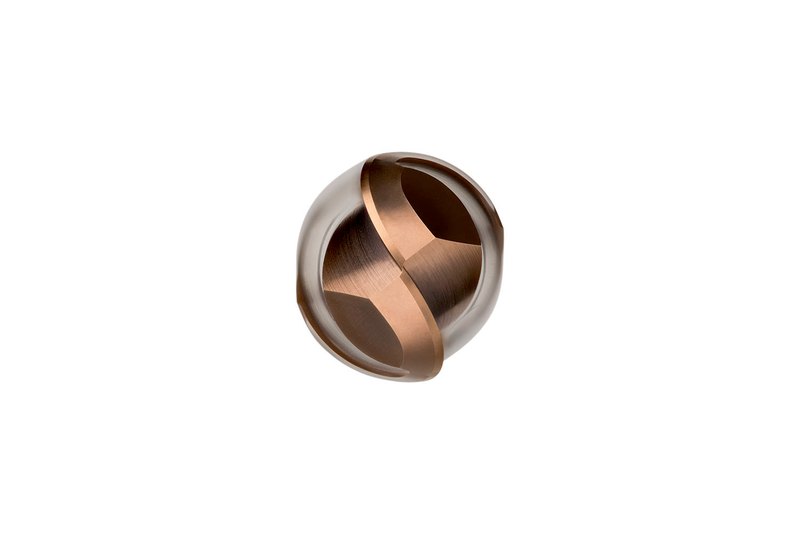

Fraise à l'extrémité sphérique extra courte à 2 dents, diamètre 4mm, longueur de coupe 8mm, longueur totale 100mm, portée de 40mm avec dégagement de col et rayon de profil complet de 2mm, selon la norme DORMER avec une queue cylindrique de 4mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de coupe de 3° pour la copie de fraisage dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2334.0XD4
GradeTiSiN
Product Number6706557
Product FamilyS233

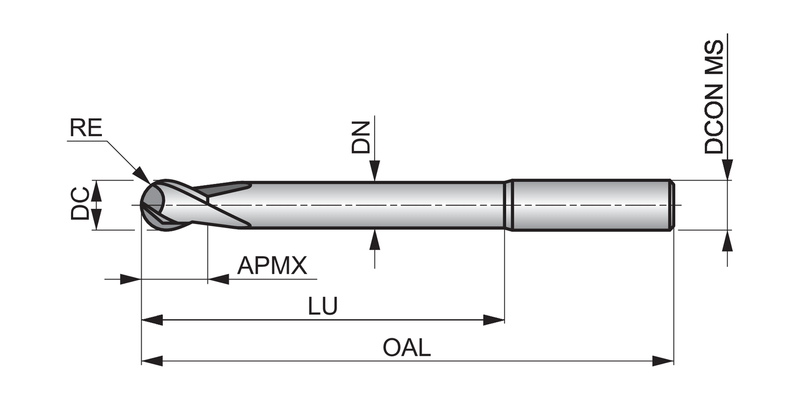

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706557
EAN7320760681060
File Type Download
S2334.0XD4 — Line Drawing PDF Download
