S2334.0XD6
S2334.0XD6
S2334.0XD6
S2334.0XD6

S2334.0XD6

UGC DOR6706558
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.01 CAD - $102.01 CAD
$102.01 CAD
$102.01 CAD - $102.01 CAD
$102.01 CAD

Vendu en lots de : 1

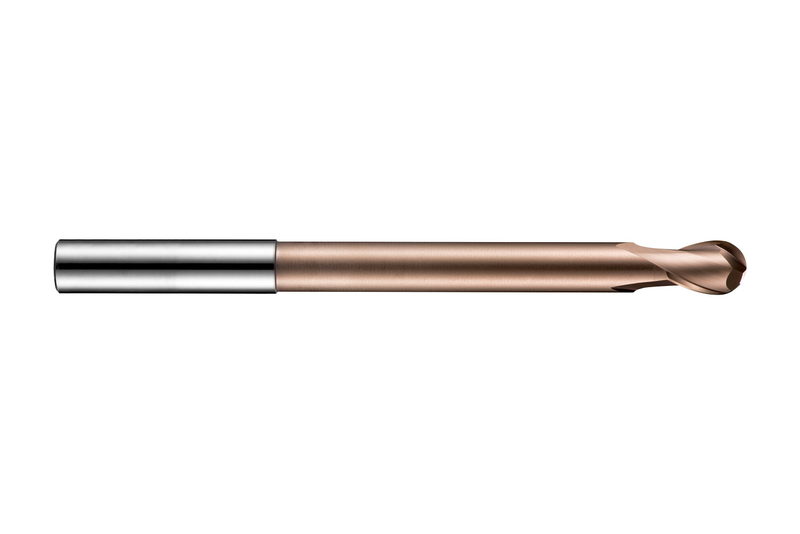

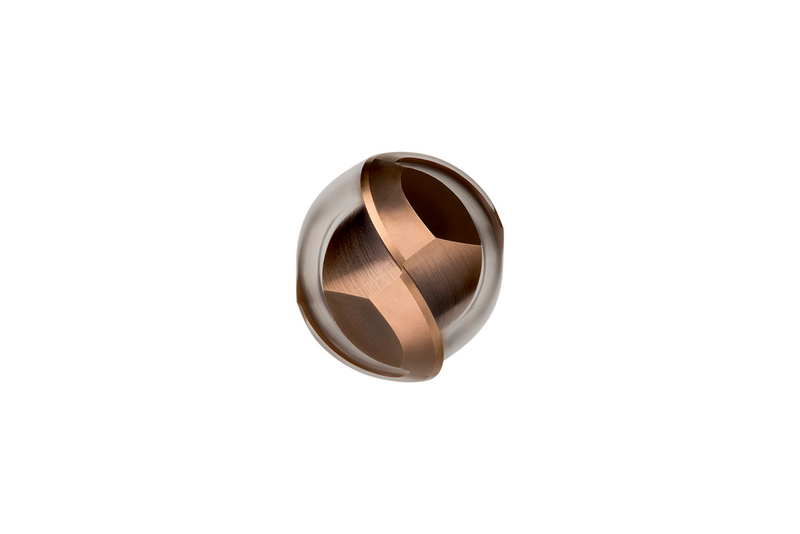

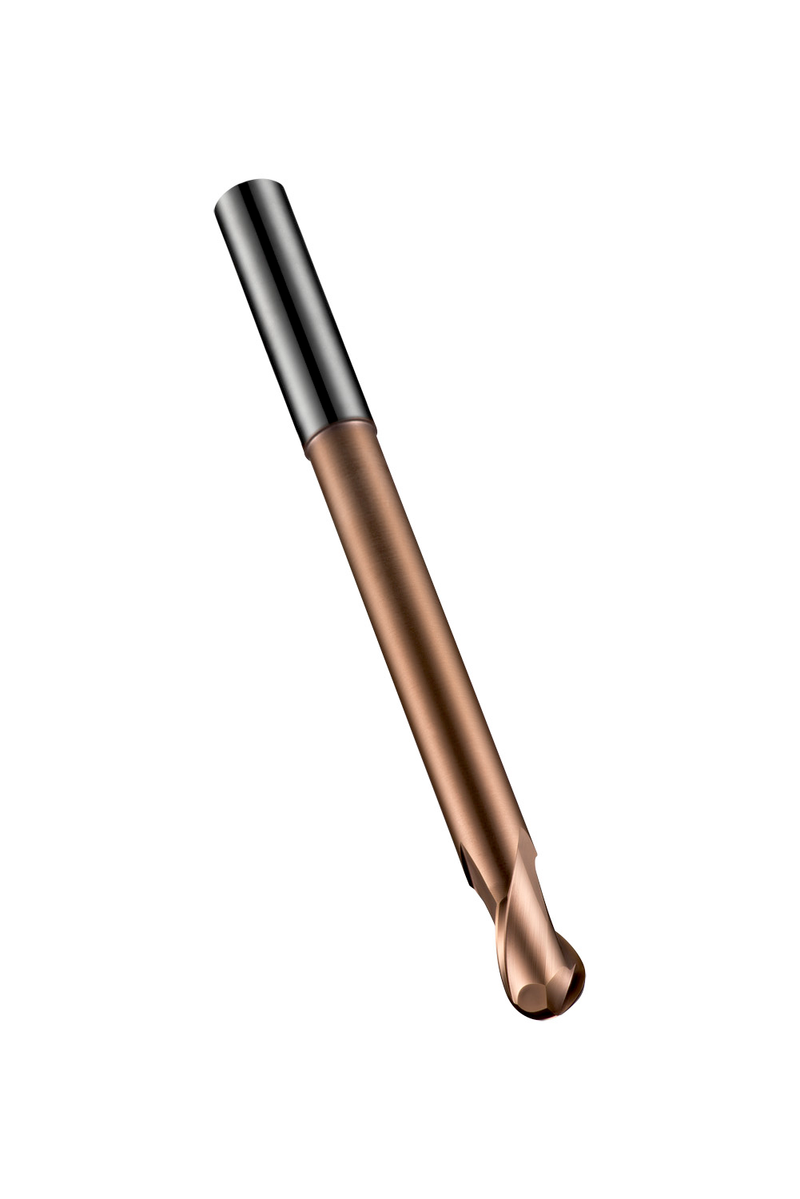

Fraise boule extra-courte à 2 dents, diamètre 4mm, longueur de coupe 8mm, longueur totale 100mm, portée de 40mm avec dégagement et rayon de profil complet de 2mm, conforme à la norme DORMER, avec queue lisse de 6mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de 3° pour la copie dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2334.0XD6
GradeTiSiN
Product Number6706558
Product FamilyS233

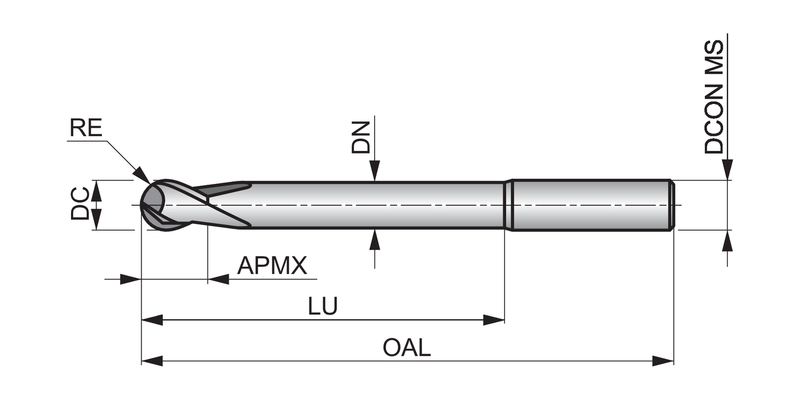

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706558
EAN7320760681077
File Type Download
S2334.0XD6 — Line Drawing PDF Download
