UGC DOR6706562
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$193.46 CAD - $193.46 CAD
$193.46 CAD
$193.46 CAD - $193.46 CAD
$193.46 CAD

Vendu en lots de : 1

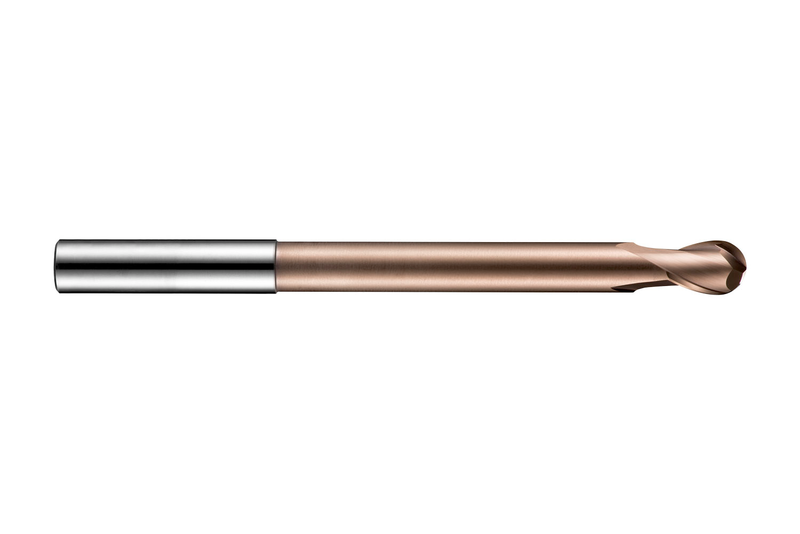

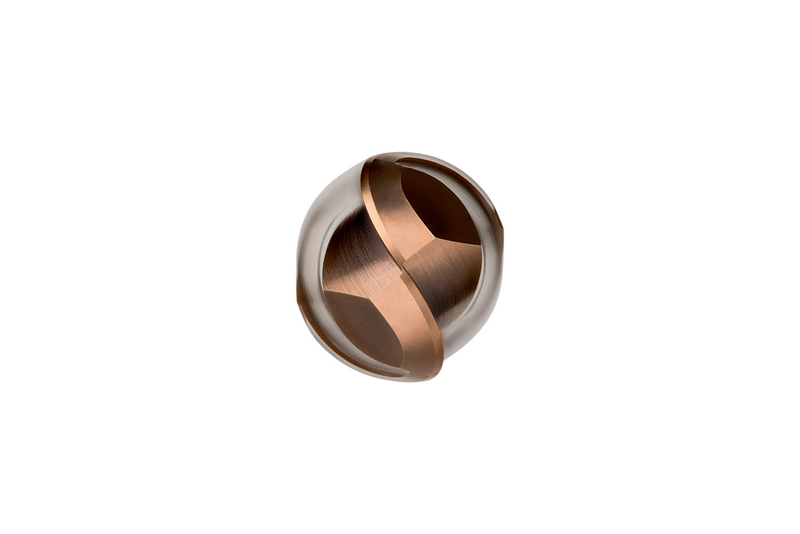

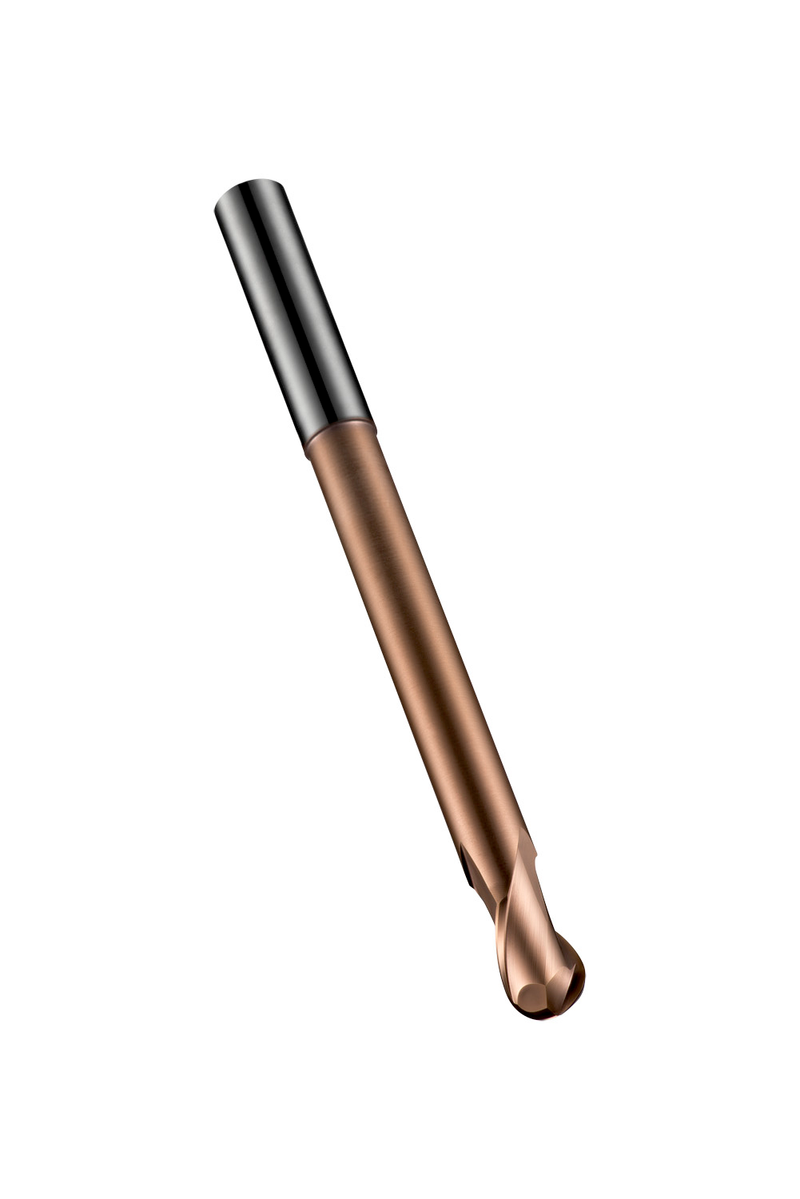

Fraise à l'hélice très courte à bout sphérique, 2 dents, diamètre 10 mm, longueur de coupe 14 mm, longueur totale 125 mm, portée 85 mm avec dégagement de col et rayon de profil complet 5 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, carbure monobloc avec revêtement TiSiN, hélice à 30° et angle de dépouille à 3° pour le fraisage en copie dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S23310.0
GradeTiSiN
Product Number6706562
Product FamilyS233

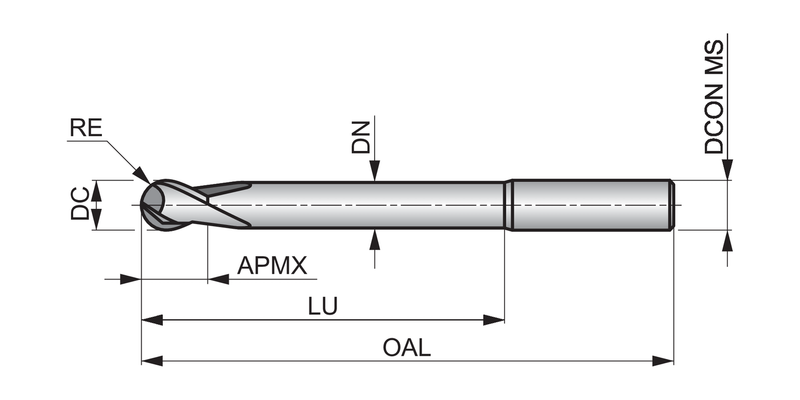

Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706562
EAN7320760681114
File Type Download
S23310.0 — Line Drawing PDF Download
