UGC DOR6706568
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.90 CAD - $99.90 CAD
$99.90 CAD
$99.90 CAD - $99.90 CAD
$99.90 CAD

Vendu en lots de : 1

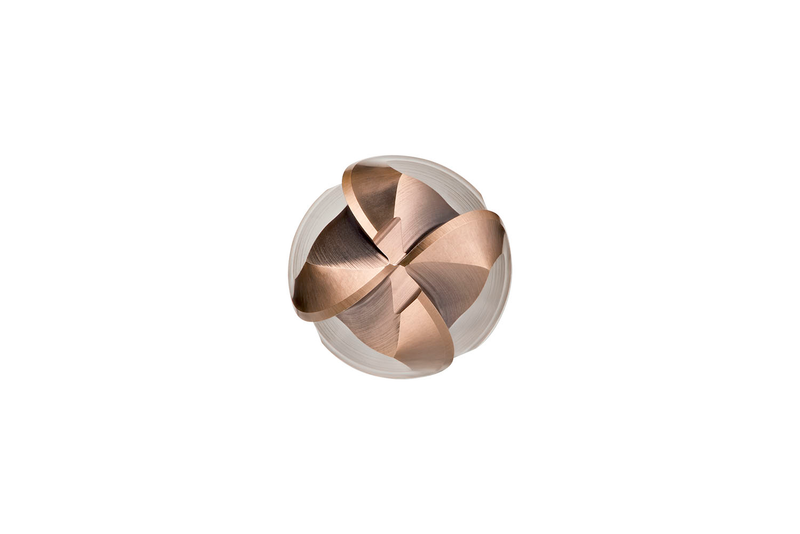

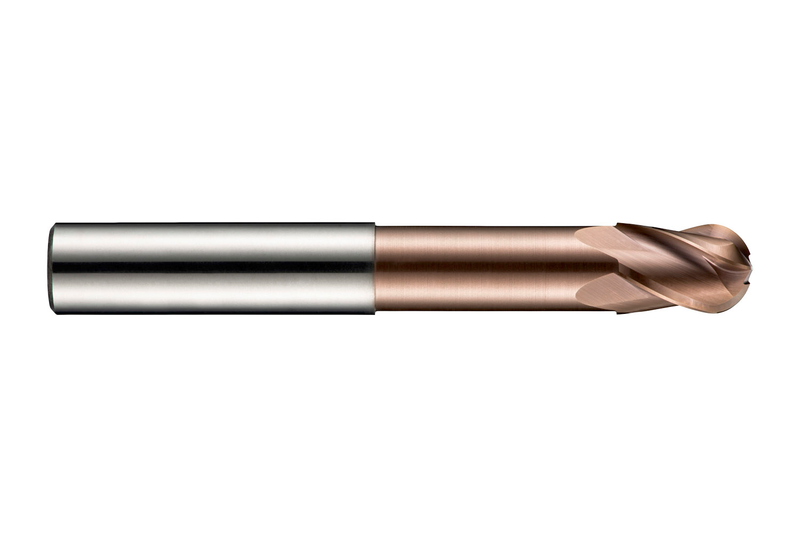

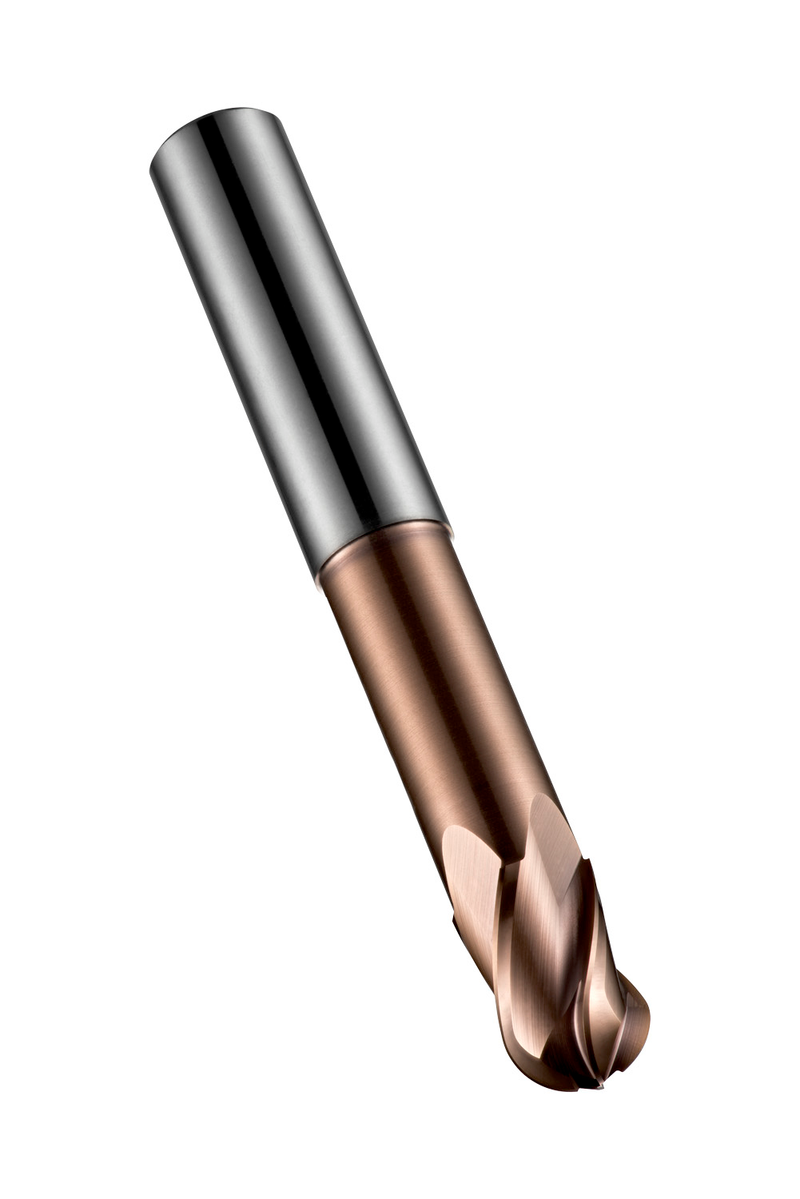

Fraise à l'hélice à bout sphérique série extra courte à 4 dents, diamètre 5mm, longueur de coupe 9mm, longueur totale 75mm, portée 32mm avec dégagement et rayon de profil complet 2.5mm, selon la norme DORMER avec une queue cylindrique 6mm, carbure monobloc avec revêtement TiSiN, hélice 30° et angle de dépouille -10° pour le fraisage en plongée dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5355.0
GradeTiSiN
Product Number6706568
Product FamilyS535

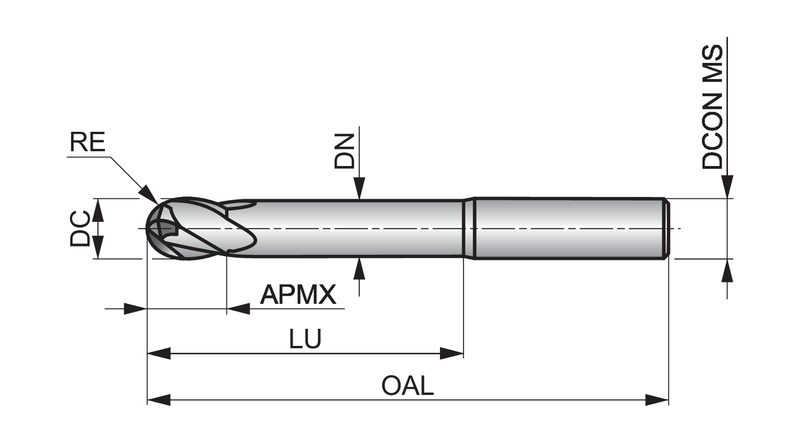

Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706568
EAN7320760681176
File Type Download
S5355.0 — Line Drawing PDF Download
