UGC DOR6706570
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.07 CAD - $140.07 CAD
$140.07 CAD
$140.07 CAD - $140.07 CAD
$140.07 CAD

Vendu en lots de : 1

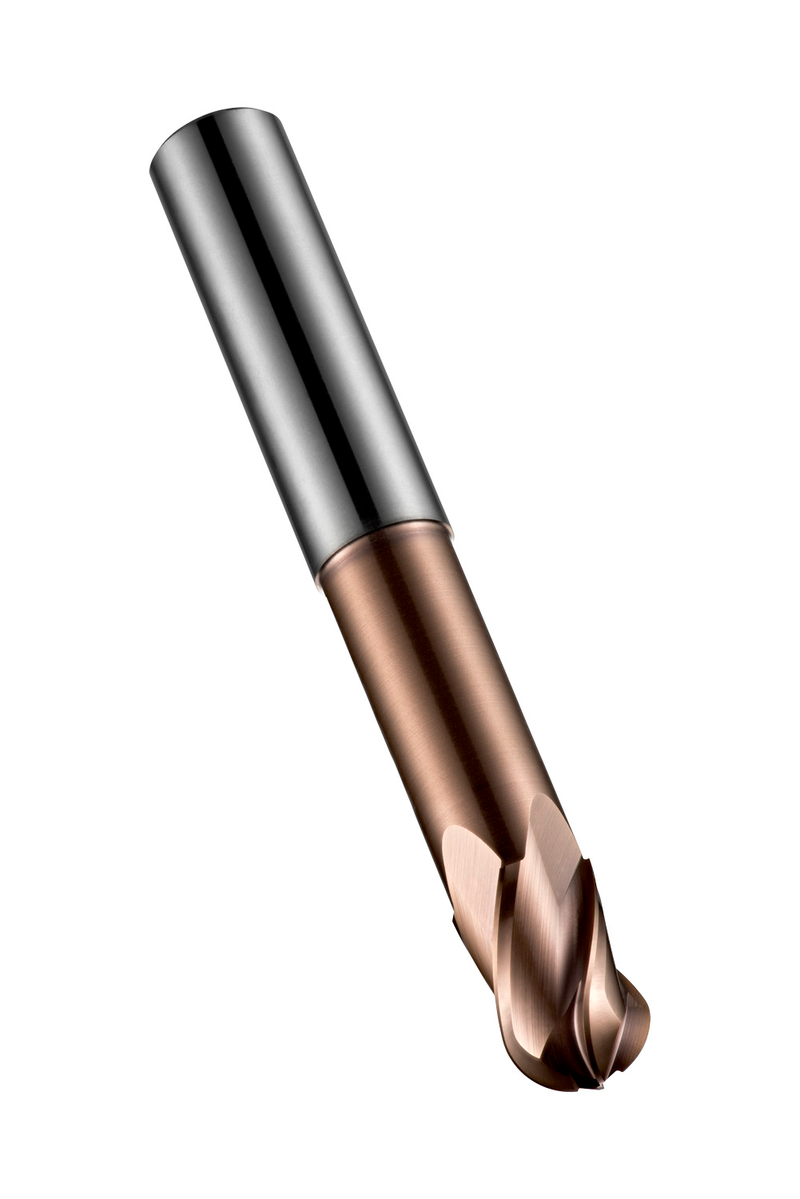

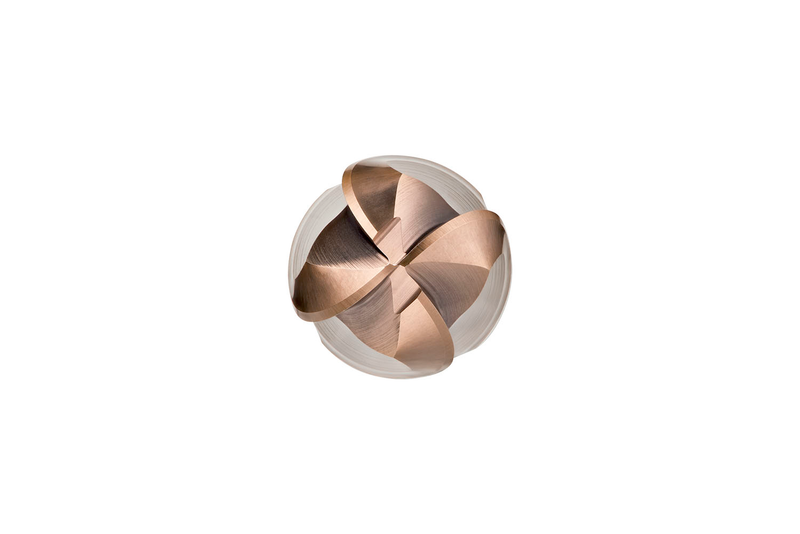

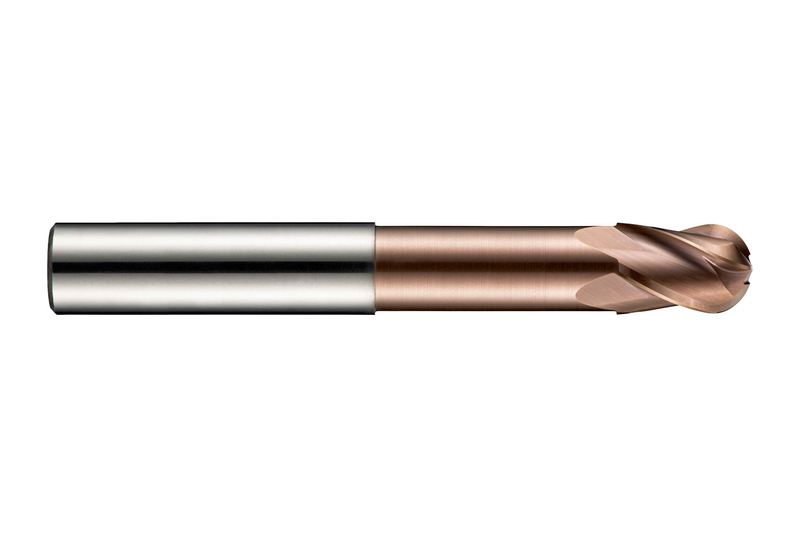

Fraise à lamer à bout sphérique série extra courte, 4 dents, diamètre 8mm avec une longueur de coupe de 12mm, longueur totale de 75mm, portée de 40mm avec dégagement de col et rayon de profil complet de 4mm, selon la norme DORMER avec une queue cylindrique de 8mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de coupe de -10° pour le fraisage en plongée dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5358.0
GradeTiSiN
Product Number6706570
Product FamilyS535

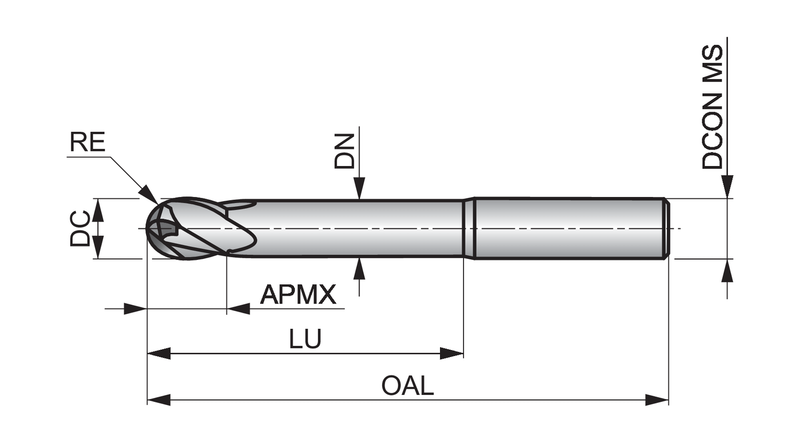

Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706570
EAN7320760681190
File Type Download
S5358.0 — Line Drawing PDF Download
