S53514.0
S53514.0
S53514.0
S53514.0

S53514.0

UGC DOR6706573
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$318.73 CAD - $318.73 CAD
$318.73 CAD
$318.73 CAD - $318.73 CAD
$318.73 CAD

Vendu en lots de : 1

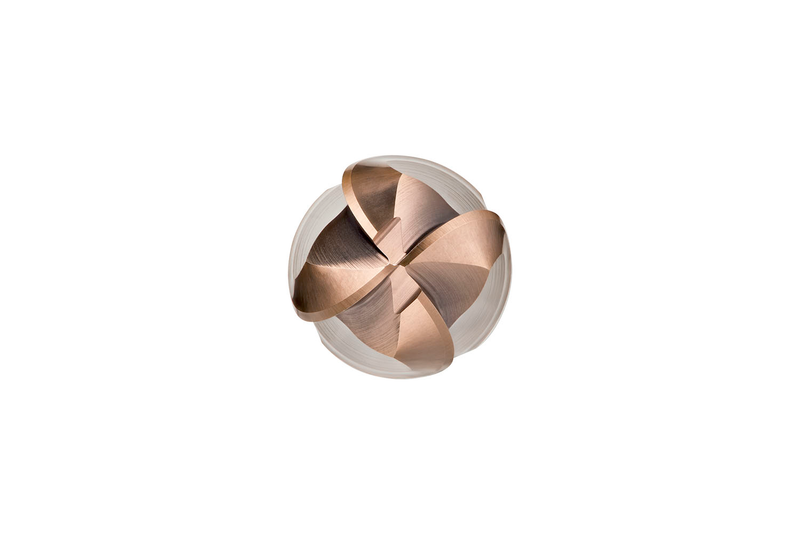

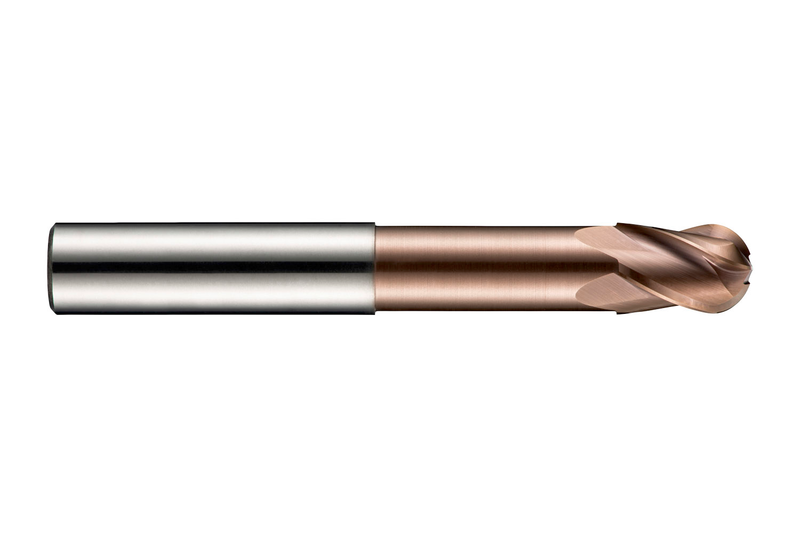

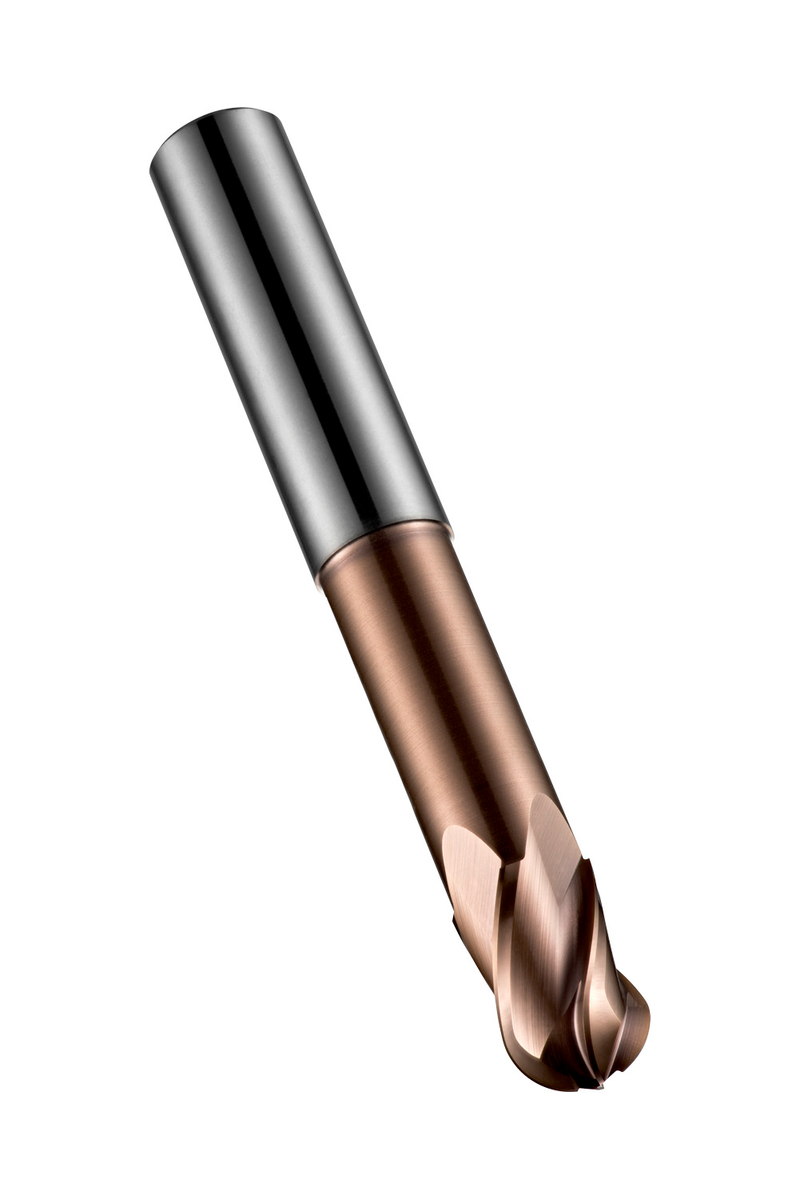

Fraise à rayonner (à embout sphérique) de série extra courte avec 4 dents, diamètre de 14 mm, longueur de coupe de 32 mm, longueur totale de 125 mm, portée de 80 mm avec dégagement et rayon de profil complet de 7 mm, conforme à la norme DORMER avec une tige cylindrique de 14 mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53514.0
GradeTiSiN
Product Number6706573
Product FamilyS535

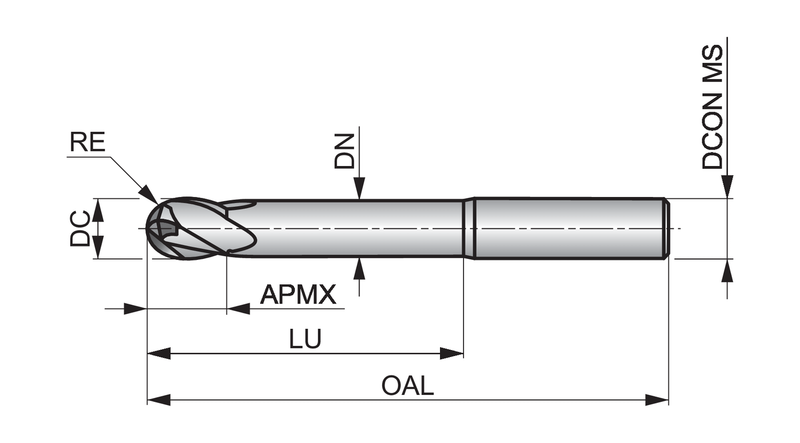

Insert Geometry
Corner Radius — in (RE)0.2756"
Corner Radius — mm (RE)7 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706573
EAN7320760681220
File Type Download
S53514.0 — Line Drawing PDF Download
