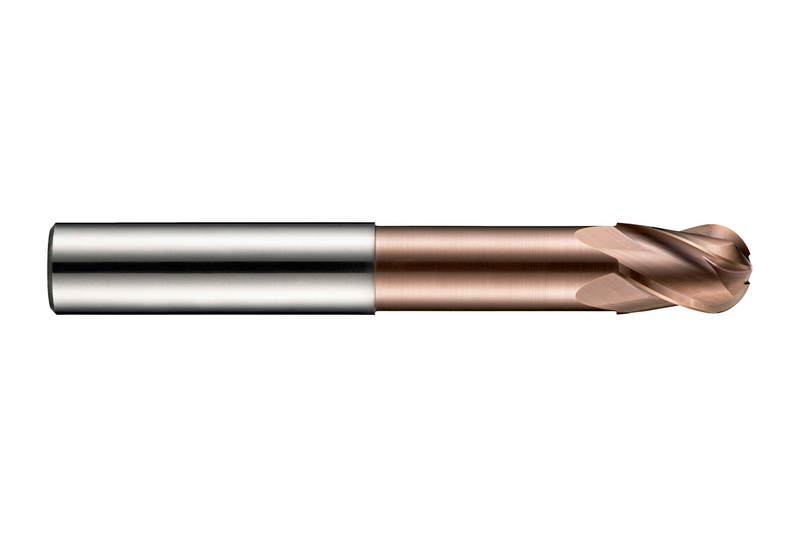

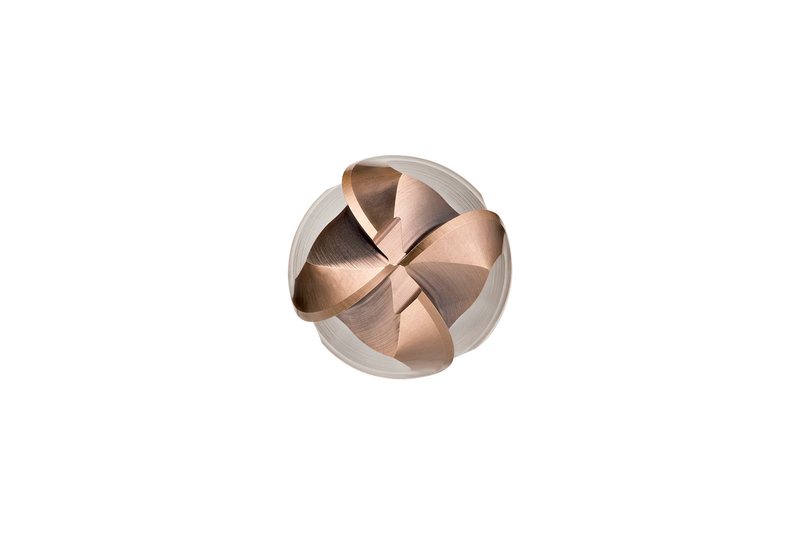

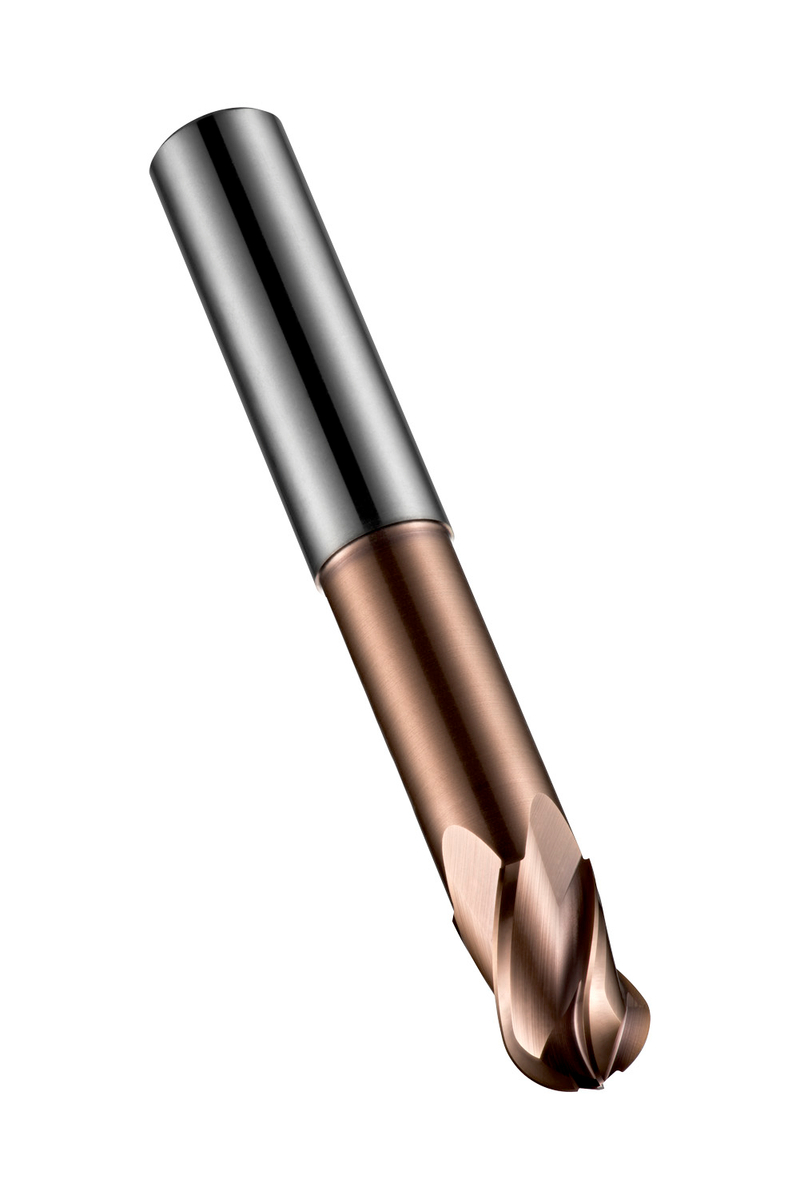

Fraise à rayon de bout à 4 dents, série extra-courte, diamètre 16mm avec une longueur de coupe de 32mm, une longueur totale de 125mm, une portée de 80mm avec dégagement et un rayon de profil complet de 8mm, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc avec revêtement TiSiN, hélice à 30° et angle de dépouille de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53516.0
GradeTiSiN
Product Number6706574
Product FamilyS535

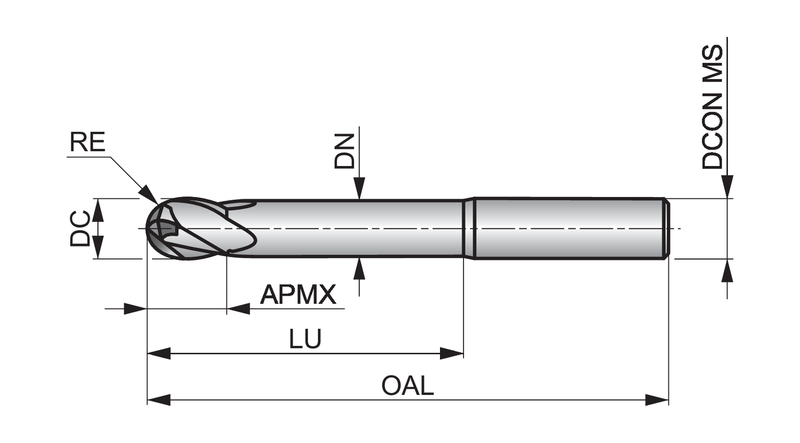

Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706574
EAN7320760681237
File Type Download
S53516.0 — Line Drawing PDF Download
