UGC DOR6706578
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.39 CAD - $90.39 CAD
$90.39 CAD
$90.39 CAD - $90.39 CAD
$90.39 CAD

Vendu en lots de : 1

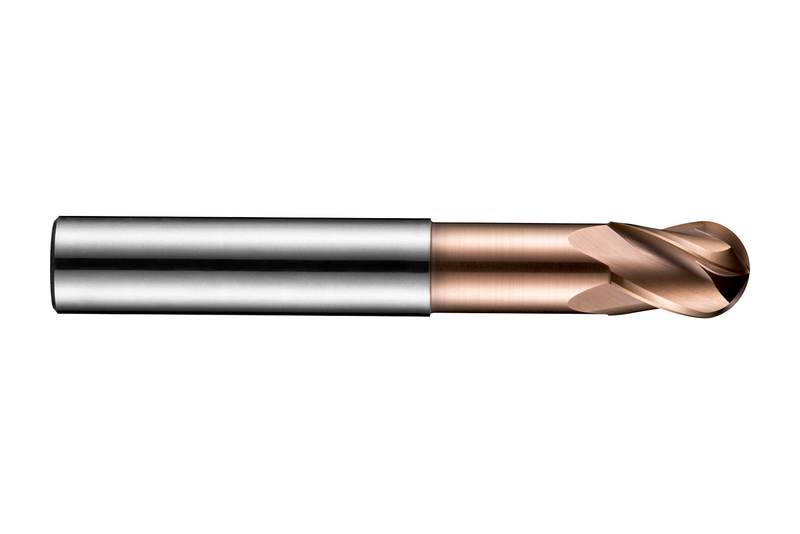

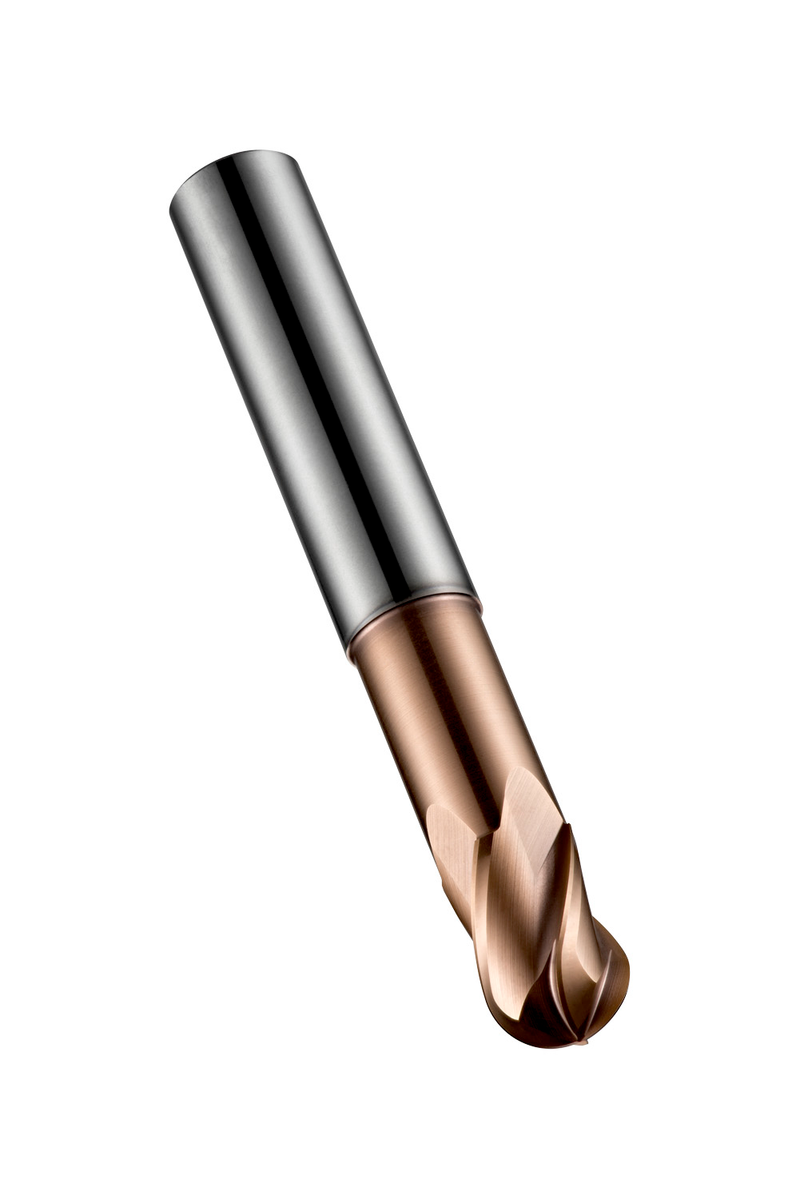

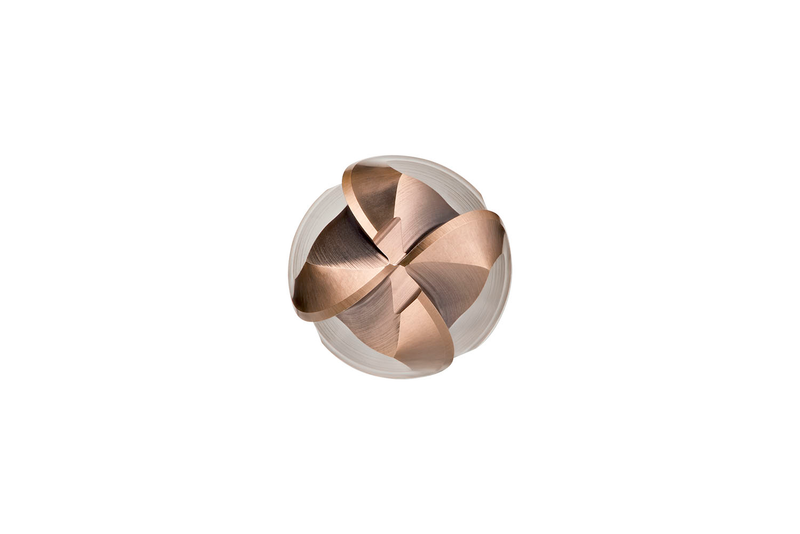

Fraise à lamer à bout sphérique extra-courte de 6 mm de diamètre avec 4 dents, 10 mm de longueur de coupe, 50 mm de longueur totale, 20 mm de portée avec dégagement et 3 mm de rayon de profil complet, conforme à la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de coupe de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5346.0
GradeTiSiN
Product Number6706578
Product FamilyS534

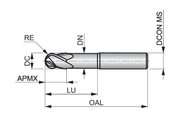

Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706578
EAN7320760681275
File Type Download
S5346.0 — Line Drawing PDF Download
