UGC DOR6706579
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.33 CAD - $126.33 CAD
$126.33 CAD
$126.33 CAD - $126.33 CAD
$126.33 CAD

Vendu en lots de : 1

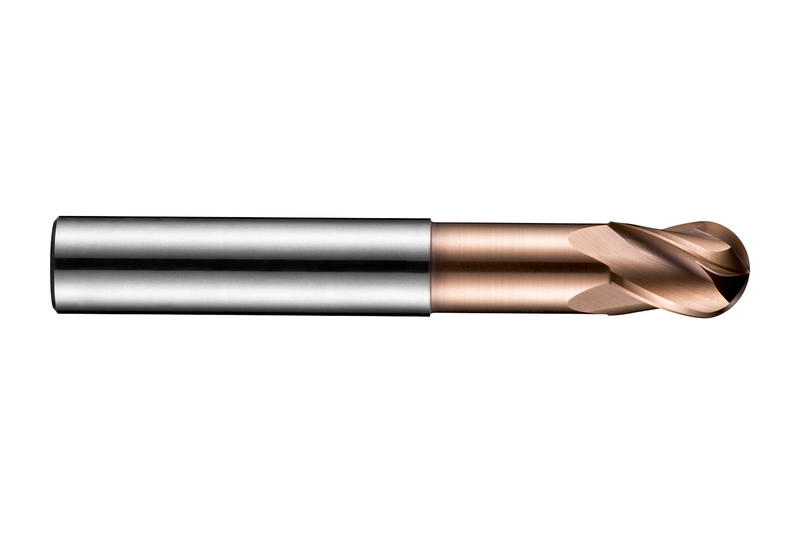

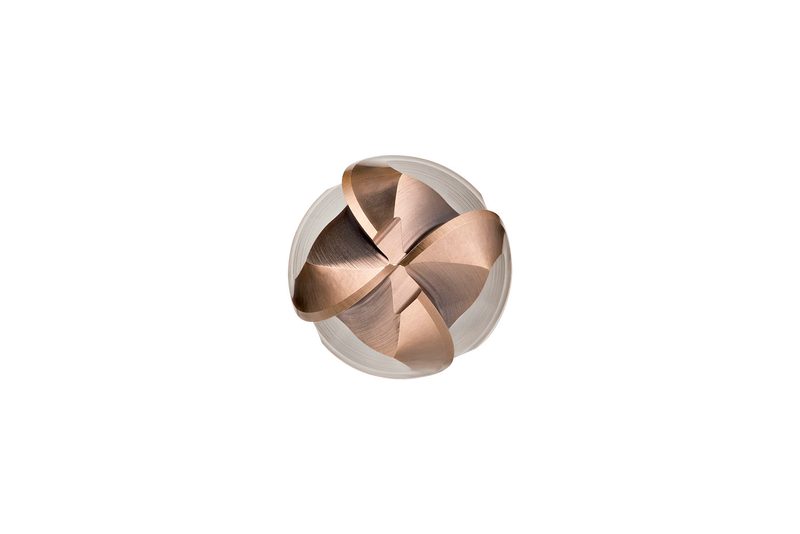

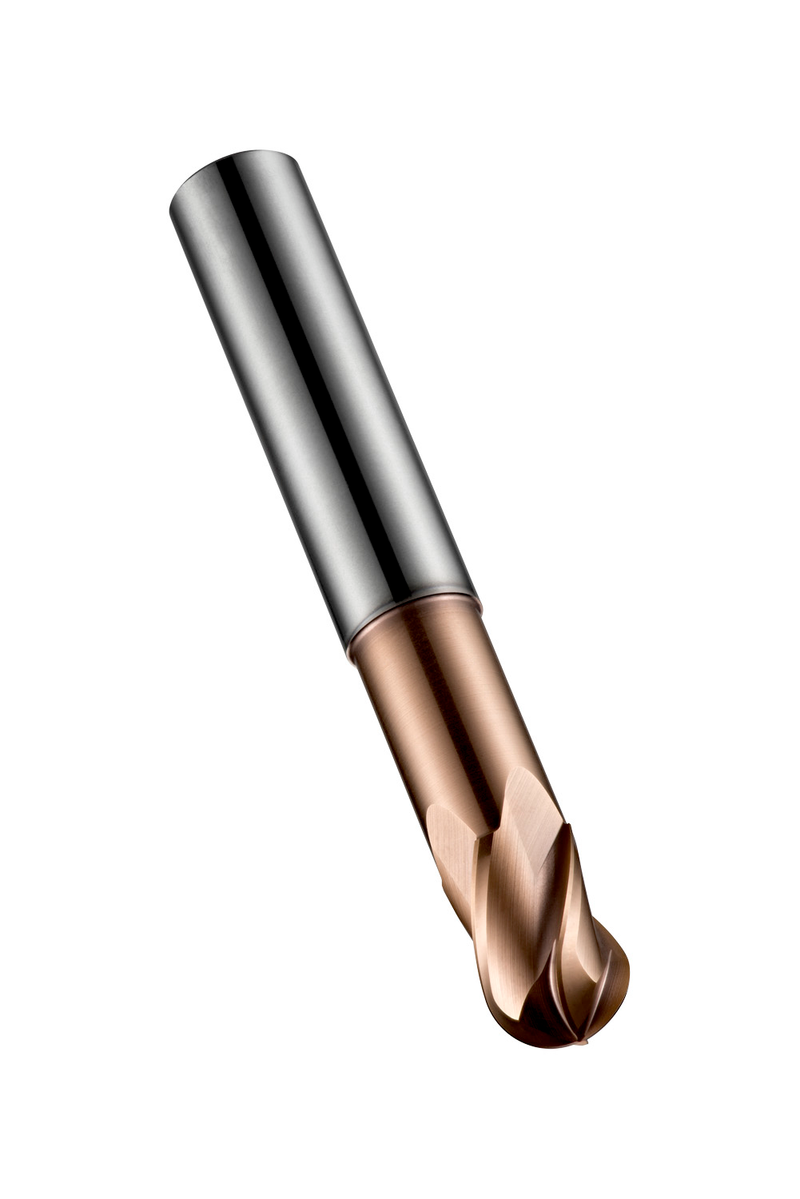

Fraise boule courte 4 dents, diamètre 8 mm, longueur de coupe 12 mm, longueur totale 64 mm, portée 30 mm avec dégagement de col et rayon de profil complet 4 mm, selon la norme DORMER avec un diamètre de queue cylindrique de 8 mm, carbure monobloc avec revêtement TiSiN, hélice 30° et angle de dépouille -10° pour le fraisage de copie dans des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5348.0
GradeTiSiN
Product Number6706579
Product FamilyS534
Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706579
EAN7320760681282
File Type Download
S5348.0 — Line Drawing PDF Download
