UGC DOR6706580
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.09 CAD - $168.09 CAD
$168.09 CAD
$168.09 CAD - $168.09 CAD
$168.09 CAD

Vendu en lots de : 1

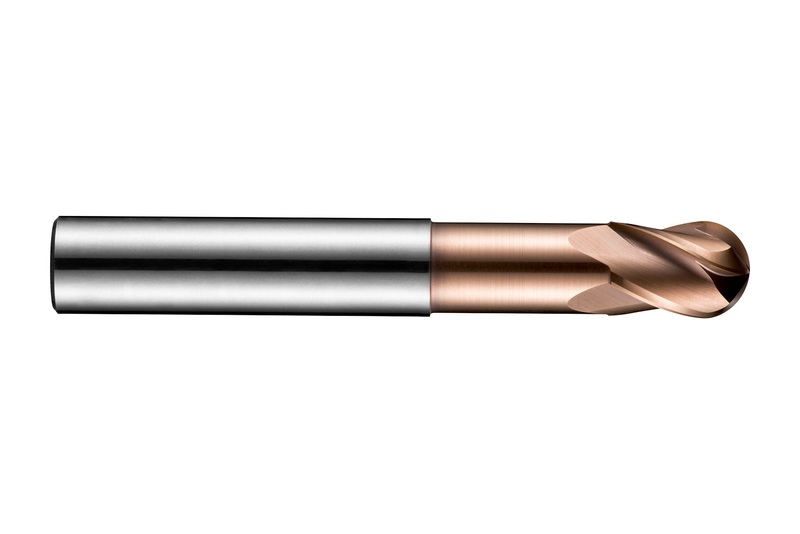

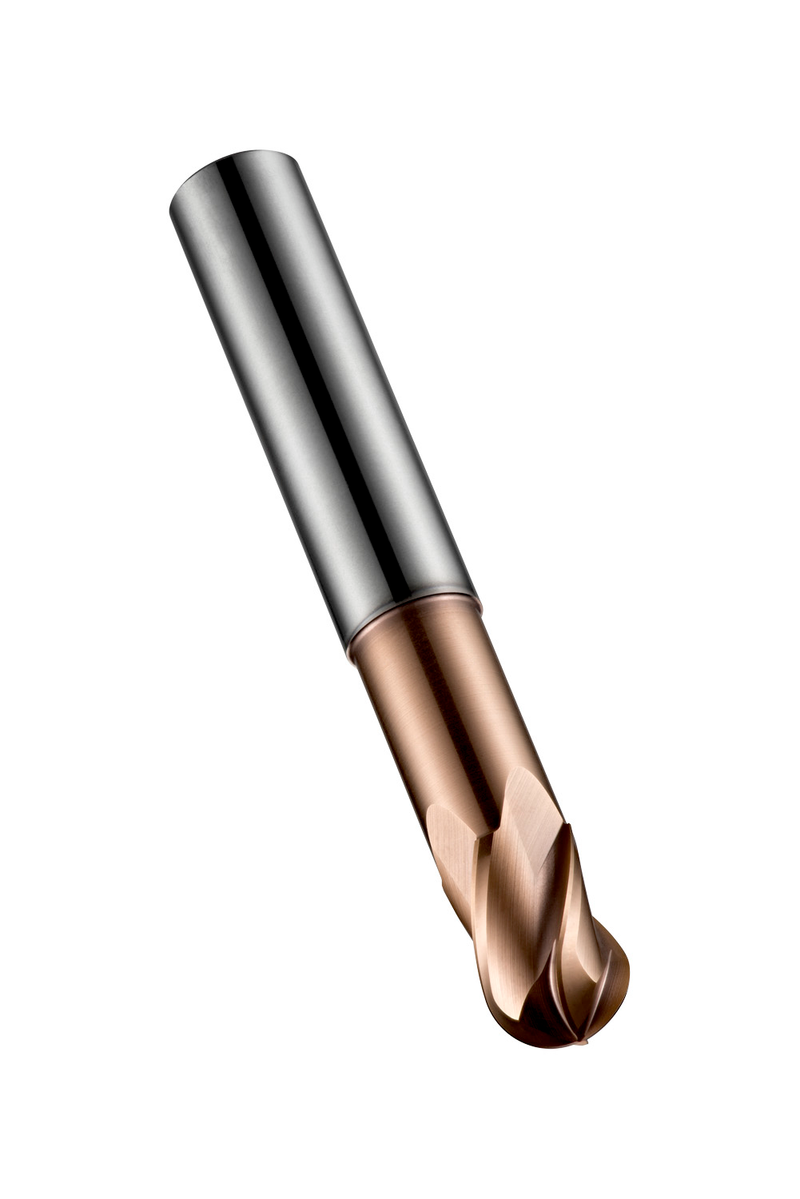

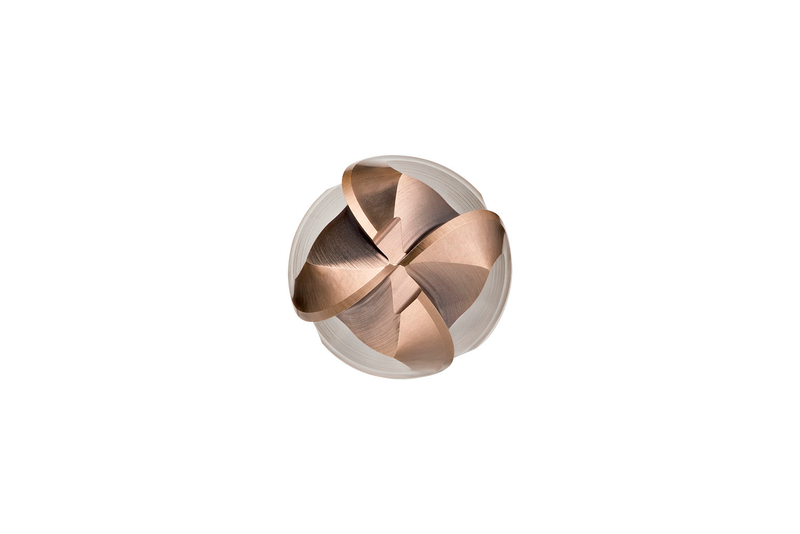

Fraise boule extra-courte à 4 dents, diamètre 10mm avec une longueur de coupe de 14mm, une longueur totale de 70mm, un dégagement de 32mm avec un col et un rayon de profil complet de 5mm, selon la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage de copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53410.0
GradeTiSiN
Product Number6706580
Product FamilyS534
Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706580
EAN7320760681299
File Type Download
S53410.0 — Line Drawing PDF Download
