UGC DOR6706581
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$230.46 CAD - $230.46 CAD
$230.46 CAD
$230.46 CAD - $230.46 CAD
$230.46 CAD

Vendu en lots de : 1

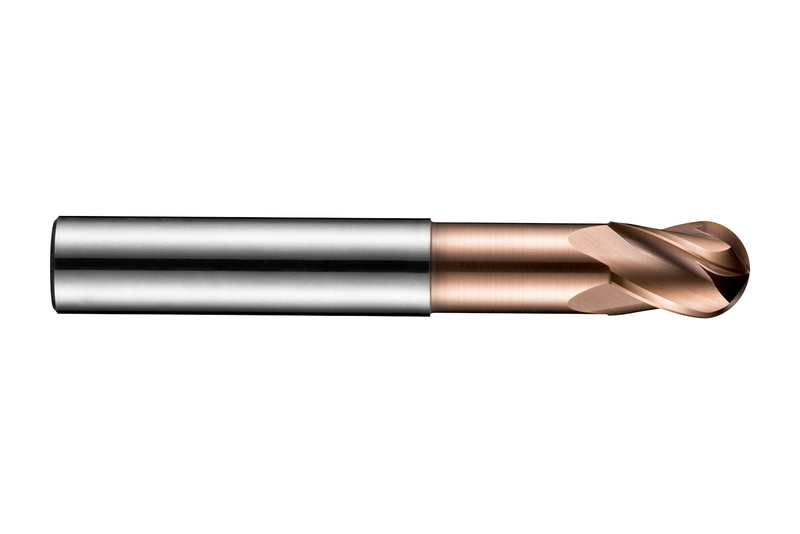

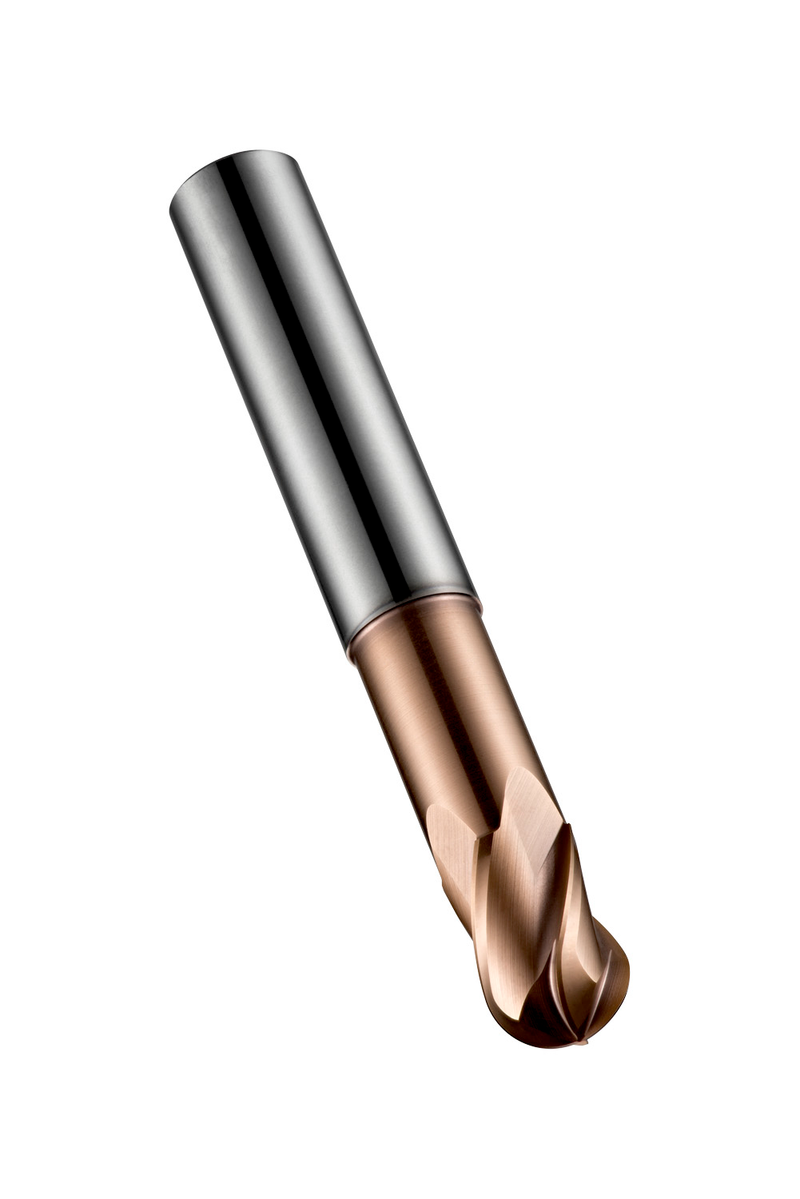

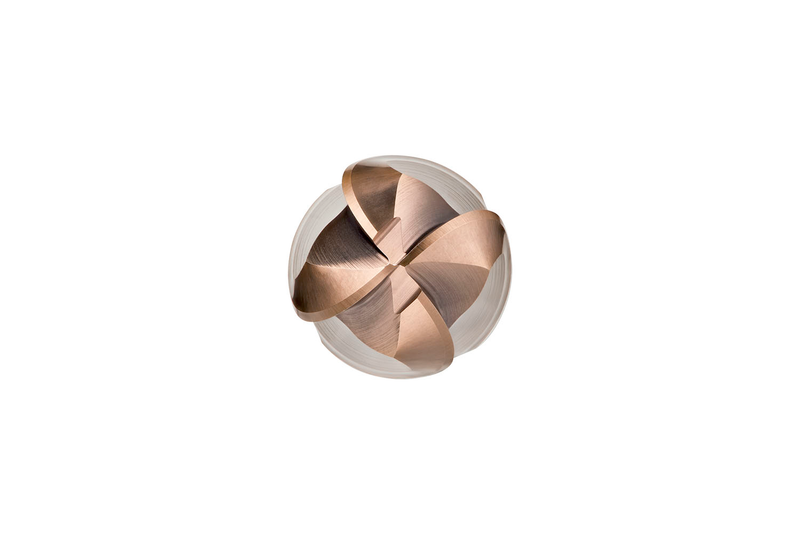

Fraise à rayon de bout à 4 dents, série extra courte, diamètre de 12 mm avec longueur de coupe de 16 mm, longueur totale de 75 mm, portée de 38 mm avec dégagement de col et rayon de profil complet de 6 mm, selon la norme DORMER avec une queue cylindrique de 12 mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53412.0
GradeTiSiN
Product Number6706581
Product FamilyS534
Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)38.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706581
EAN7320760681305
File Type Download
S53412.0 — Line Drawing PDF Download
