UGC DOR6706582
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$290.71 CAD - $290.71 CAD
$290.71 CAD
$290.71 CAD - $290.71 CAD
$290.71 CAD

Vendu en lots de : 1

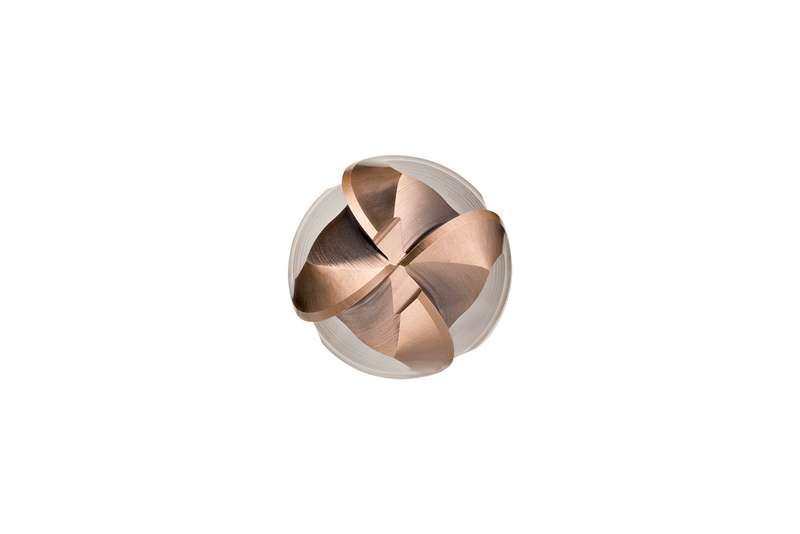

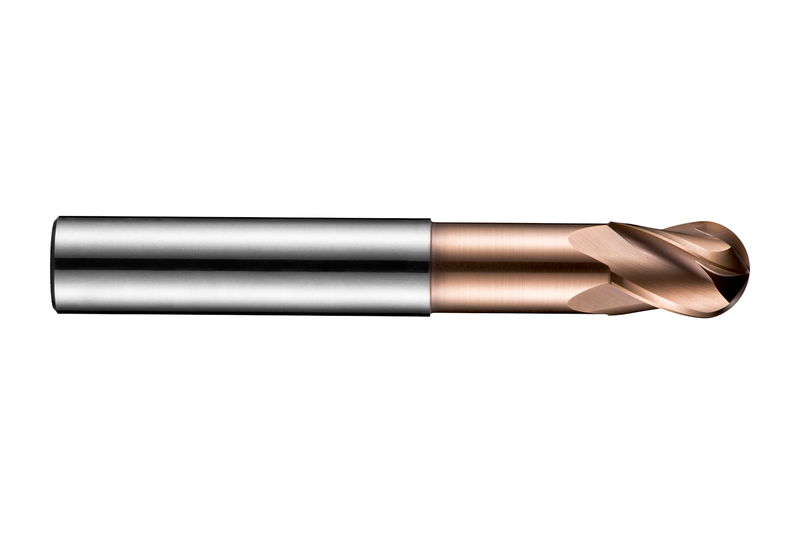

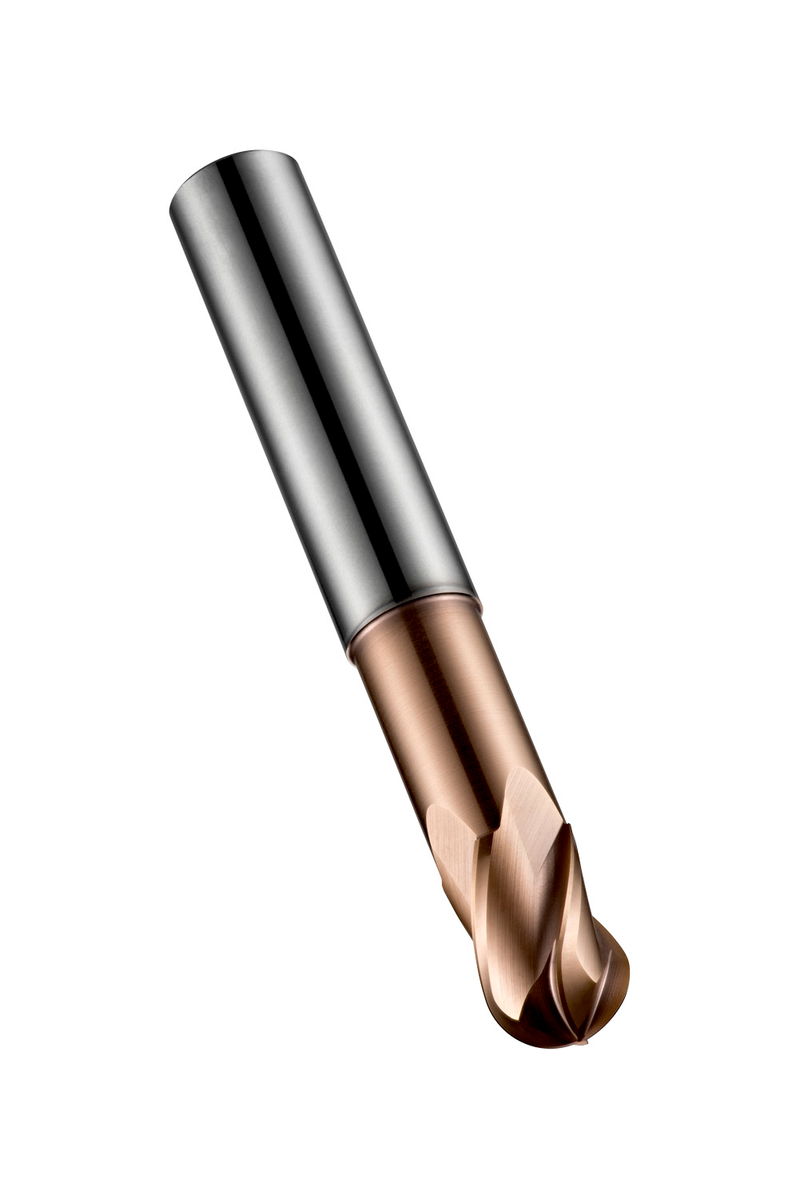

Fraise boule extra-courte à 4 dents, diamètre 14 mm avec 32 mm de longueur de coupe, 90 mm de longueur totale, 44 mm de portée avec dégagement et 7 mm de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 14 mm, carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage par copiage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53414.0
GradeTiSiN
Product Number6706582
Product FamilyS534
Insert Geometry
Corner Radius — in (RE)0.2756"
Corner Radius — mm (RE)7 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)44.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706582
EAN7320760681312
File Type Download
S53414.0 — Line Drawing PDF Download
