UGC DOR6706586
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.73 CAD - $133.73 CAD
$133.73 CAD
$133.73 CAD - $133.73 CAD
$133.73 CAD

Vendu en lots de : 1

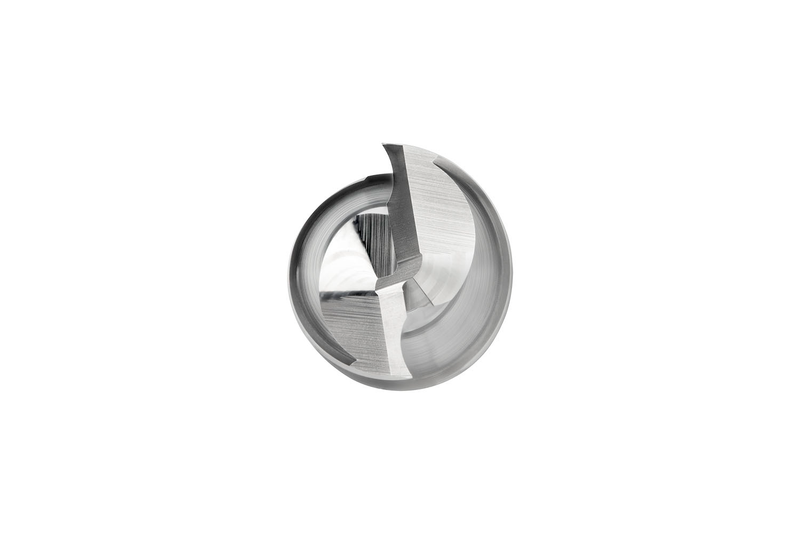

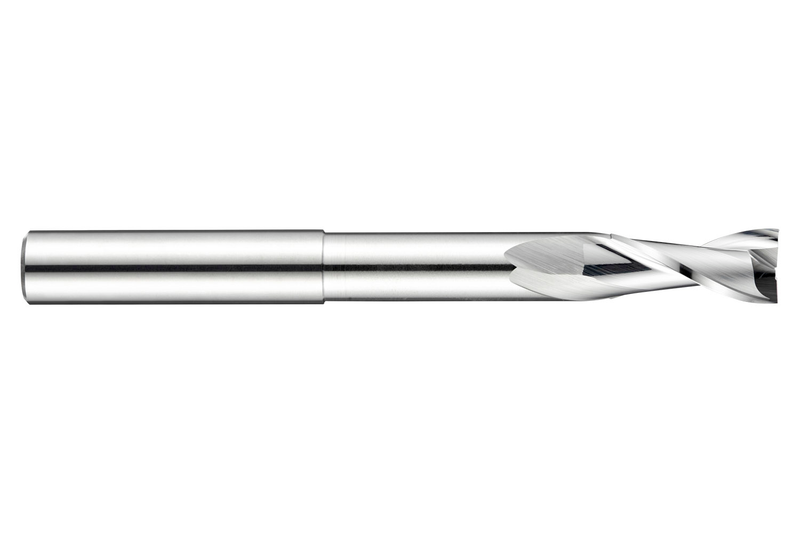

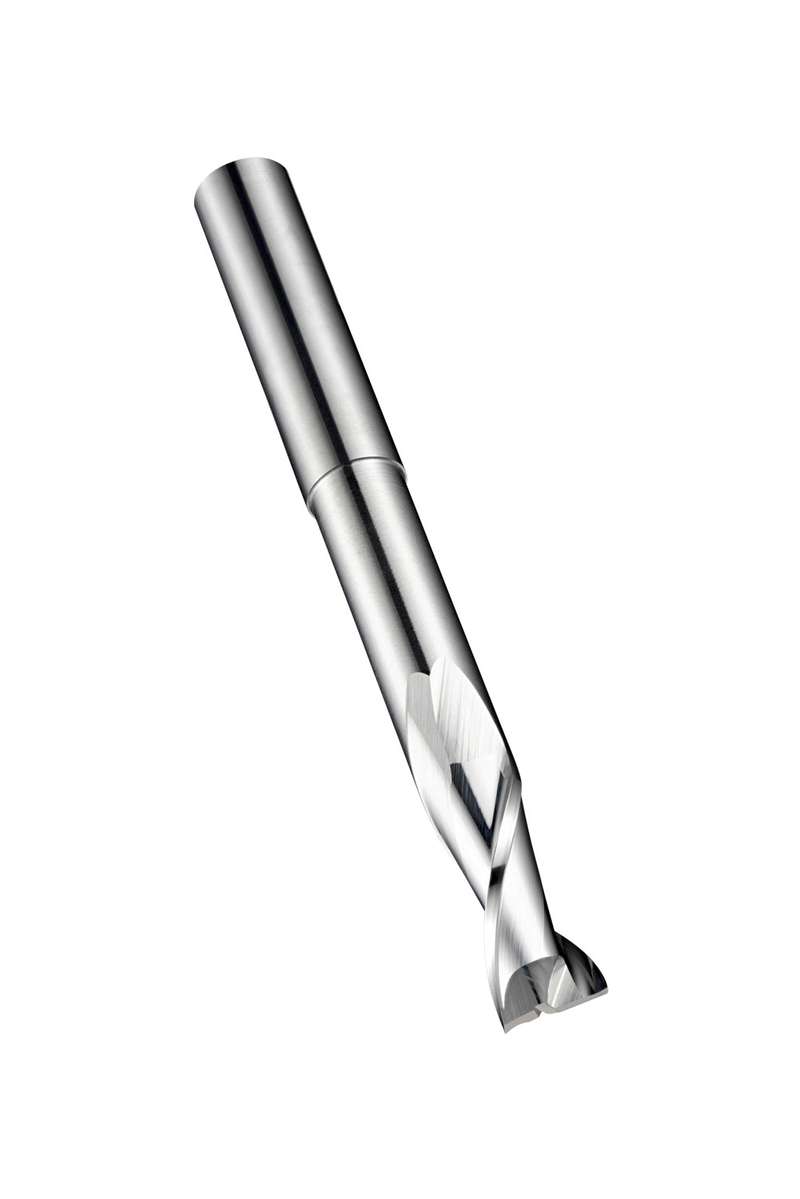

Fraise en bout série courte 2 dents, diamètre 10mm, longueur de coupe 22mm, longueur totale 100mm, portée 60mm avec dégagement de col et rayons de coin de 0,1mm, selon la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le fraisage d'épaulement, le fraisage de rainures, le ramping et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61110.0
GradePoli
Product Number6706586
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

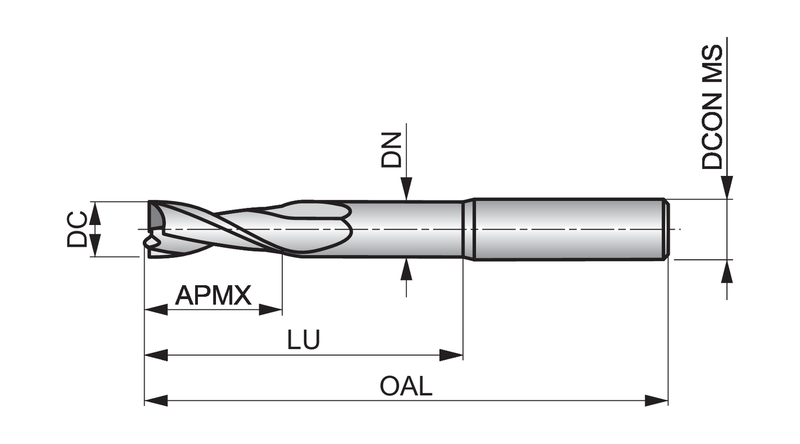

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706586
EAN7320760681350
File Type Download
S61110.0 — Line Drawing PDF Download
