UGC DOR6706587
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.83 CAD - $181.83 CAD
$181.83 CAD
$181.83 CAD - $181.83 CAD
$181.83 CAD

Vendu en lots de : 1

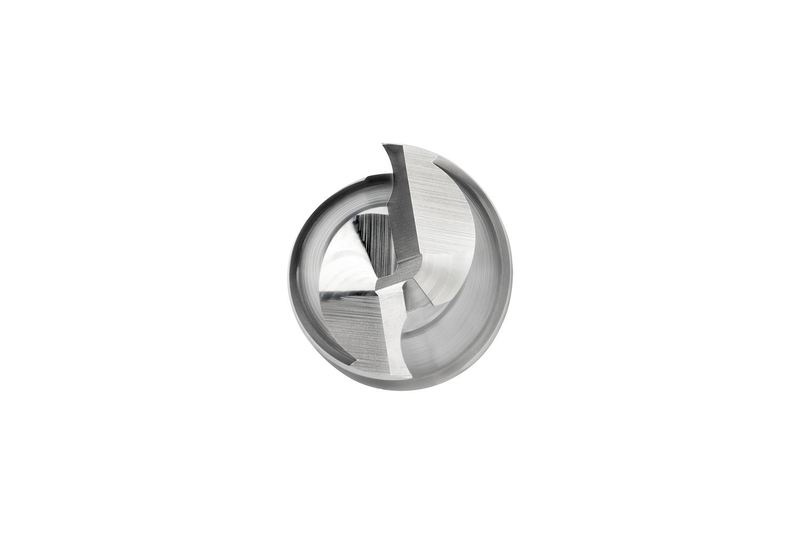

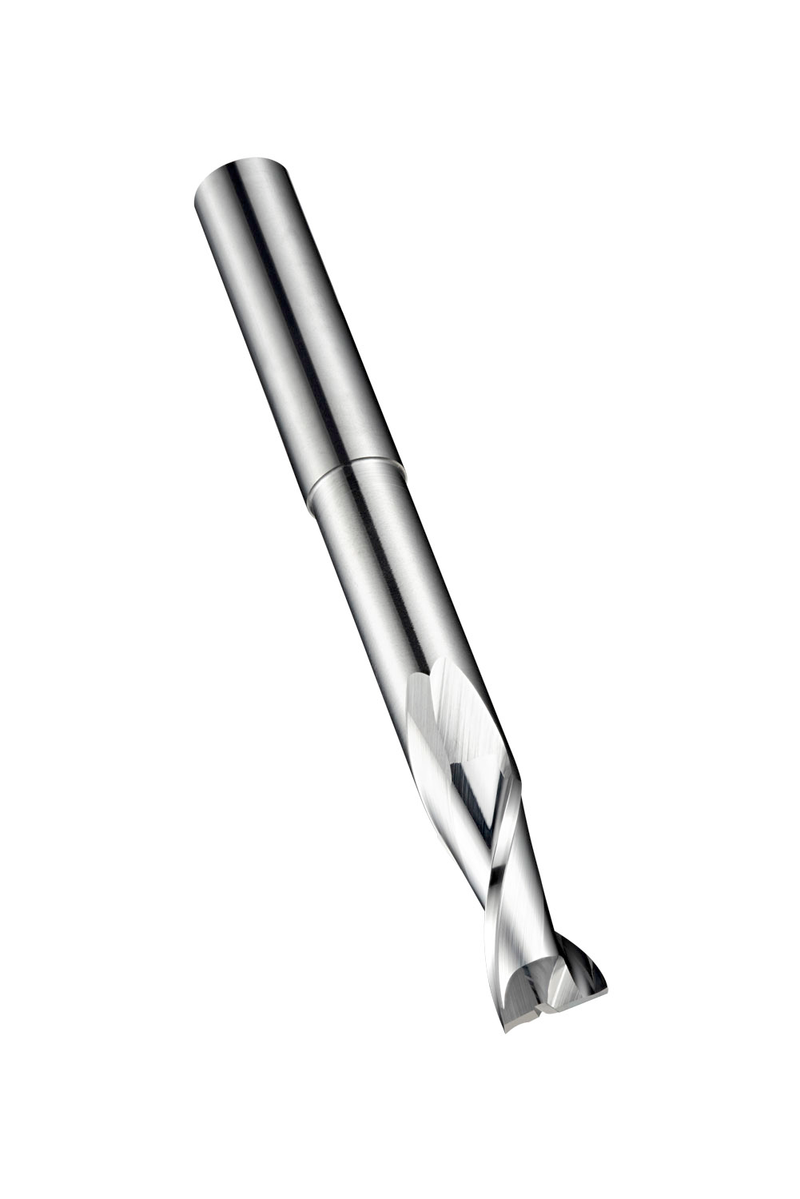

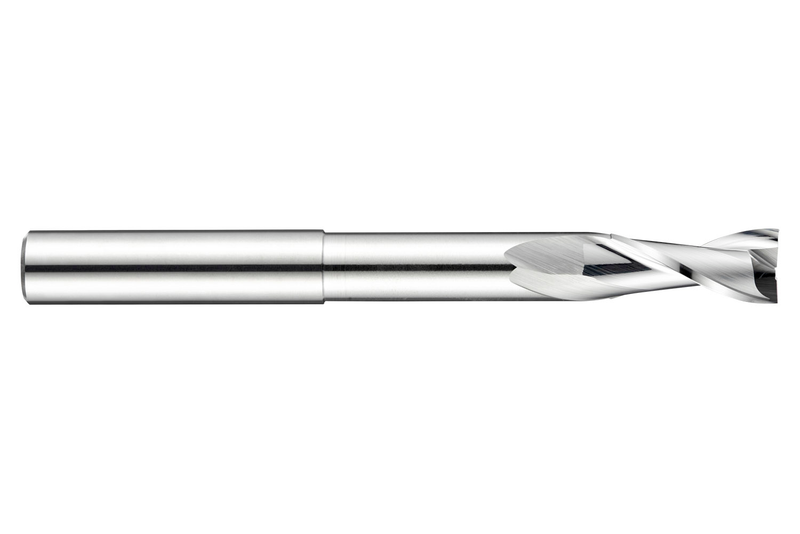

Fraise 2 dents, série courte, diamètre 12mm avec 25mm de longueur de coupe, longueur totale 100mm, 60mm de portée avec dégagement de col et rayons d'angle de 0.1mm, selon le standard DORMER avec une queue cylindrique de 12mm, carbure monobloc avec finition polie, hélice 30° et angle de dépouille de 20° pour le fraisage d'épaulement, le fraisage de rainure, le ramping et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61112.0
GradePoli
Product Number6706587
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

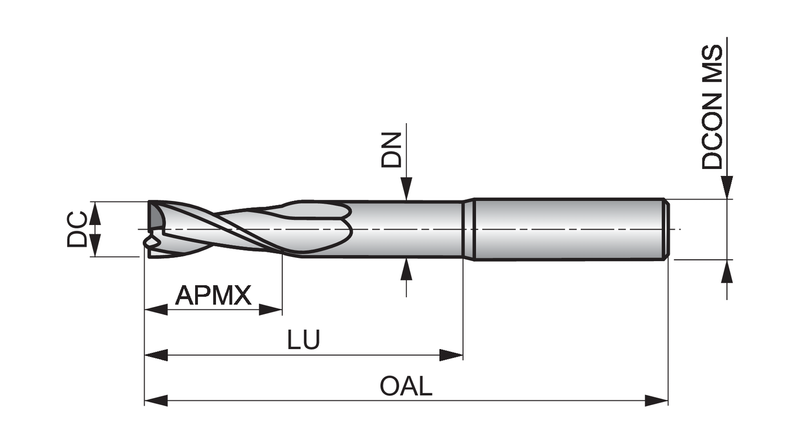

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706587
EAN7320760681367
File Type Download
S61112.0 — Line Drawing PDF Download
