UGC DOR6706591
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$465.67 CAD - $465.67 CAD
$465.67 CAD
$465.67 CAD - $465.67 CAD
$465.67 CAD

Vendu en lots de : 1

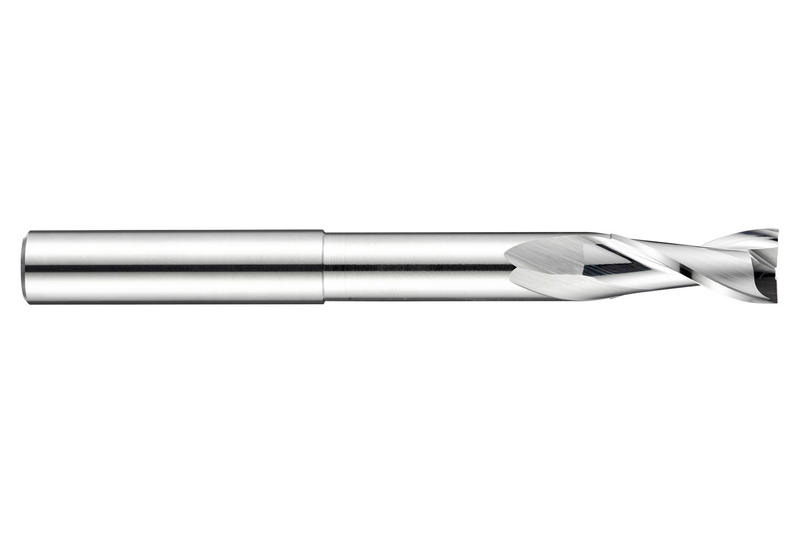

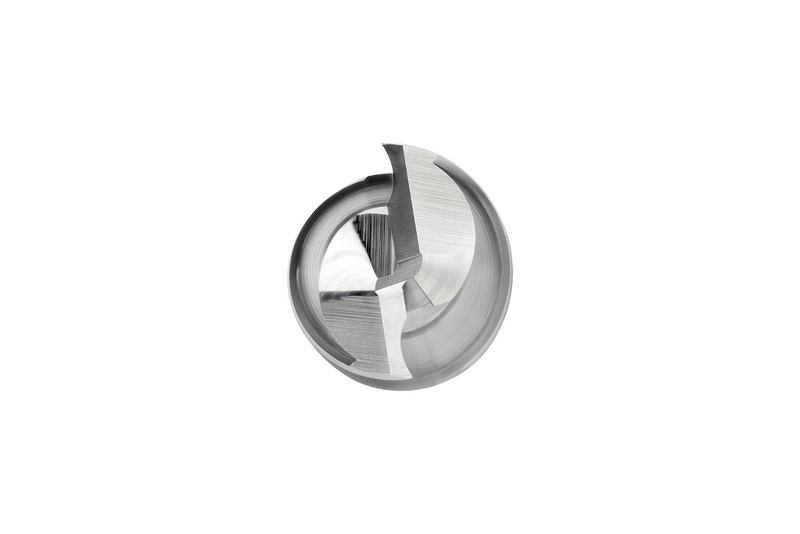

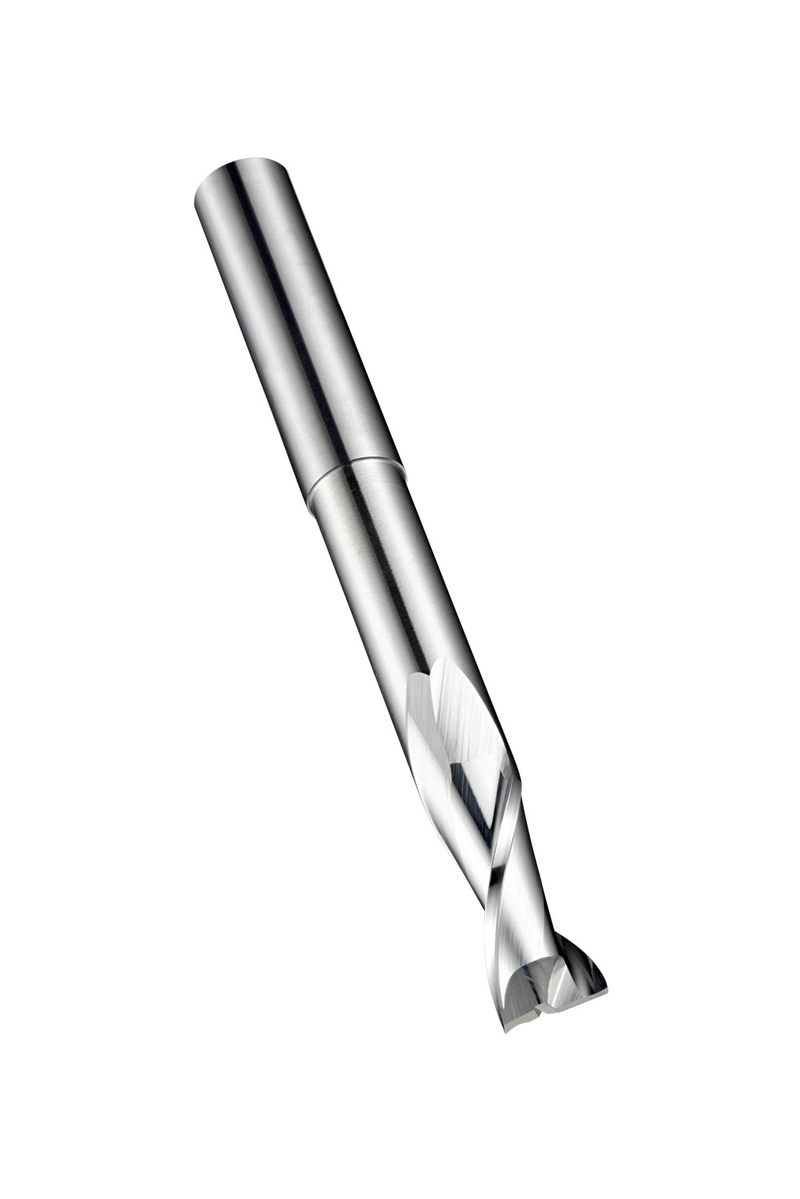

Fraise deux tailles courte, diamètre 20mm, longueur de coupe 38mm, longueur totale 125mm, portée 75mm avec dégagement et rayons de coin de 0,1mm, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le fraisage d'épaulement, le fraisage de rainures, le fraisage en rampe et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61120.0
GradePoli
Product Number6706591
Product FamilyS611
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

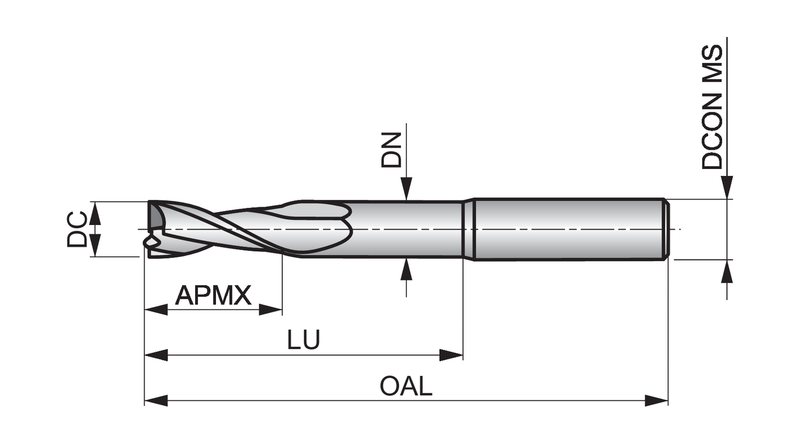

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)75.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706591
EAN7320760681404
File Type Download
S61120.0 — Line Drawing PDF Download
