S6103.0XD3
S6103.0XD3
S6103.0XD3
S6103.0XD3

S6103.0XD3

UGC DOR6706592
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.39 CAD - $53.39 CAD
$53.39 CAD
$53.39 CAD - $53.39 CAD
$53.39 CAD

Vendu en lots de : 1

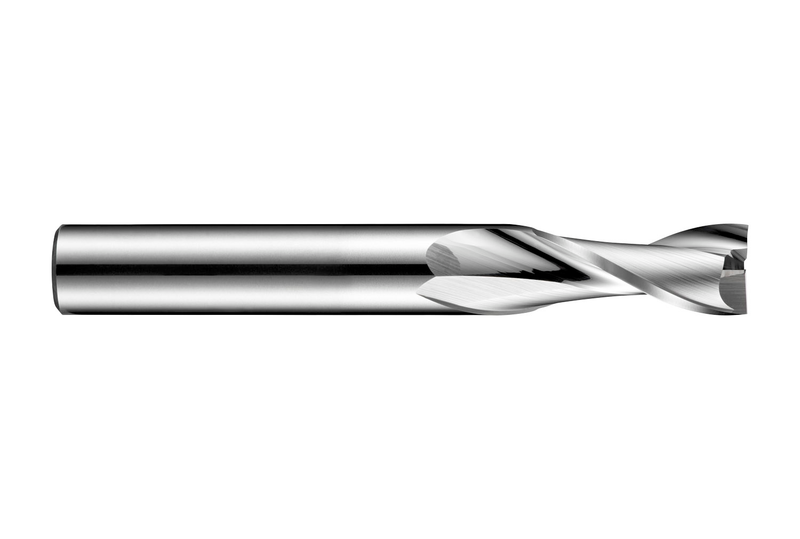

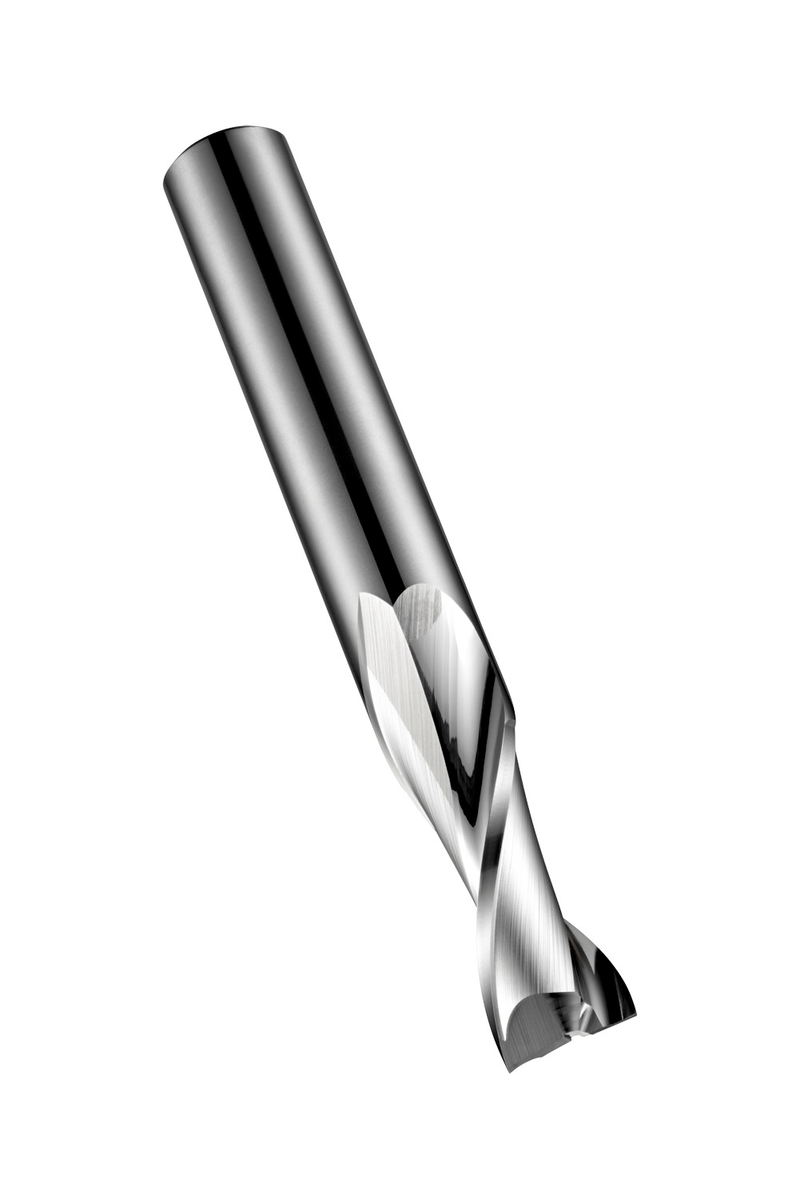

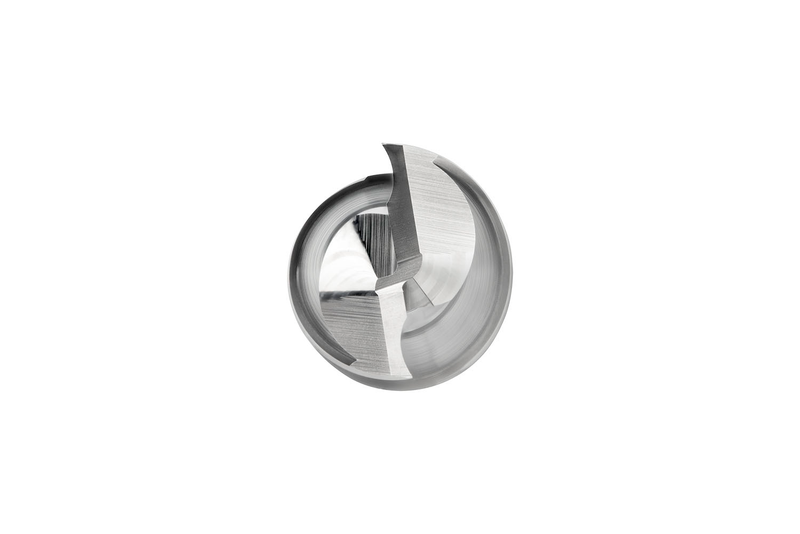

Fraise en bout série courte 2 dents, diamètre 3mm, longueur de coupe 9mm, longueur totale 40mm et rayon de coin 0.1mm, selon la norme DORMER avec un queue cylindrique de 3mm, en carbure monobloc avec finition polie, hélice 30° et angle de dépouille 20° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6103.0XD3
GradePoli
Product Number6706592
Product FamilyS610
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm

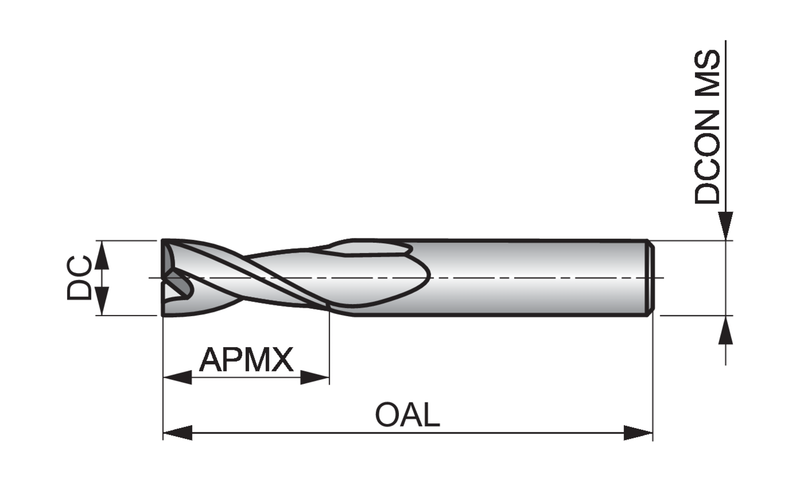

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706592
EAN7320760681411
File Type Download
S6103.0XD3 — Line Drawing PDF Download
