S6104.0XD6
S6104.0XD6
S6104.0XD6
S6104.0XD6

S6104.0XD6

UGC DOR6706595
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.14 CAD - $58.14 CAD
$58.14 CAD
$58.14 CAD - $58.14 CAD
$58.14 CAD

Vendu en lots de : 1

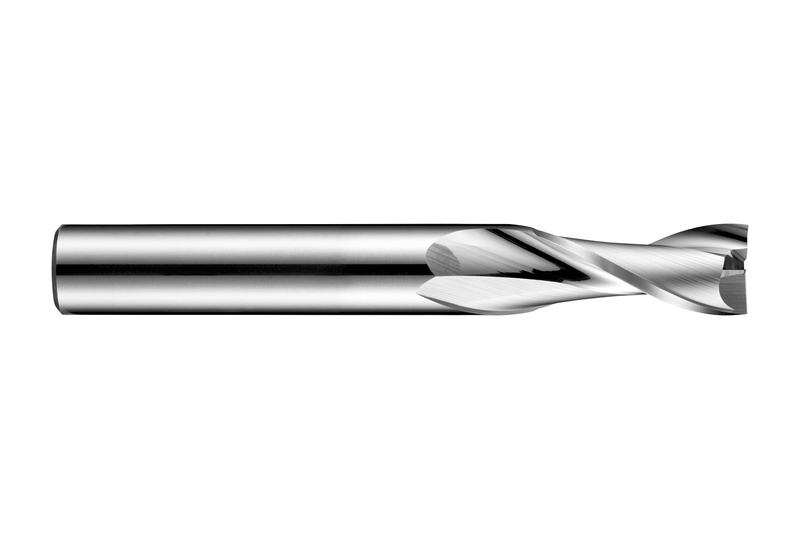

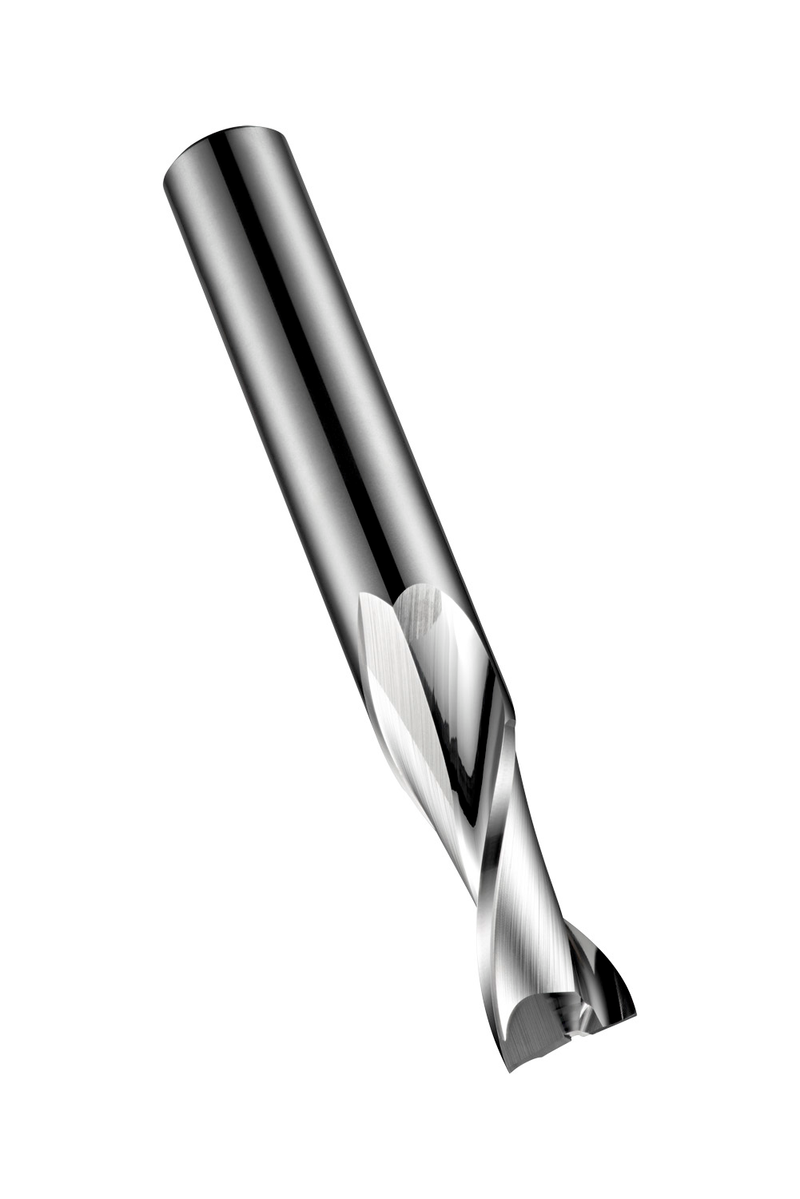

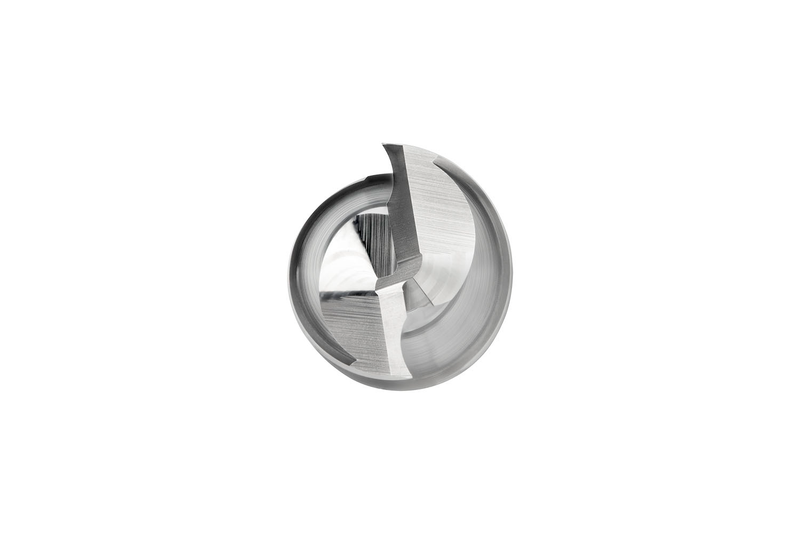

Fraise deux tailles à queue cylindrique, série courte, diamètre 4 mm avec une longueur de coupe de 12 mm, longueur totale de 50 mm et un rayon de coin de 0,1 mm, selon la norme DORMER, queue de 6 mm, carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le surfaçage en bout, l'usinage de rainures et l'usinage en ramping dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6104.0XD6
GradePoli
Product Number6706595
Product FamilyS610
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm

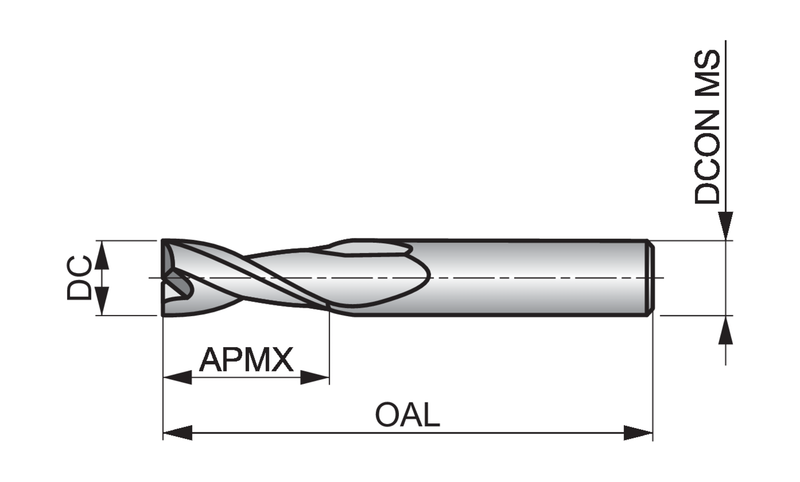

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706595
EAN7320760681442
File Type Download
S6104.0XD6 — Line Drawing PDF Download
