UGC DOR6706600
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.17 CAD - $151.17 CAD
$151.17 CAD
$151.17 CAD - $151.17 CAD
$151.17 CAD

Vendu en lots de : 1

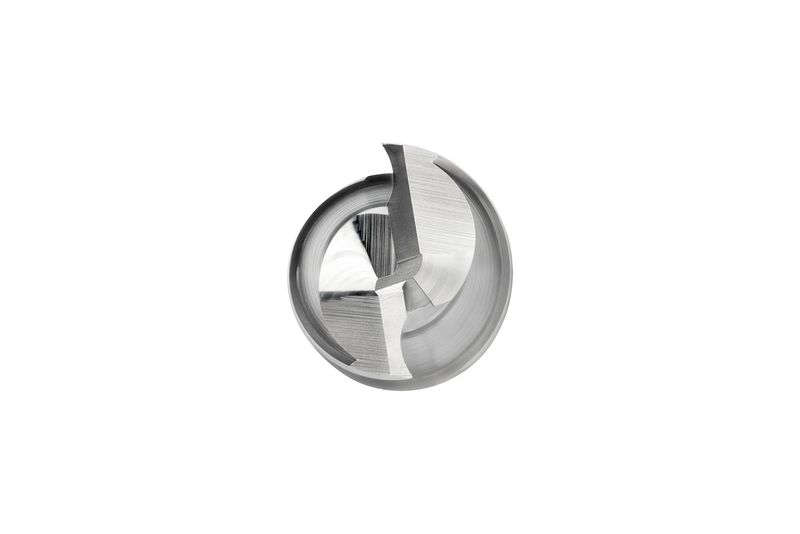

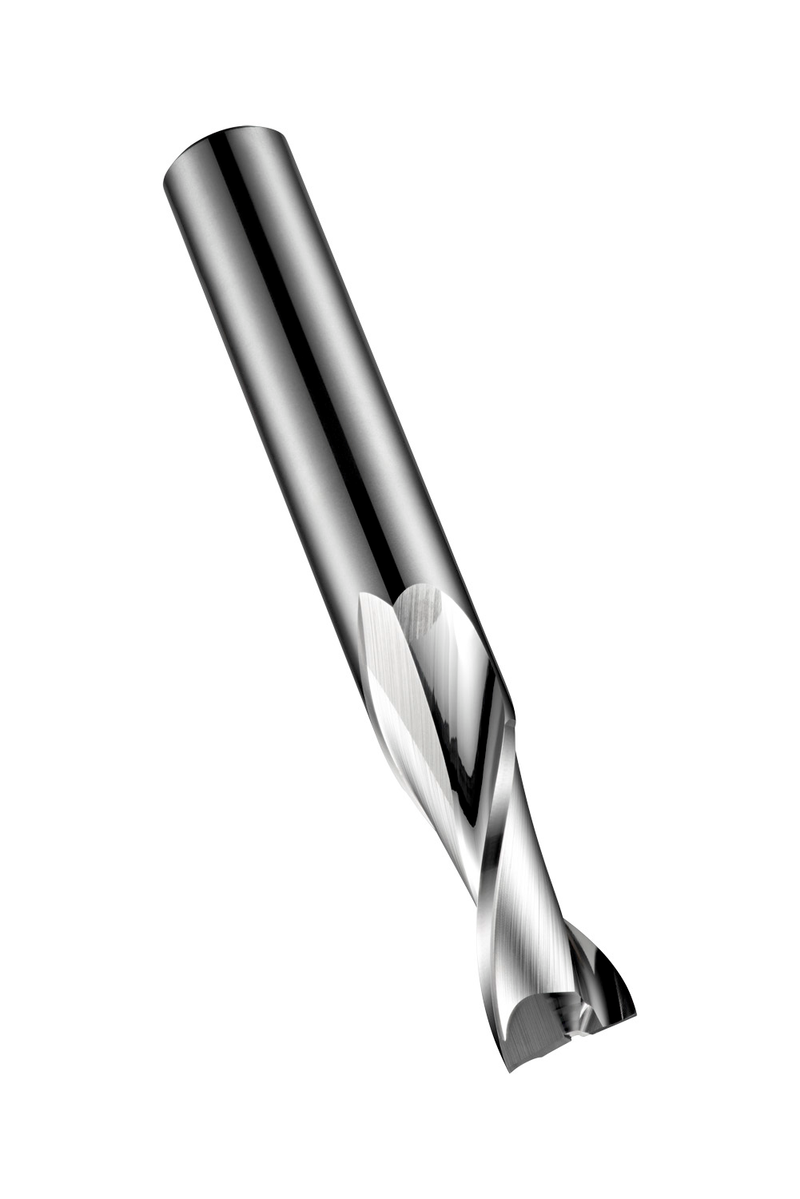

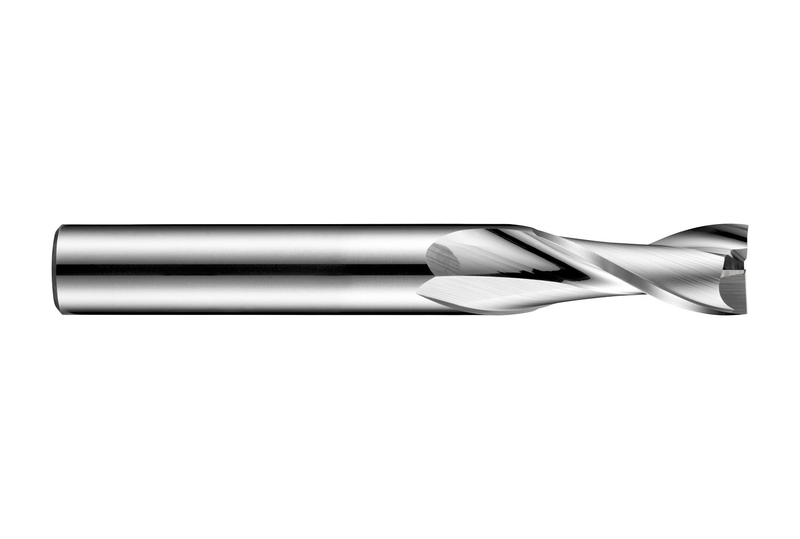

Fraise deux tailles à queue cylindrique courte, diamètre 12mm avec 25mm de longueur de coupe, 75mm de longueur totale et des rayons d'angle de 0.1mm, selon la norme DORMER, avec une queue cylindrique de 12mm, en carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le surfaçage en bout, le fraisage de rainures et le fraisage en plongée dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61012.0
GradePoli
Product Number6706600
Product FamilyS610
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

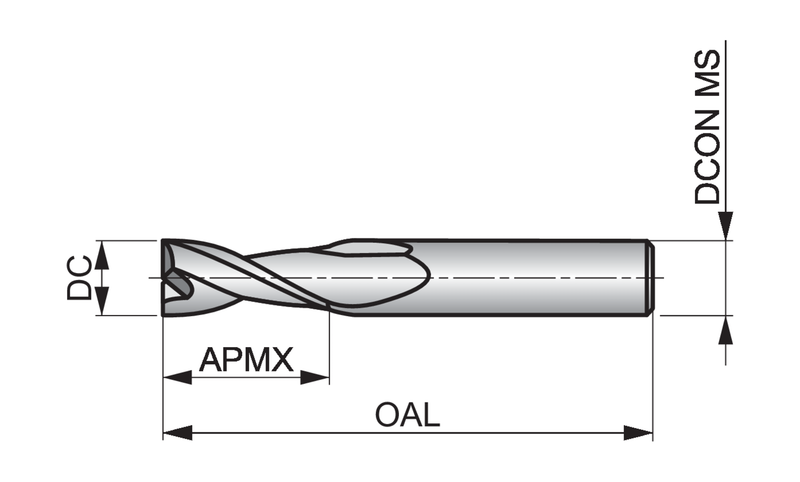

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706600
EAN7320760681497
File Type Download
S61012.0 — Line Drawing PDF Download
