UGC DOR6706601
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$189.76 CAD - $189.76 CAD
$189.76 CAD
$189.76 CAD - $189.76 CAD
$189.76 CAD

Vendu en lots de : 1

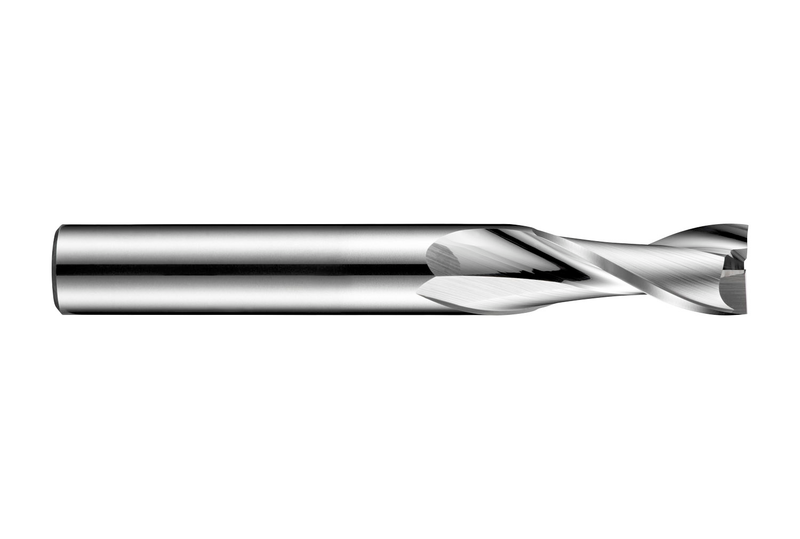

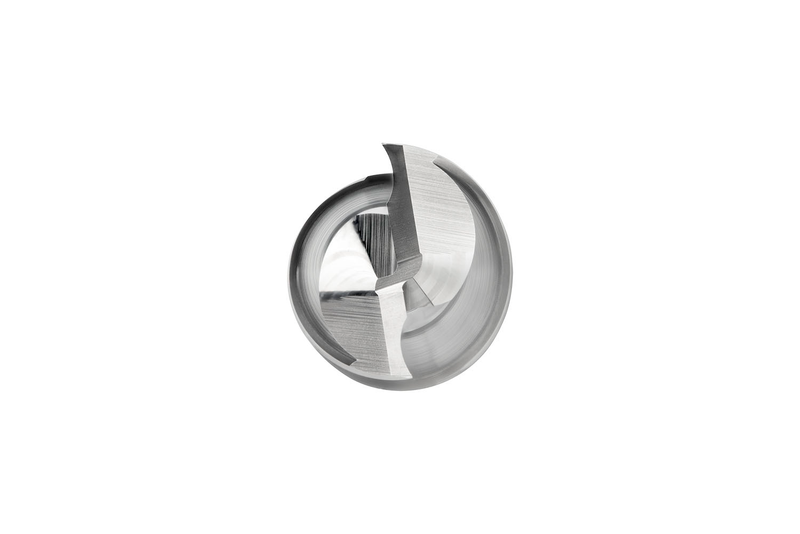

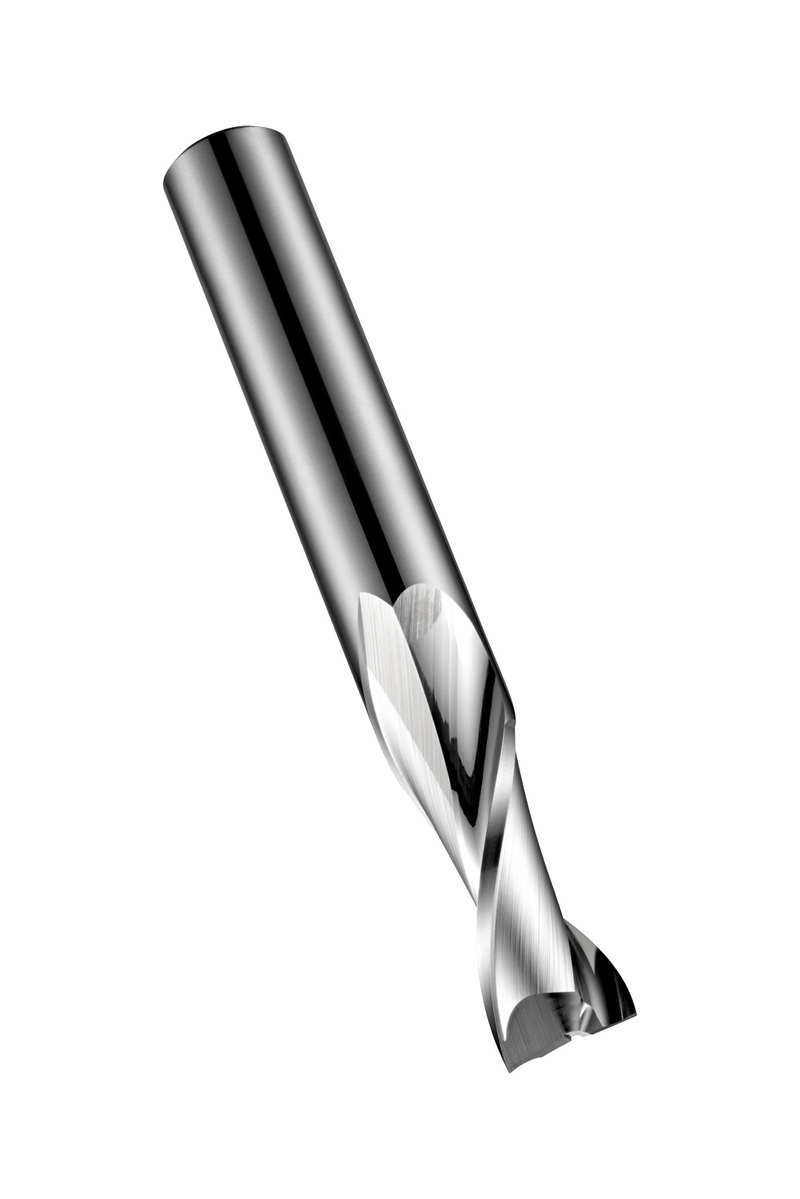

Fraise en bout courte 2 dents, diamètre 14 mm avec 32 mm de longueur de coupe, 90 mm de longueur totale et des rayons de coin de 0,1 mm, conforme à la norme DORMER avec une queue cylindrique de 14 mm, en carbure monobloc avec une finition polie, hélice à 30° et angle de dépouille de 20° pour le fraisage en bout, le fraisage de rainures et le fraisage en plongée dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61014.0
GradePoli
Product Number6706601
Product FamilyS610
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

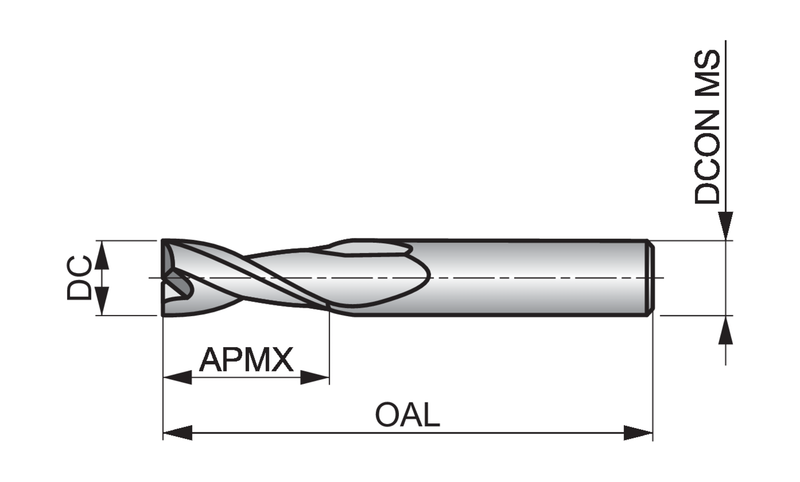

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706601
EAN7320760681503
File Type Download
S61014.0 — Line Drawing PDF Download
