UGC DOR6706604
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$383.74 CAD - $383.74 CAD
$383.74 CAD
$383.74 CAD - $383.74 CAD
$383.74 CAD

Vendu en lots de : 1

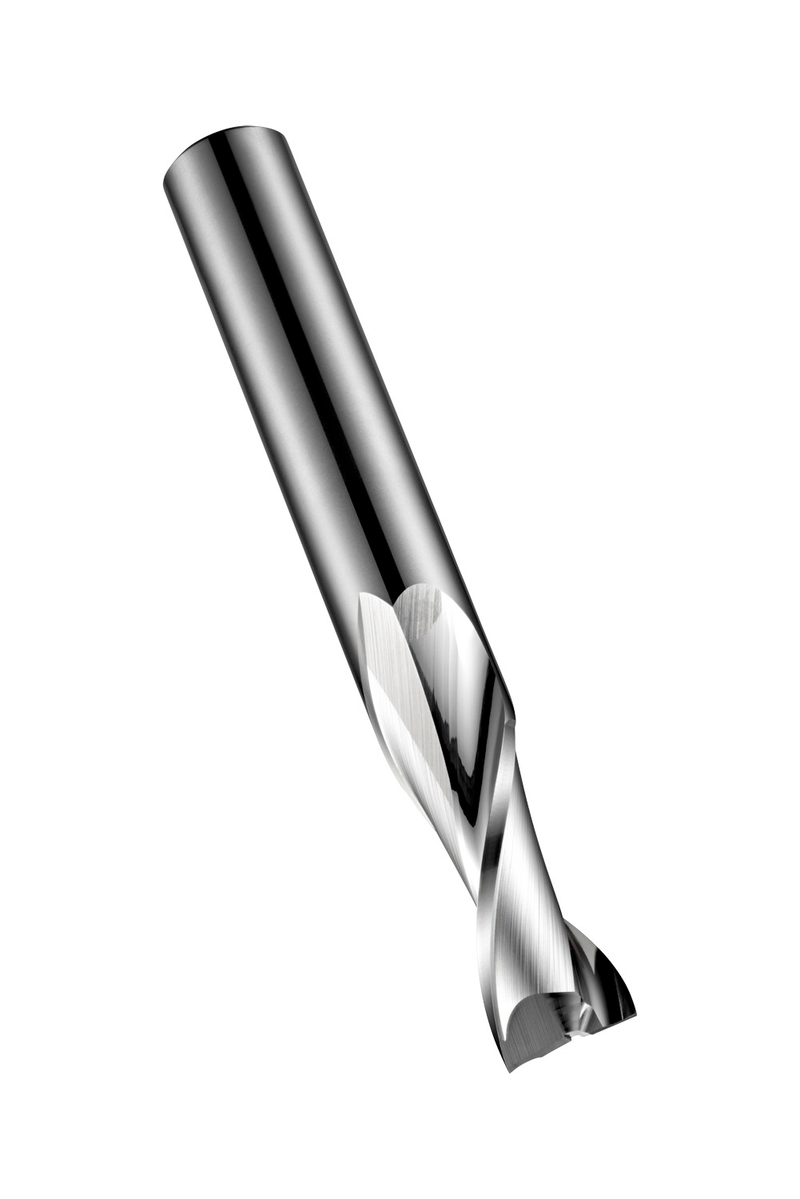

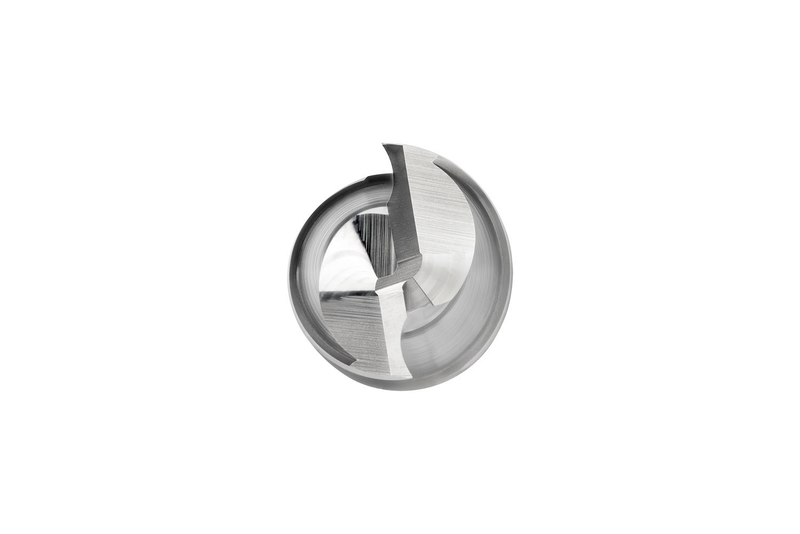

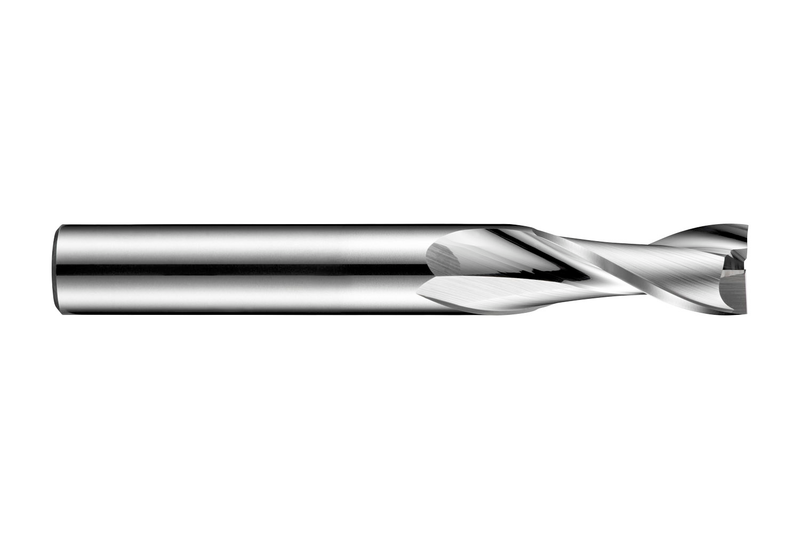

Fraise deux tailles courte, diamètre 20mm, 38mm de longueur de coupe, 100mm de longueur totale et rayon de coin de 0,1mm, selon la norme DORMER avec un corps cylindrique de 20mm, carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le fraisage en bout, le fraisage de rainures et l'interpolation hélicoïdale dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61020.0
GradePoli
Product Number6706604
Product FamilyS610
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

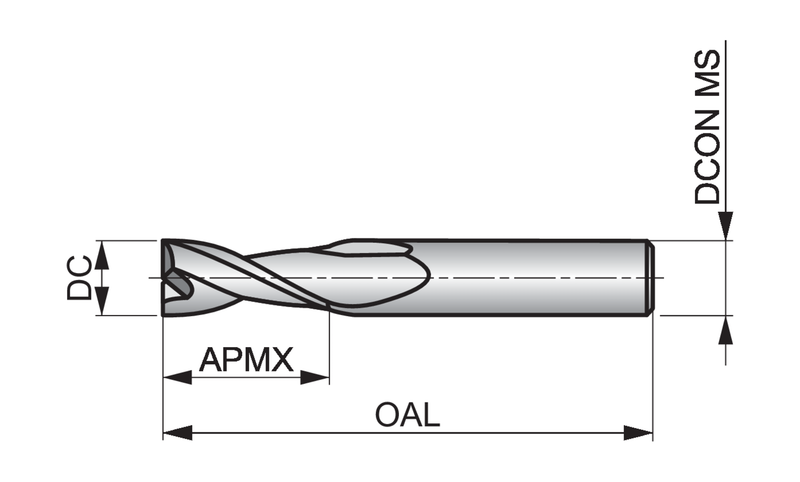

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706604
EAN7320760681534
File Type Download
S61020.0 — Line Drawing PDF Download
