UGC DOR6706607
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$129.50 CAD - $129.50 CAD
$129.50 CAD
$129.50 CAD - $129.50 CAD
$129.50 CAD

Vendu en lots de : 1

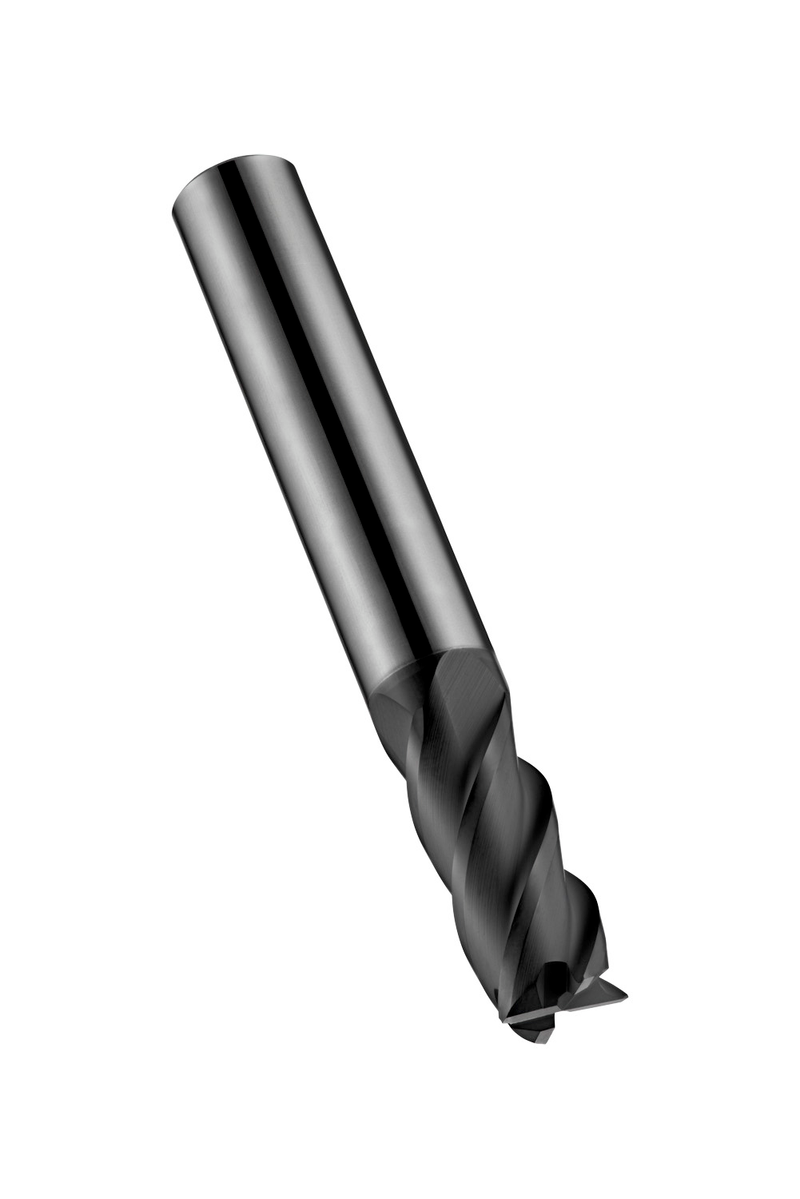

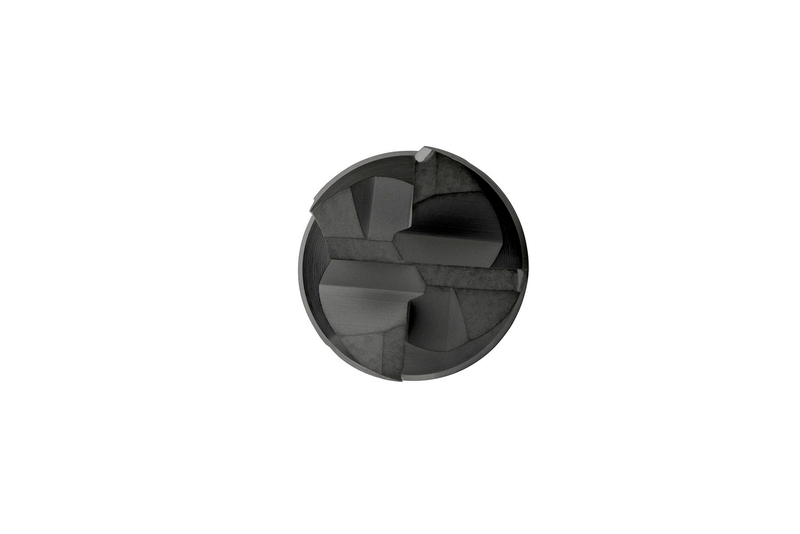

Fraise en bout courte 4 dents, diamètre 2mm, longueur de coupe 6.5mm et longueur totale 50mm, selon la norme DORMER avec une queue cylindrique de 3mm, carbure monobloc avec revêtement diamant, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulements et l'enfoncement dans le graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6122.0
GradeDiamant
Product Number6706607
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706607
EAN7320760681565
File Type Download
S6122.0 — Line Drawing PDF Download
