S6122.5
S6122.5
S6122.5
S6122.5

S6122.5

UGC DOR6706608
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$137.96 CAD - $137.96 CAD
$137.96 CAD
$137.96 CAD - $137.96 CAD
$137.96 CAD

Vendu en lots de : 1

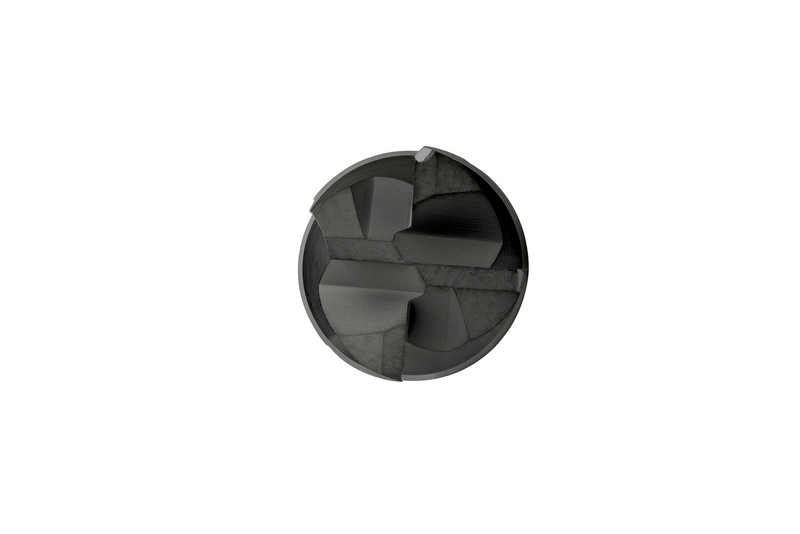

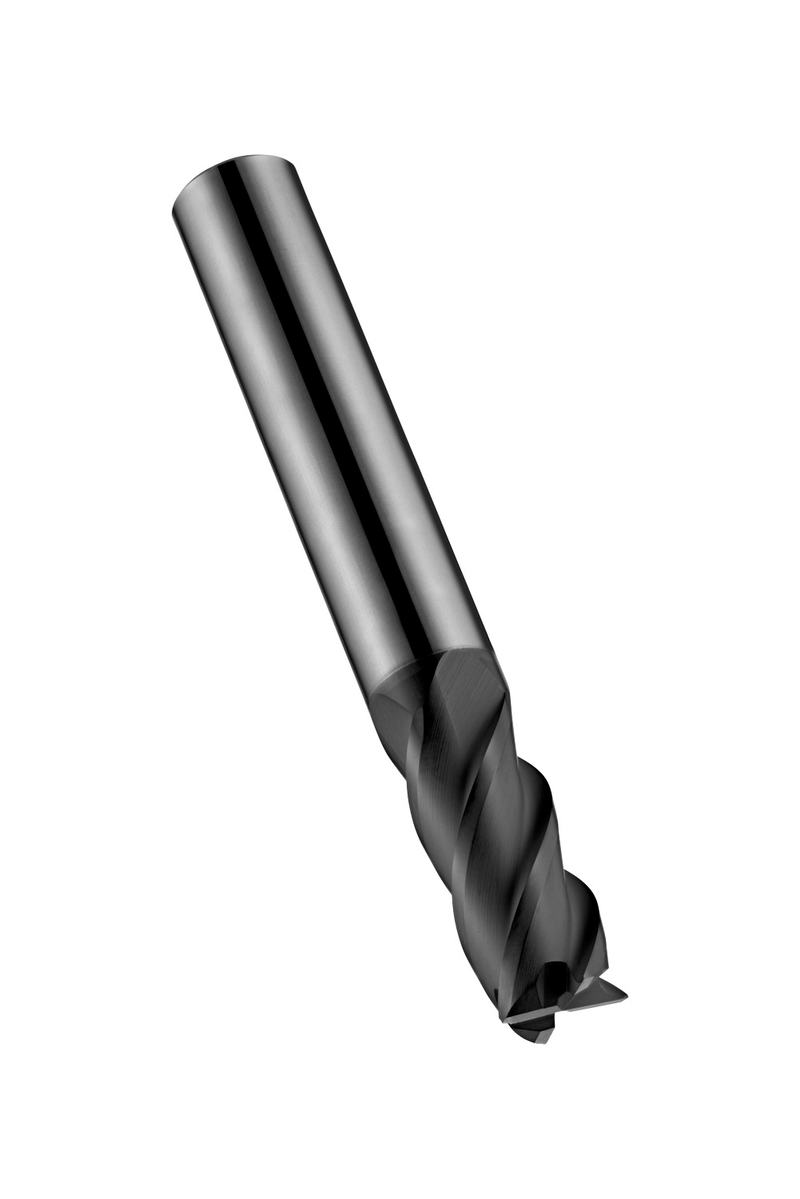

Fraise en bout série courte 4 dents, diamètre 2,5 mm avec une longueur de coupe de 6,5 mm et une longueur totale de 50 mm, selon la norme DORMER avec une queue cylindrique de 3 mm, en carbure monobloc avec revêtement diamant, hélice de 40° et angle de dépouille de 10° pour le fraisage en plongée et en surfaçage dans le graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6122.5
GradeDiamant
Product Number6706608
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706608
EAN7320760681572
File Type Download
S6122.5 — Line Drawing PDF Download
