UGC DOR6706610
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.19 CAD - $142.19 CAD
$142.19 CAD
$142.19 CAD - $142.19 CAD
$142.19 CAD

Vendu en lots de : 1

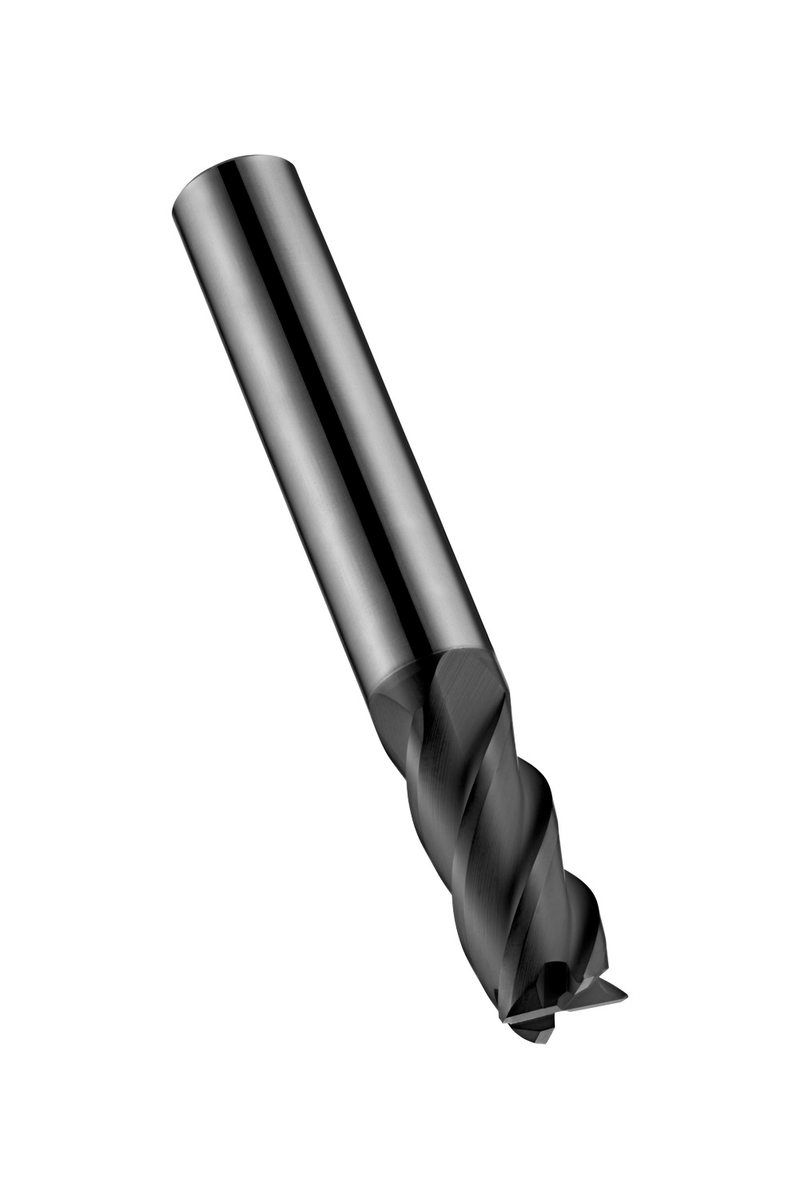

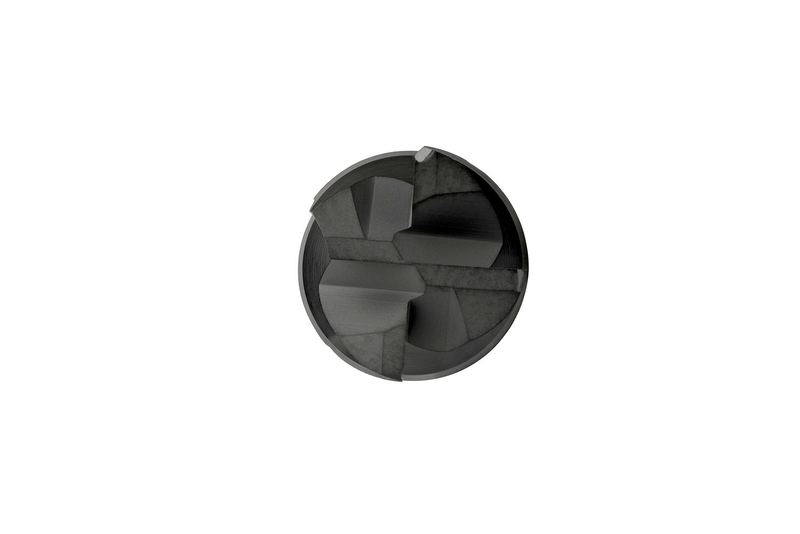

Fraise en bout série courte 4 dents, diamètre 4 mm avec une longueur de coupe de 12 mm et une longueur totale de 50 mm, selon la norme DORMER avec une queue cylindrique de 4 mm, en carbure monobloc avec revêtement diamant, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement et le plongée dans le graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6124.0
GradeDiamant
Product Number6706610
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706610
EAN7320760681596
File Type Download
S6124.0 — Line Drawing PDF Download
