S6126.0
S6126.0
S6126.0
S6126.0

S6126.0

UGC DOR6706612
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$144.83 CAD - $144.83 CAD
$144.83 CAD
$144.83 CAD - $144.83 CAD
$144.83 CAD

Vendu en lots de : 1

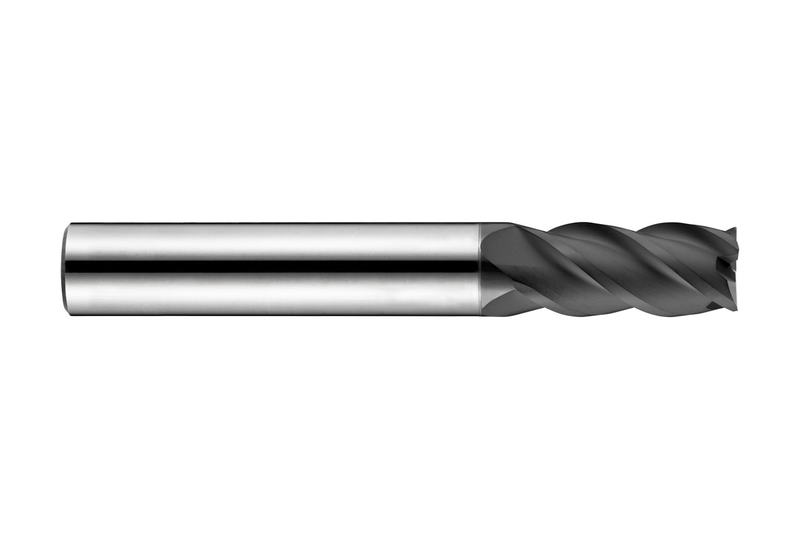

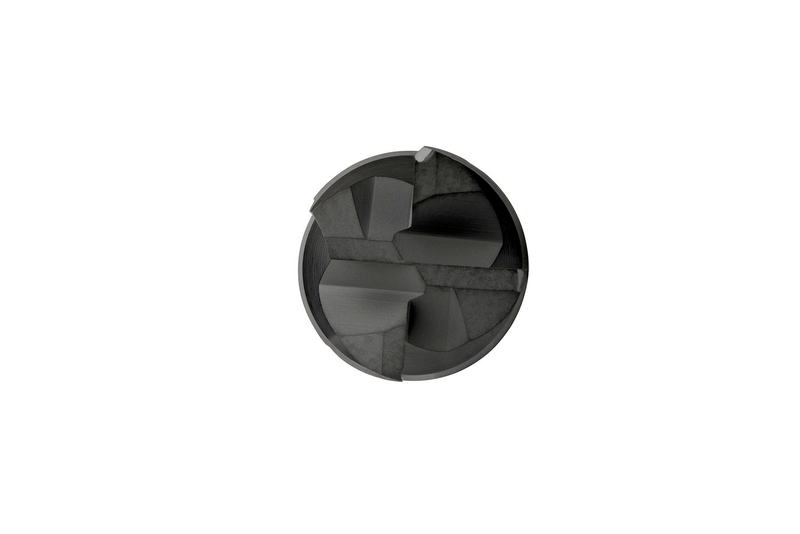

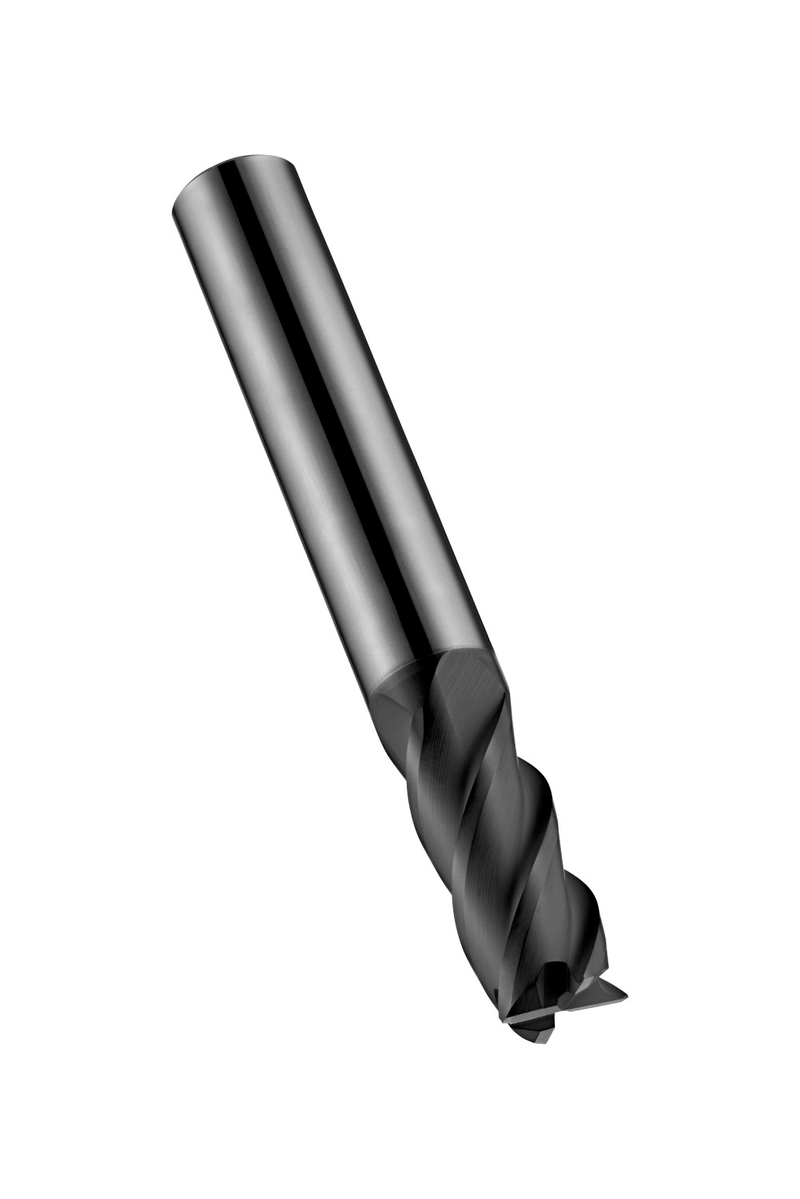

Fraise en carbure monobloc à 4 dents, série courte, diamètre 6 mm, longueur de coupe 20 mm et longueur totale 60 mm, selon la norme DORMER, avec queue cylindrique de 6 mm, revêtement diamant, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement et le plongement dans le graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6126.0
GradeDiamant
Product Number6706612
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm

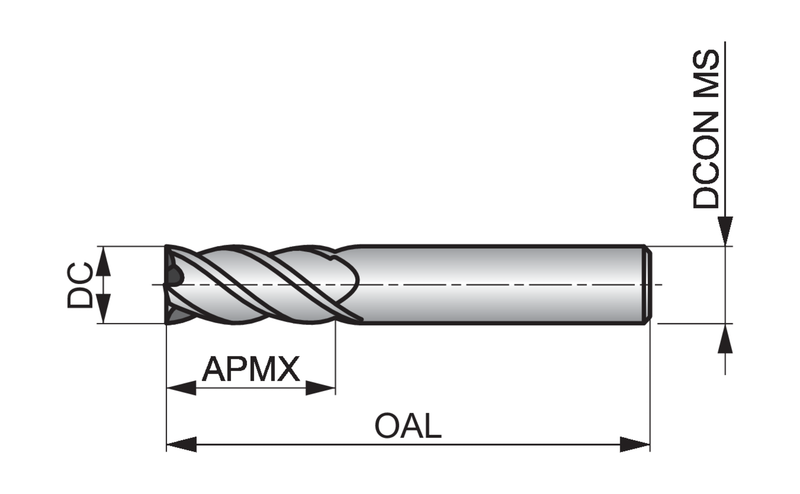

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706612
EAN7320760681619
File Type Download
S6126.0 — Line Drawing PDF Download
