UGC DOR6706613
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$202.44 CAD - $202.44 CAD
$202.44 CAD
$202.44 CAD - $202.44 CAD
$202.44 CAD

Vendu en lots de : 1

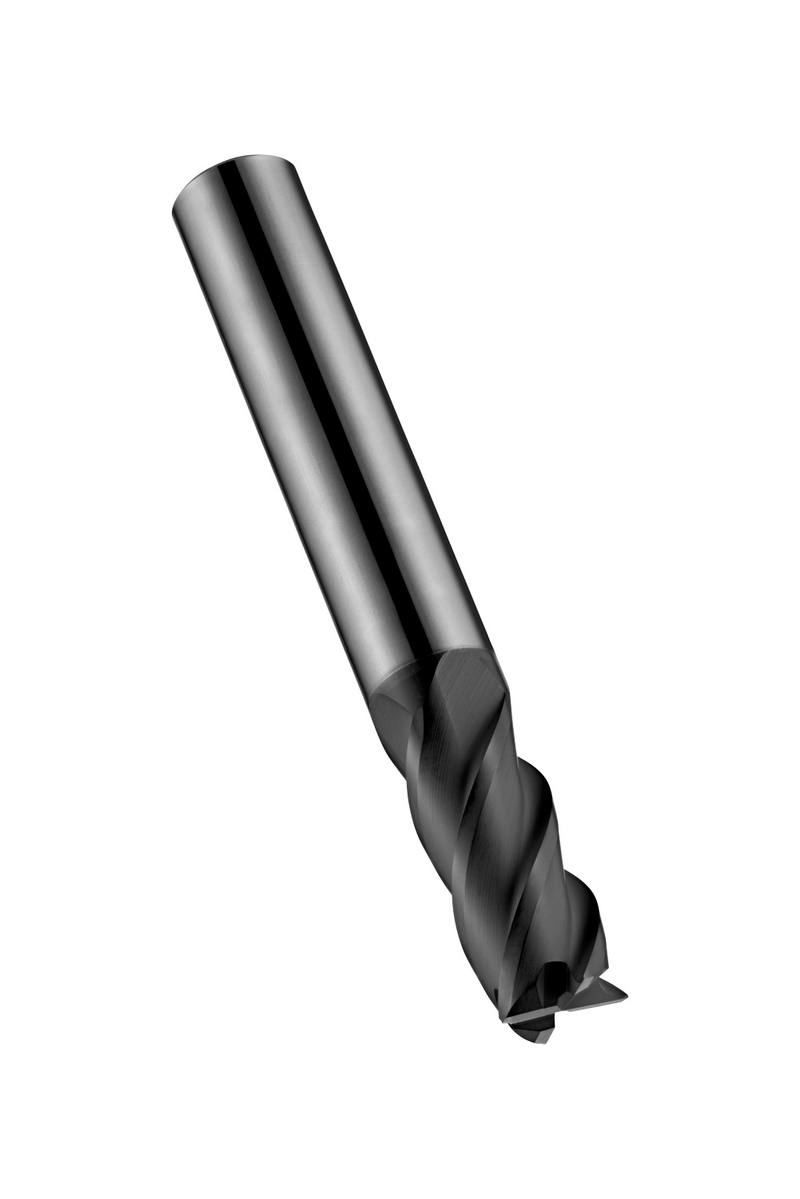

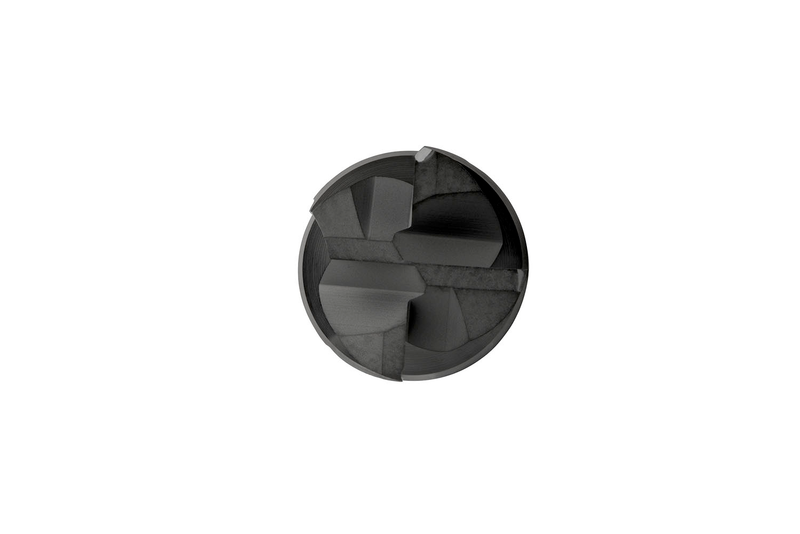

Fraise en bout courte 4 dents, diamètre 8mm avec une longueur de coupe de 20mm et une longueur totale de 64mm, selon la norme DORMER avec une queue cylindrique de 8mm, en carbure monobloc avec revêtement diamant, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement et le plongement dans le graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6128.0
GradeDiamant
Product Number6706613
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706613
EAN7320760681626
File Type Download
S6128.0 — Line Drawing PDF Download
