UGC DOR6706614
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$267.46 CAD - $267.46 CAD
$267.46 CAD
$267.46 CAD - $267.46 CAD
$267.46 CAD

Vendu en lots de : 1

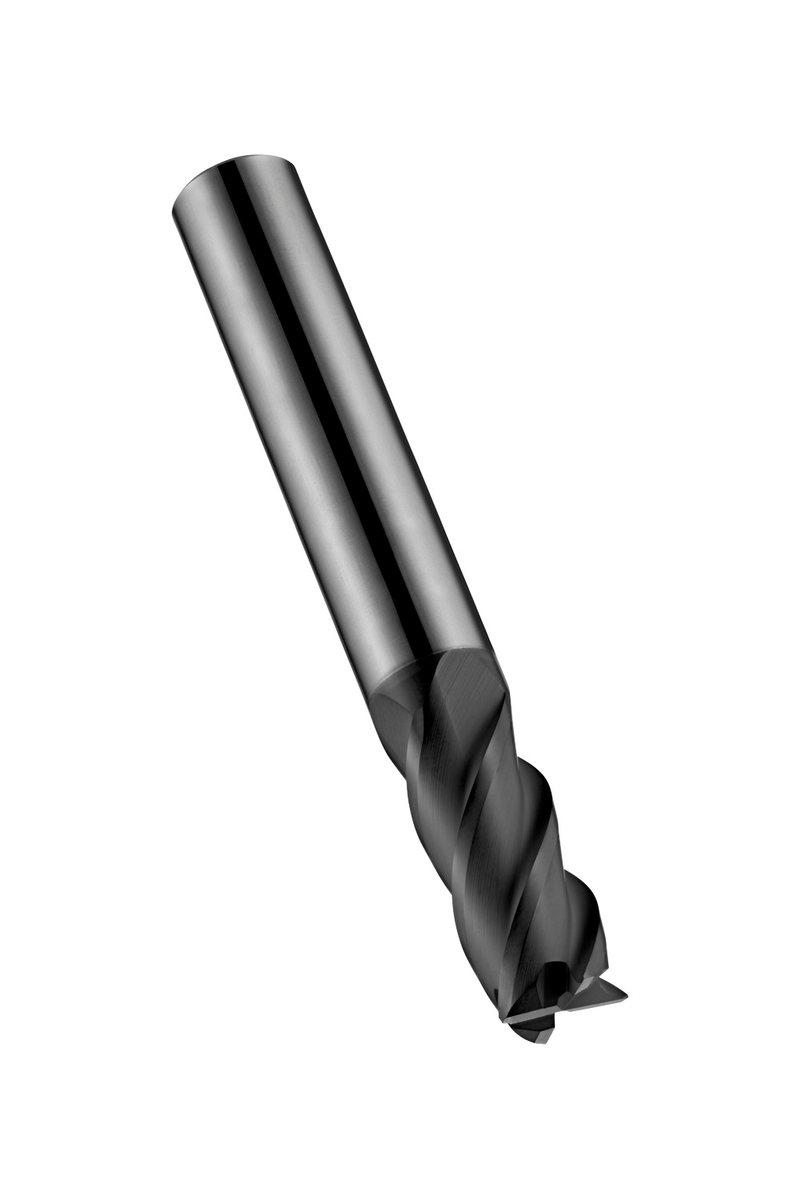

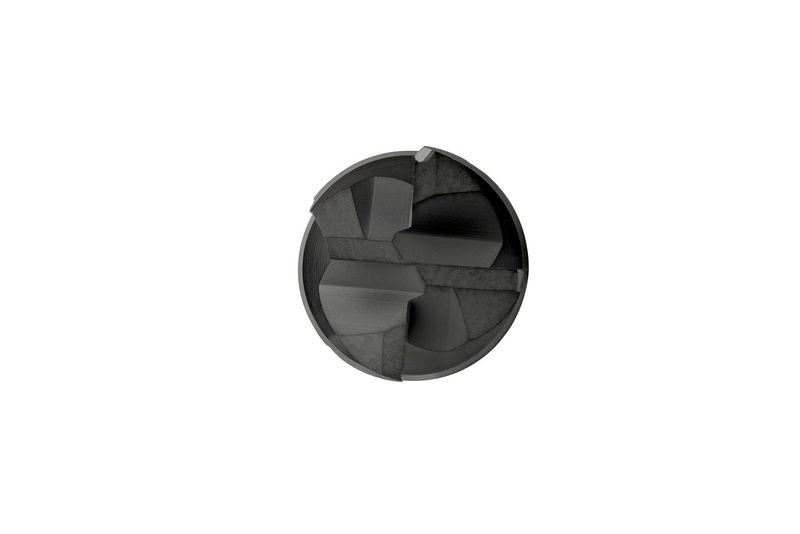

Fraise en bout série courte 4 dents, diamètre 10mm, longueur de coupe 22mm et longueur totale 70mm, selon la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec revêtement diamant, hélice 40° et angle de dépouille 10° pour le fraisage en plongée et d'épaulement dans le graphite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S61210.0
GradeDiamant
Product Number6706614
Product FamilyS612
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706614
EAN7320760681633
File Type Download
S61210.0 — Line Drawing PDF Download
