UGC DOR6706621
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.53 CAD - $111.53 CAD
$111.53 CAD
$111.53 CAD - $111.53 CAD
$111.53 CAD

Vendu en lots de : 1

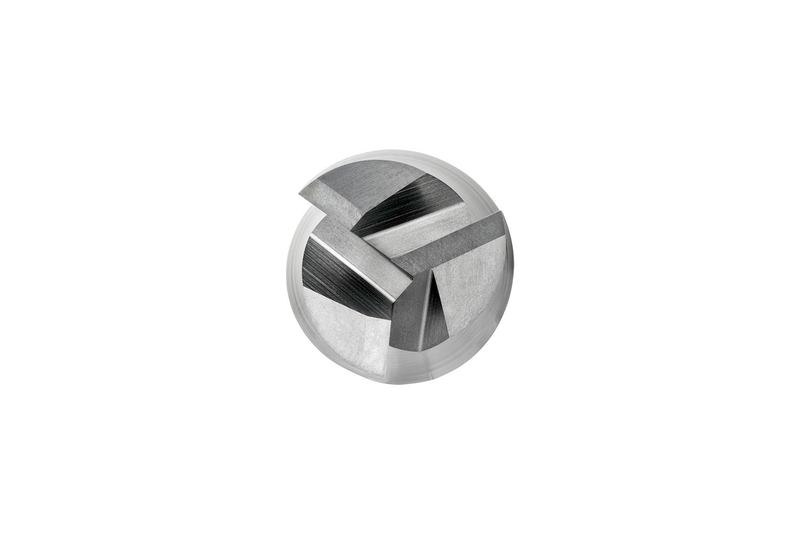

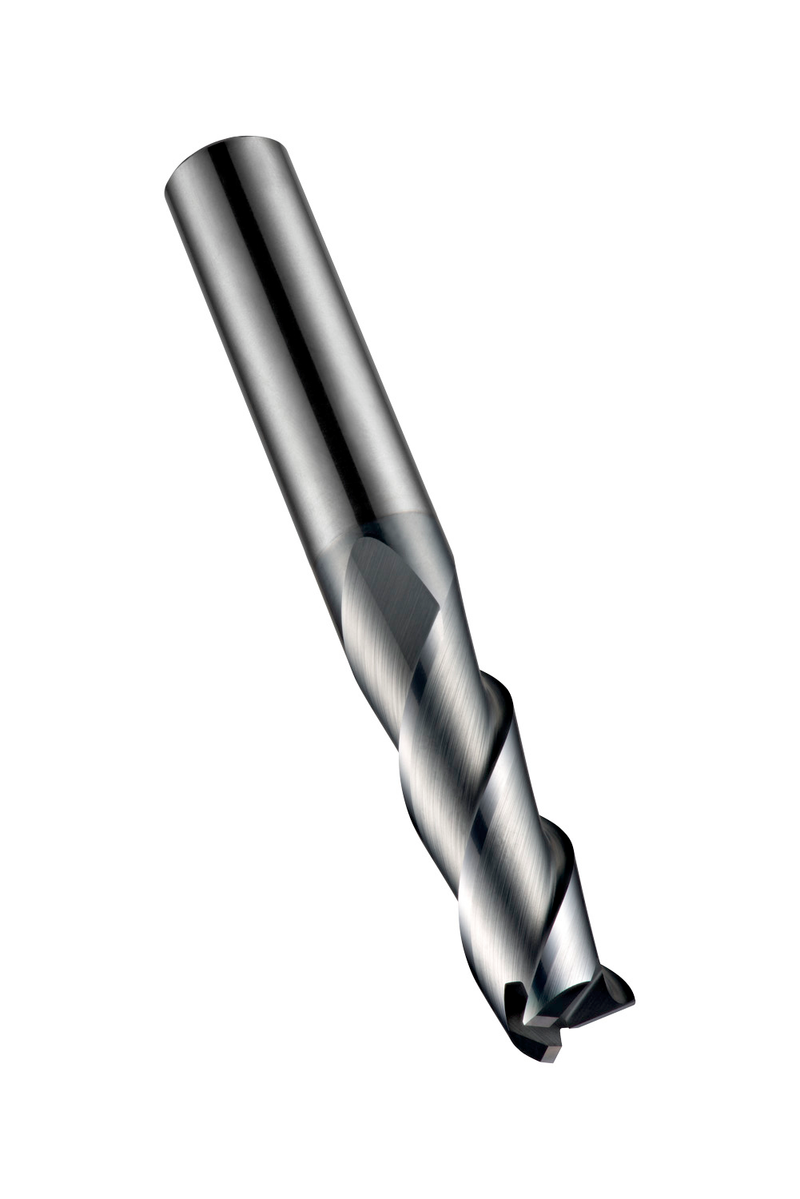

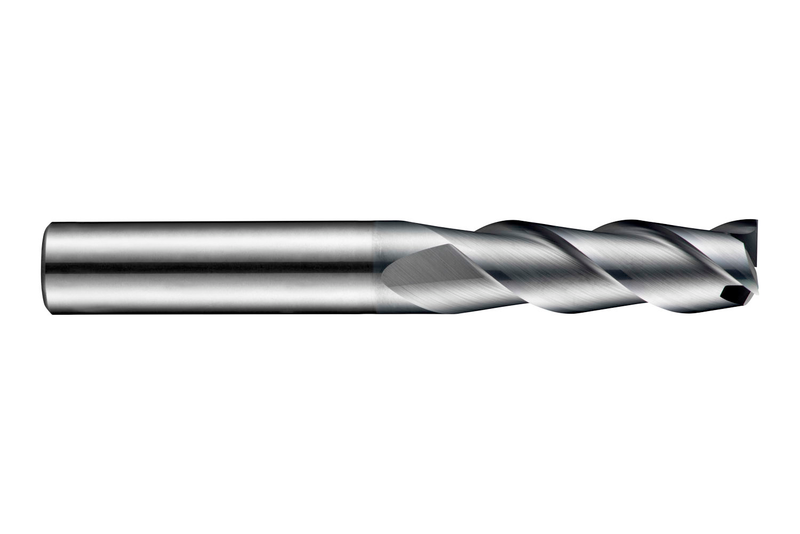

Fraise longue 3 dents, diamètre 10mm avec une longueur de coupe de 31mm et une longueur totale de 75mm, selon la norme DORMER avec un diamètre de queue de 10mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71410.0
GradeAlCrN
Product Number6706621
Product FamilyS714
Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm

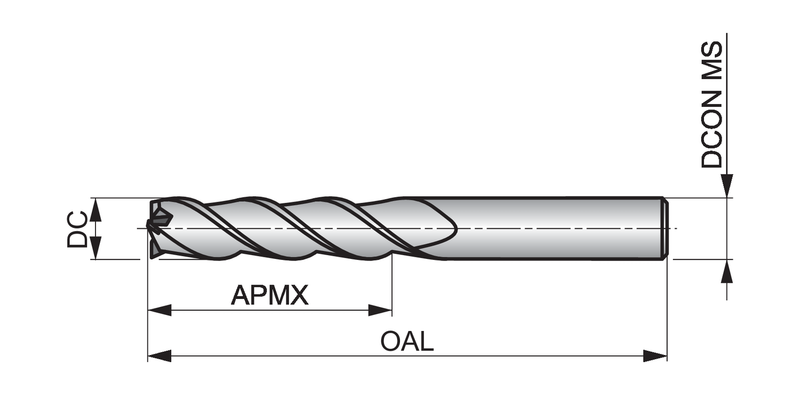

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706621
EAN7320760681701
File Type Download
S71410.0 — Line Drawing PDF Download
