UGC DOR6706628
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

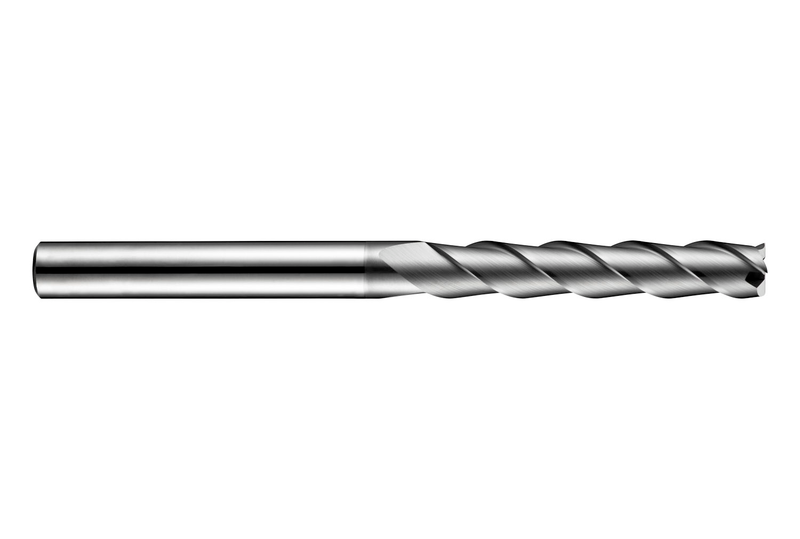

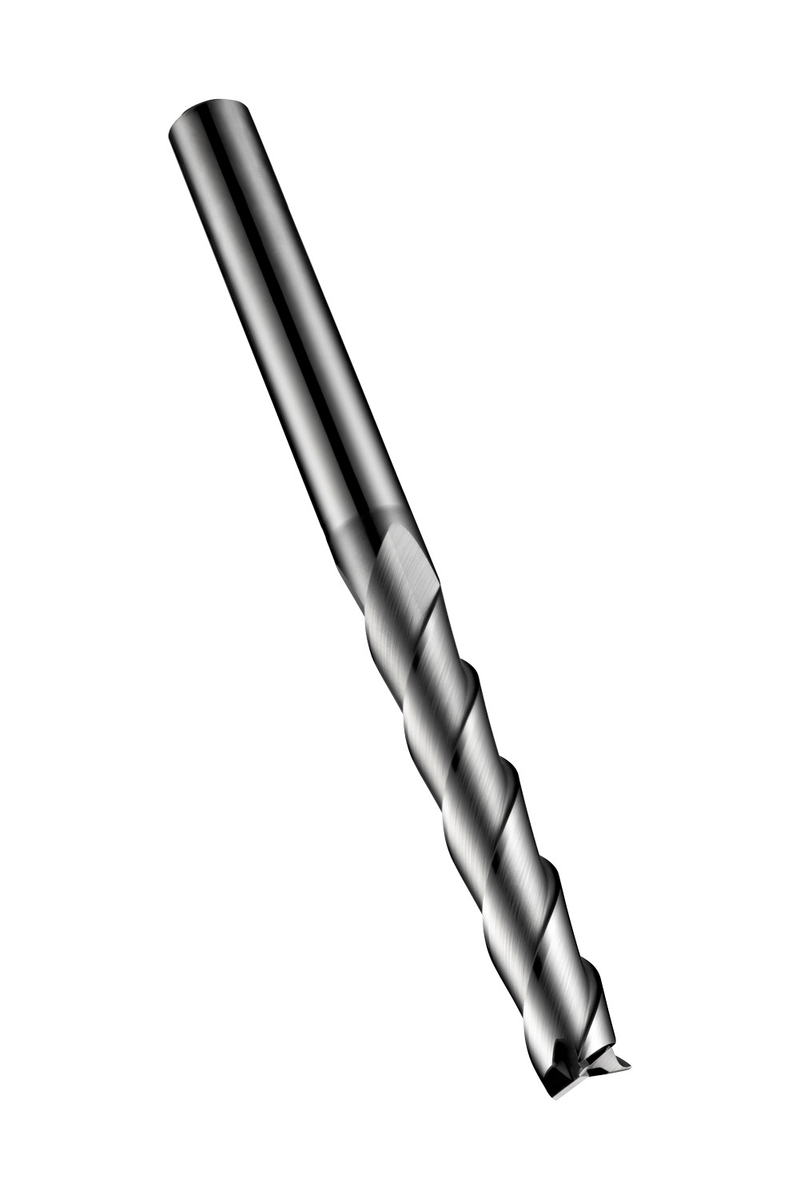

Fraise en bout série extra longue à 3 dents, diamètre 4mm, longueur de coupe 31mm et longueur totale 100mm, selon la norme DORMER avec un corps cylindrique 4mm, en carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulement dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7154.0
GradeAlCrN
Product Number6706628
Product FamilyS715
Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm

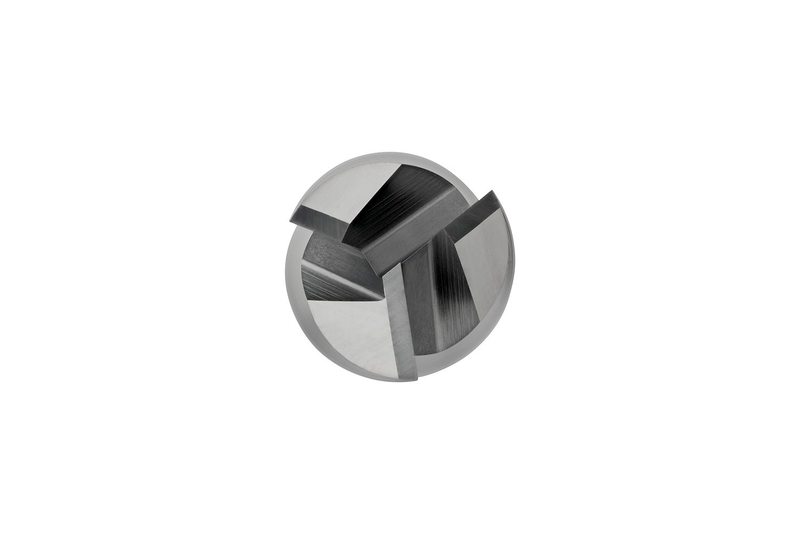

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706628
EAN7320760681770
File Type Download

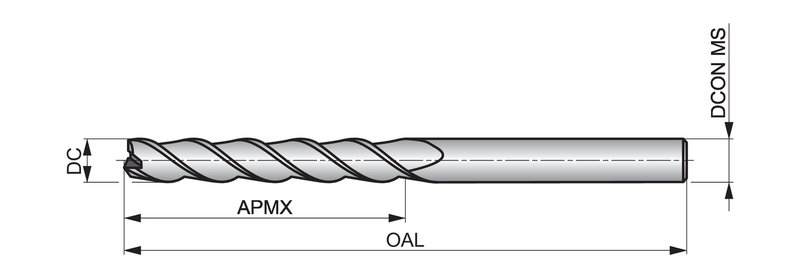

S7154.0 — Line Drawing PDF Download
