UGC DOR6706629
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.47 CAD - $73.47 CAD
$73.47 CAD
$73.47 CAD - $73.47 CAD
$73.47 CAD

Vendu en lots de : 1

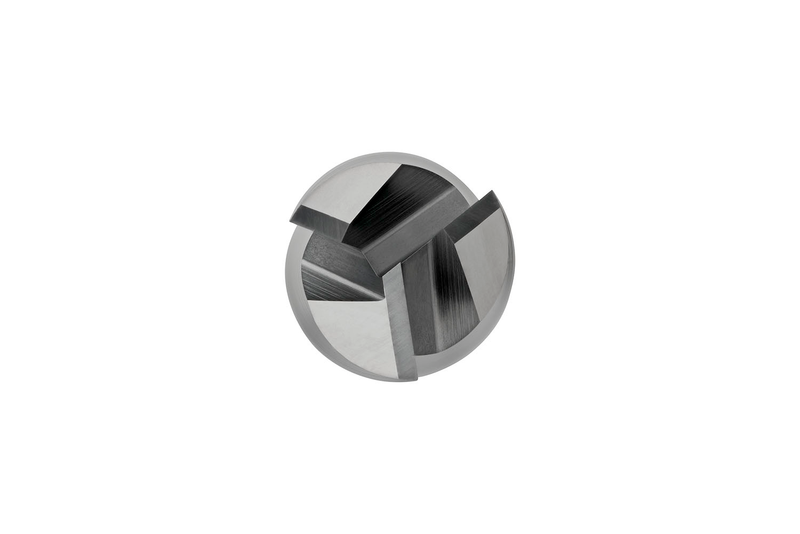

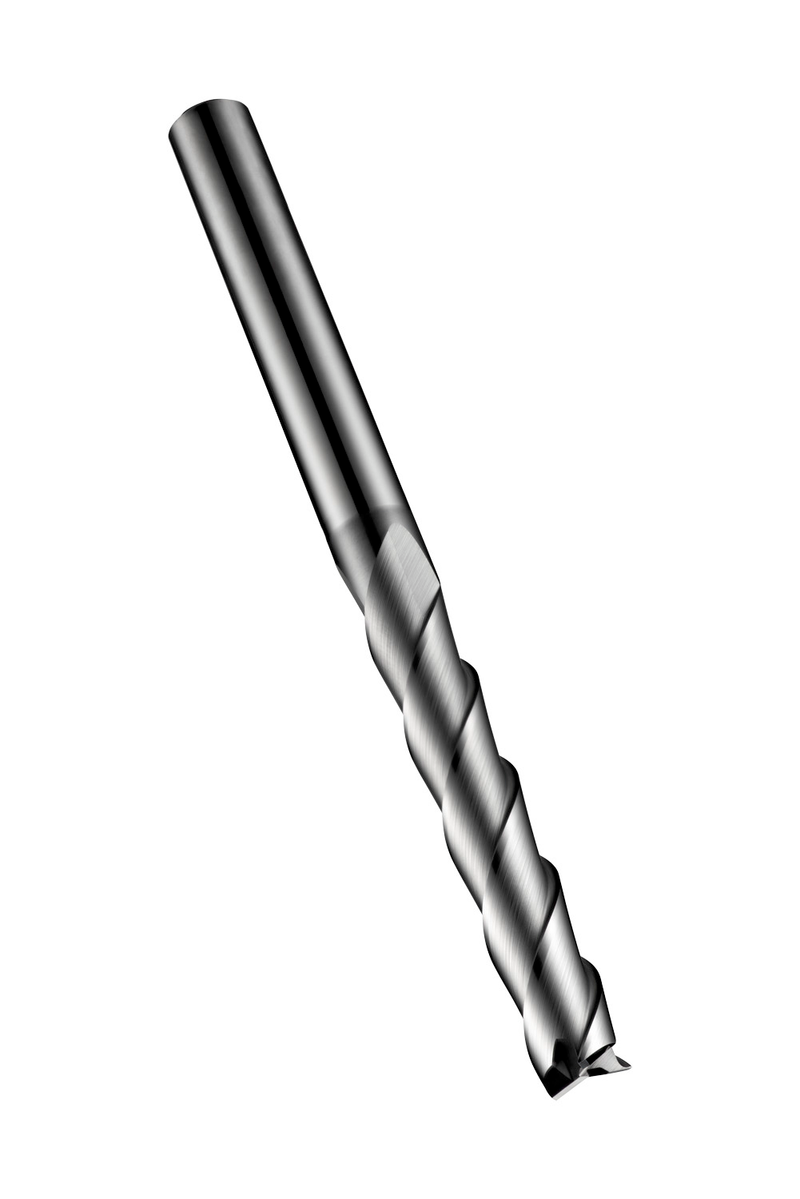

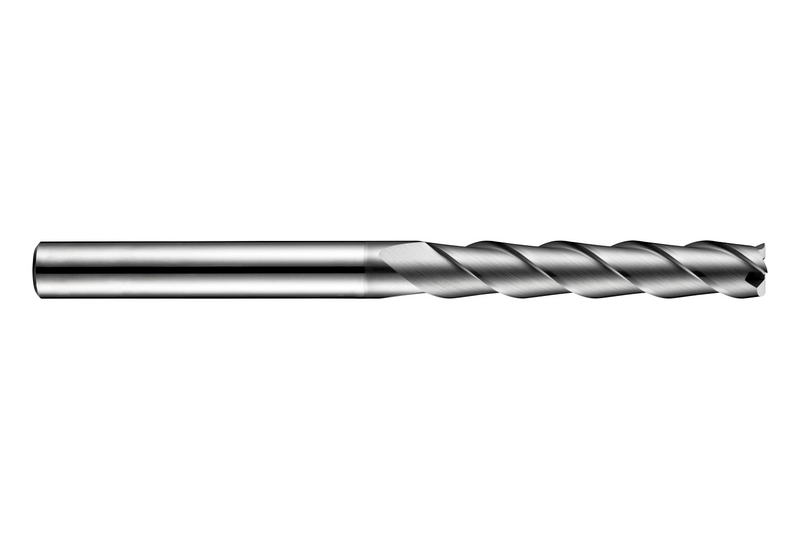

Fraise en bout extra-longue 3 dents, diamètre 5mm avec une longueur de coupe de 31mm et une longueur totale de 100mm, selon le standard DORMER, avec queue cylindrique de 5mm, en carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille de 10° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7155.0
GradeAlCrN
Product Number6706629
Product FamilyS715
Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm

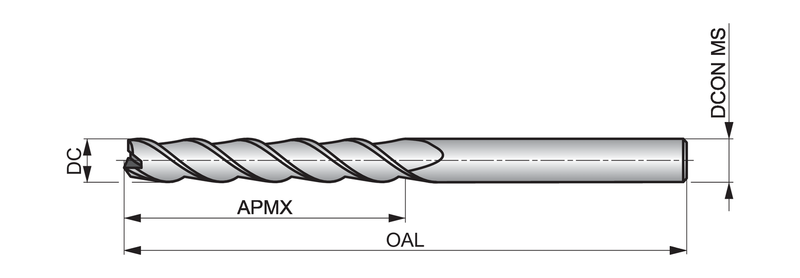

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706629
EAN7320760681787
File Type Download
S7155.0 — Line Drawing PDF Download
