UGC DOR6706631
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.07 CAD - $103.07 CAD
$103.07 CAD
$103.07 CAD - $103.07 CAD
$103.07 CAD

Vendu en lots de : 1

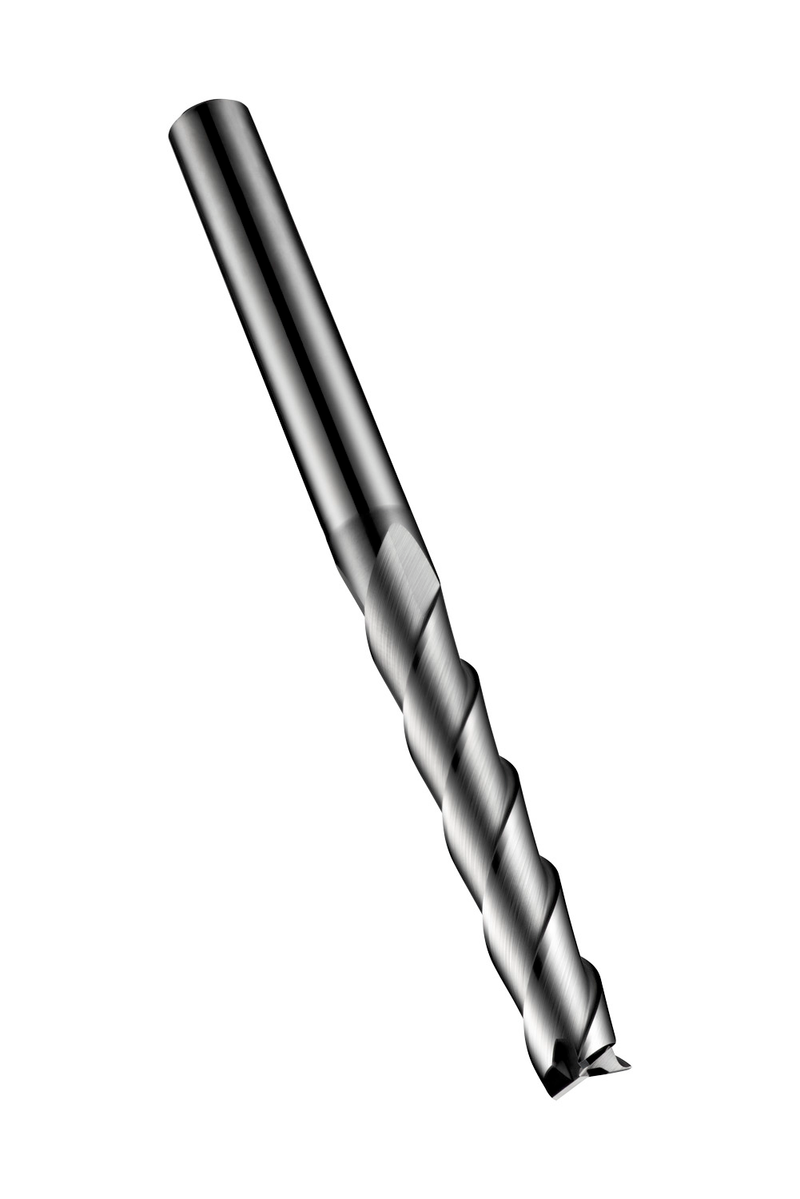

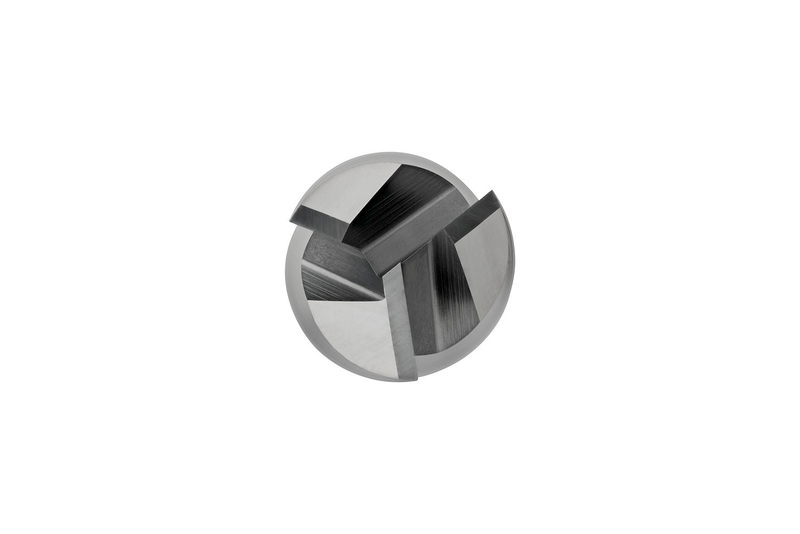

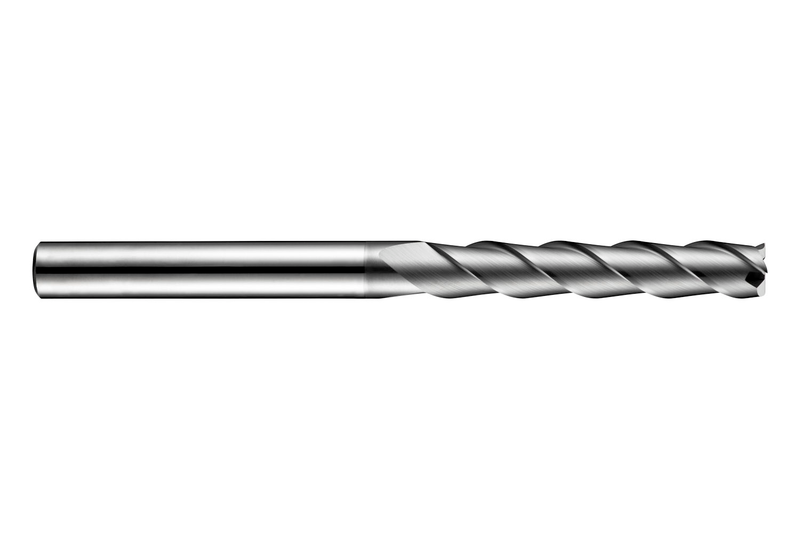

Fraise en bout série extra-longue à 3 dents, diamètre 8mm avec une longueur de coupe de 41mm et une longueur totale de 100mm, selon la norme DORMER avec une queue cylindrique de 8mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7158.0
GradeAlCrN
Product Number6706631
Product FamilyS715
Insert Geometry
Depth of Cut Max — in (APMX)1.6142"
Depth of Cut Max — mm (APMX)41.0 mm

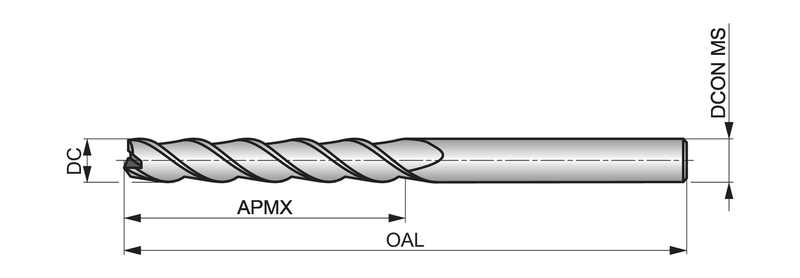

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706631
EAN7320760681800
File Type Download
S7158.0 — Line Drawing PDF Download
