S71512.0
S71512.0
S71512.0
S71512.0

S71512.0

UGC DOR6706633
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$188.17 CAD - $188.17 CAD
$188.17 CAD
$188.17 CAD - $188.17 CAD
$188.17 CAD

Vendu en lots de : 1

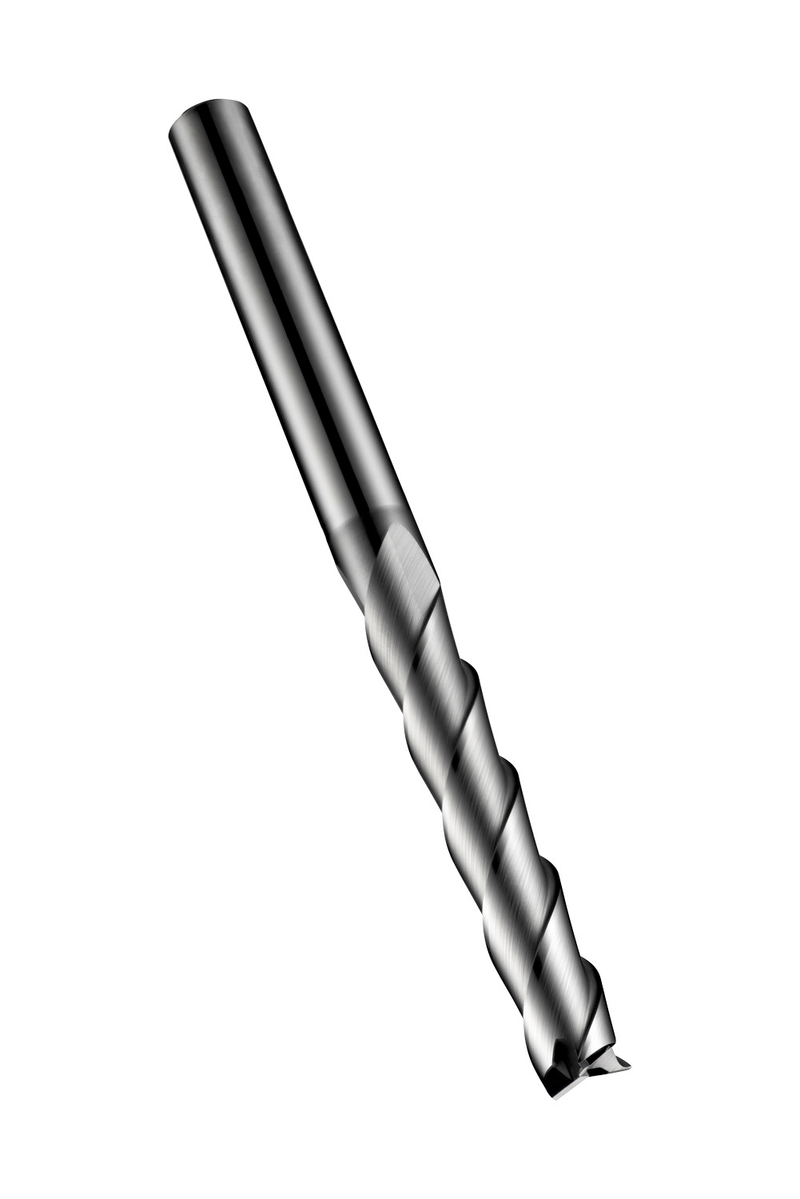

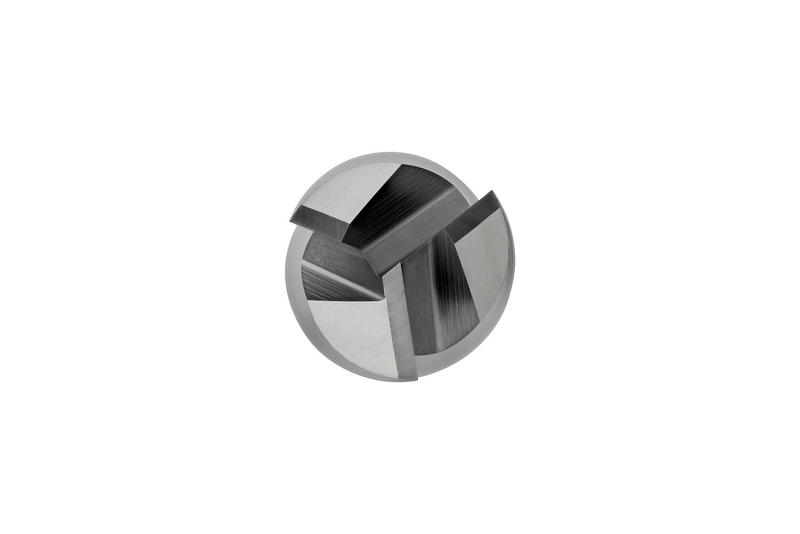

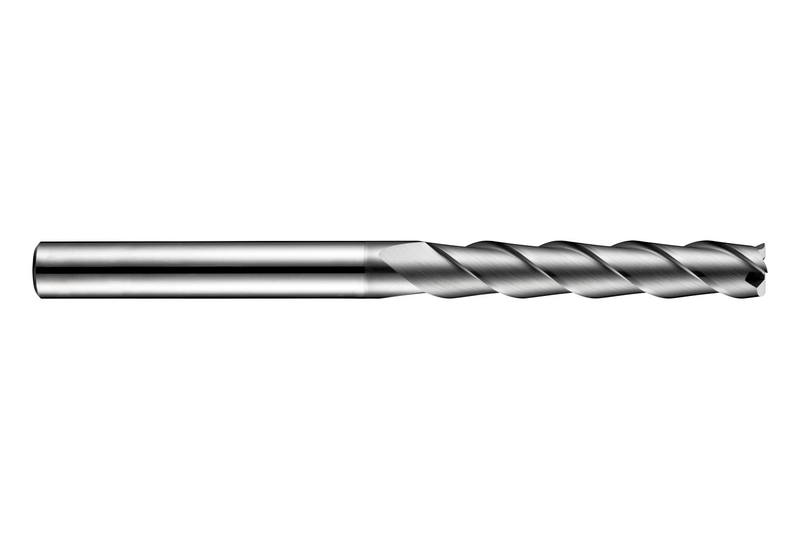

Fraise en bout extra-longue 3 dents, diamètre 12mm avec une longueur de coupe de 75mm et une longueur totale de 150mm, selon la norme DORMER, avec queue cylindrique de 12mm, en carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71512.0
GradeAlCrN
Product Number6706633
Product FamilyS715
Insert Geometry

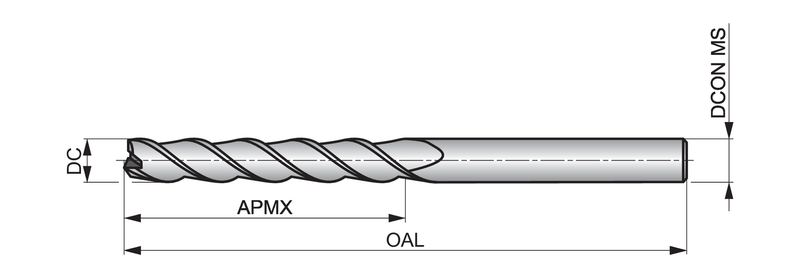

Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706633
EAN7320760681824
File Type Download
S71512.0 — Line Drawing PDF Download
