UGC DOR6706634
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.74 CAD - $235.74 CAD
$235.74 CAD
$235.74 CAD - $235.74 CAD
$235.74 CAD

Vendu en lots de : 1

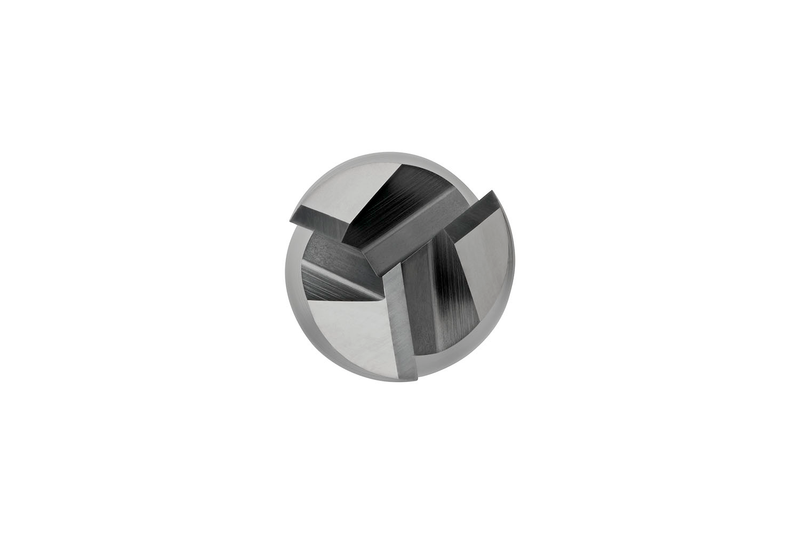

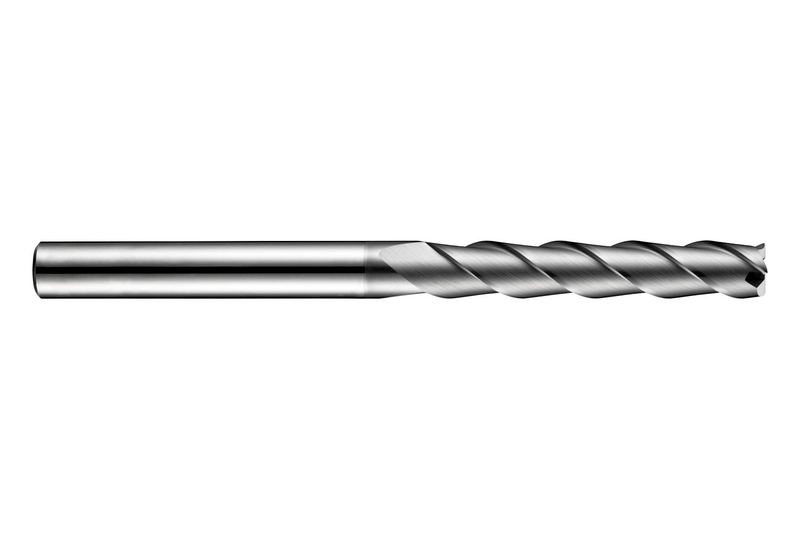

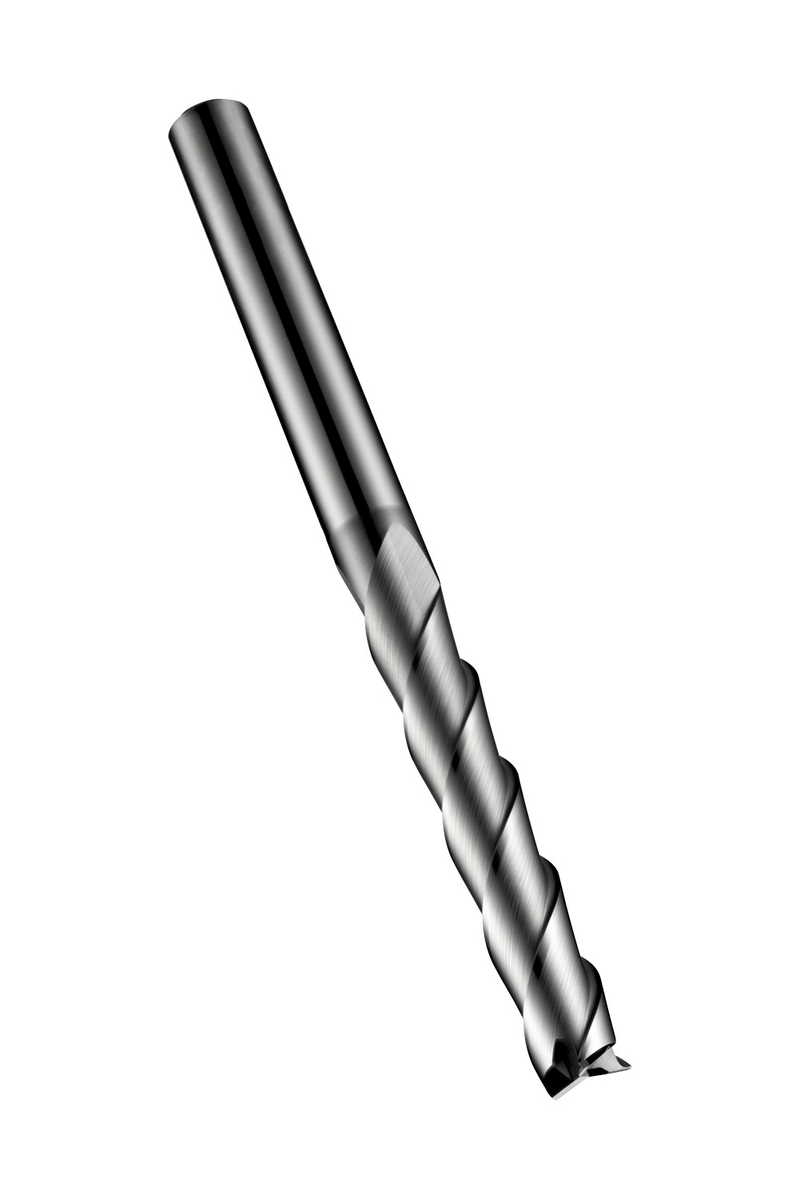

Fraise en bout série extra-longue à 3 dents, diamètre 14 mm avec une longueur de coupe de 75 mm et une longueur totale de 150 mm, conforme à la norme DORMER avec une queue cylindrique de 14 mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71514.0
GradeAlCrN
Product Number6706634
Product FamilyS715
Insert Geometry
Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706634
EAN7320760681831
File Type Download

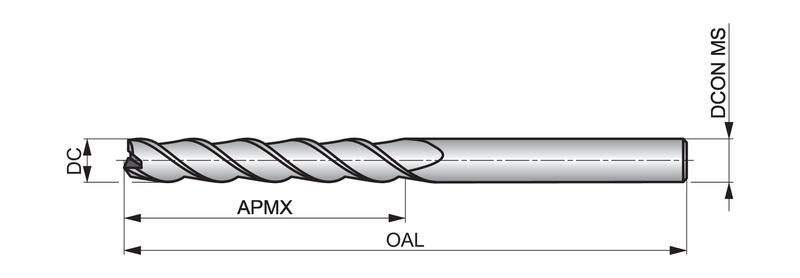

S71514.0 — Line Drawing PDF Download
