UGC DOR6706648
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$498.44 CAD - $498.44 CAD
$498.44 CAD
$498.44 CAD - $498.44 CAD
$498.44 CAD

Vendu en lots de : 1

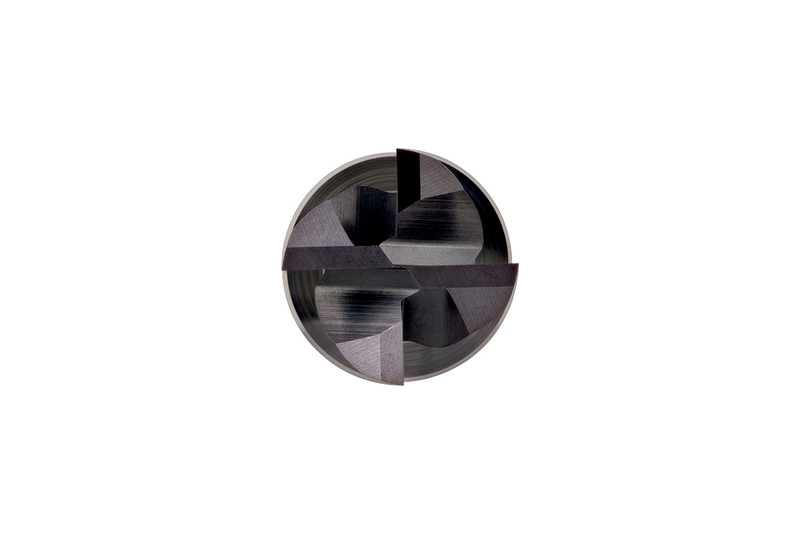

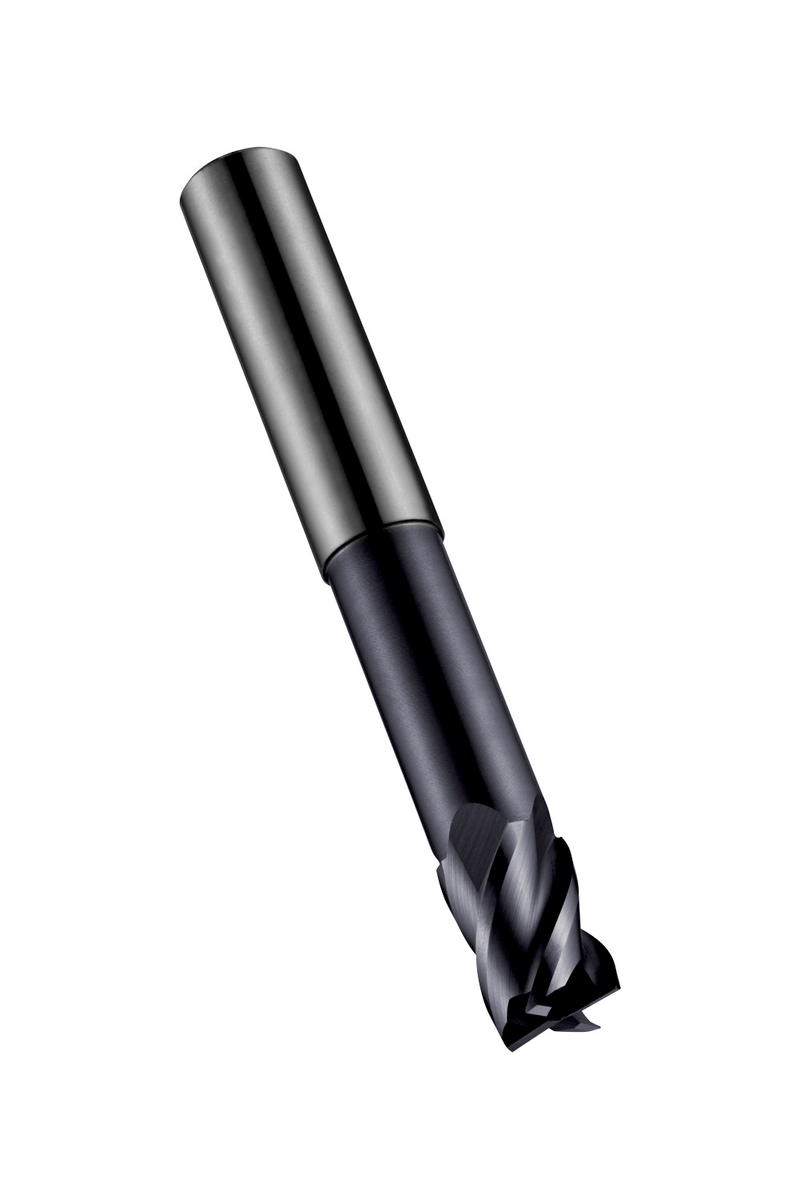

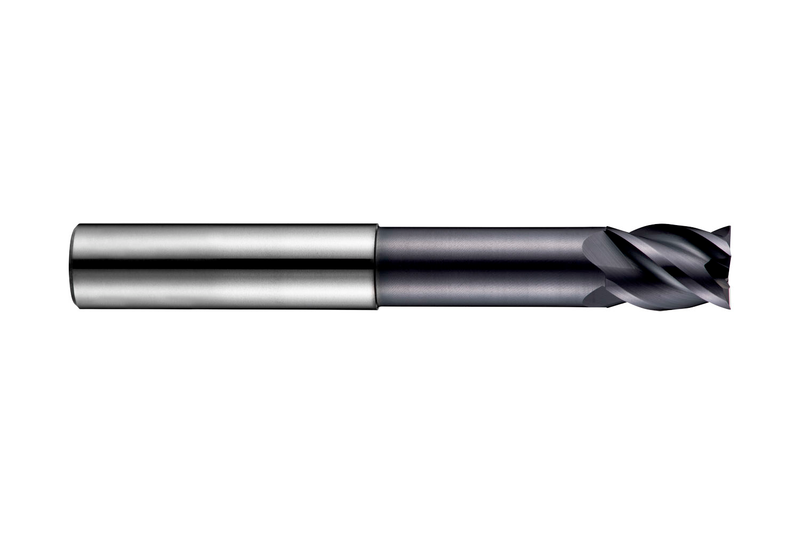

Fraise en bout extra-courte à 4 dents, diamètre 20mm, longueur de coupe 26mm, longueur totale 125mm et portée 85mm avec dégagement de col, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec revêtement AlTiN, hélice 40° et angle de dépouille 3° pour le fraisage d'épaulements et en plongée dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S21920.0
GradeAlTiN
Product Number6706648
Product FamilyS219
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm

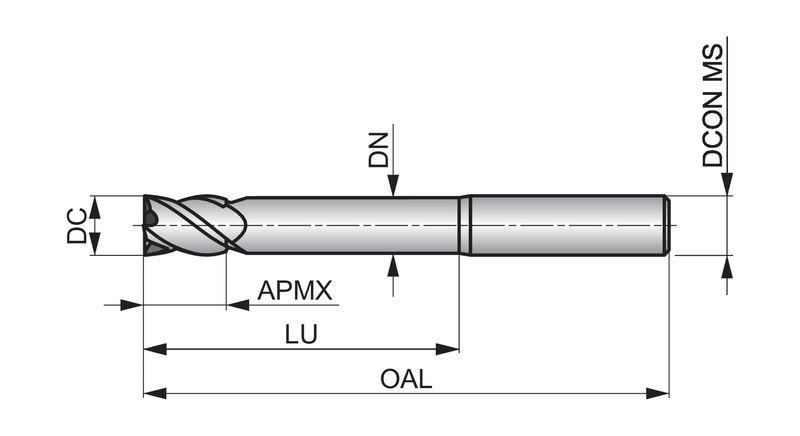

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706648
EAN7320760681978
File Type Download
S21920.0 — Line Drawing PDF Download
