UGC DOR6706650
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.01 CAD - $102.01 CAD
$102.01 CAD
$102.01 CAD - $102.01 CAD
$102.01 CAD

Vendu en lots de : 1

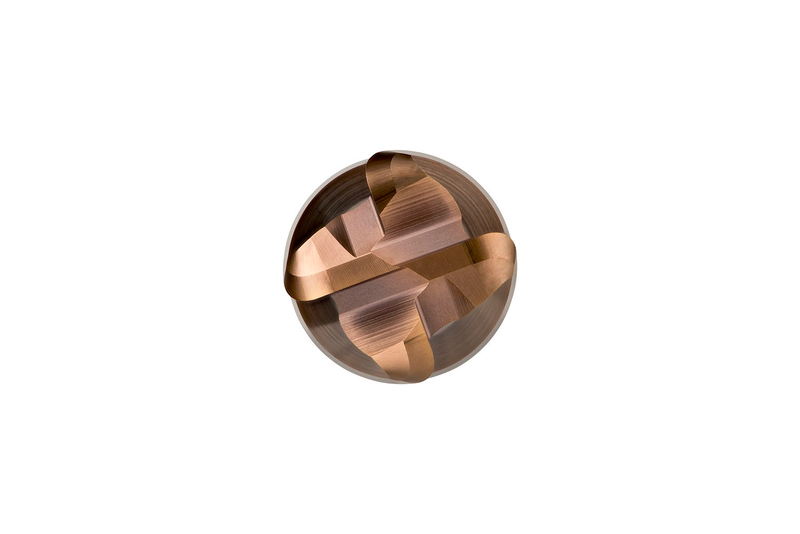

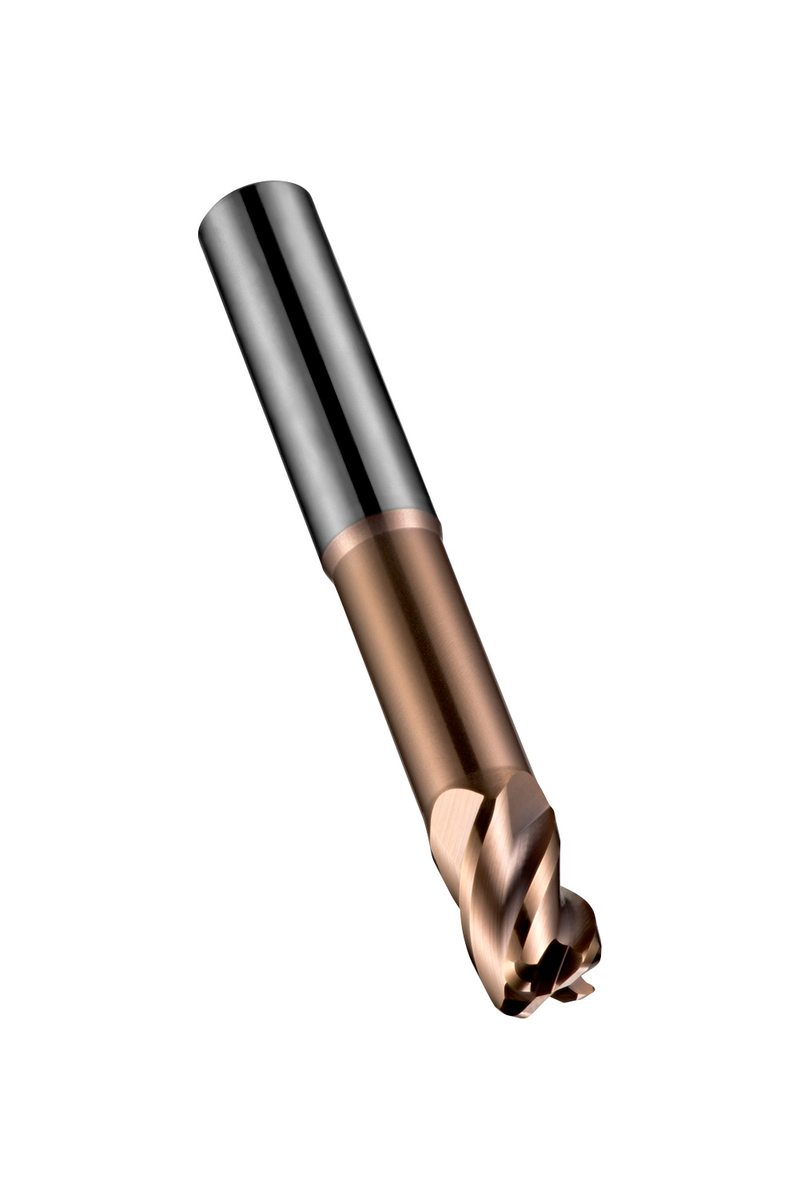

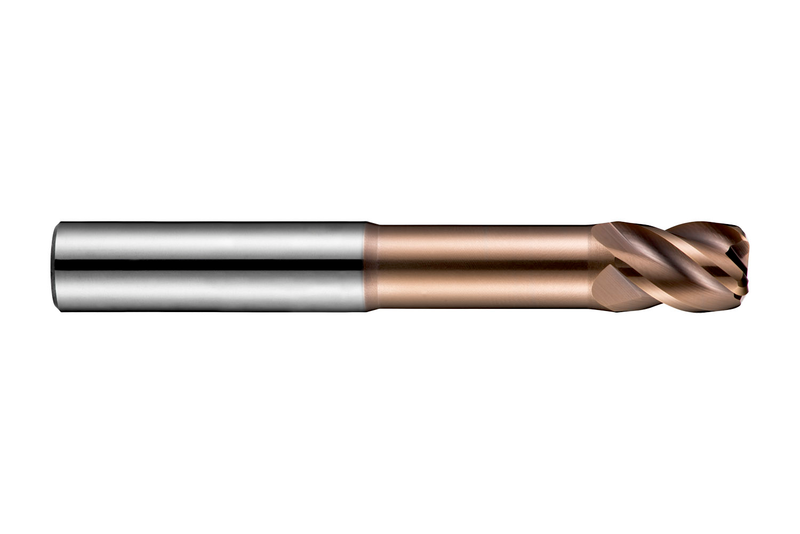

Fraise en bout à rayon de coin extra-courte avec 4 arêtes de coupe, diamètre 4 mm avec une longueur de coupe de 8 mm, longueur totale de 75 mm, portée de 32 mm avec dégagement de col et rayons de coin de 0,3 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le fraisage progressif en plongée, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5244.0XR0.3
GradeTiSiN
Product Number6706650
Product FamilyS524

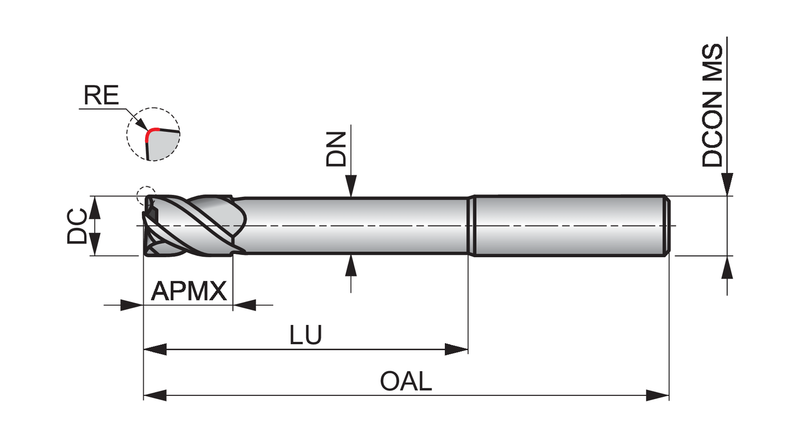

Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706650
EAN7320760681992
File Type Download
S5244.0XR0.3 — Line Drawing PDF Download
