S5244.0XR0.5
S5244.0XR0.5
S5244.0XR0.5
S5244.0XR0.5

S5244.0XR0.5

UGC DOR6706651
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.01 CAD - $102.01 CAD
$102.01 CAD
$102.01 CAD - $102.01 CAD
$102.01 CAD

Vendu en lots de : 1

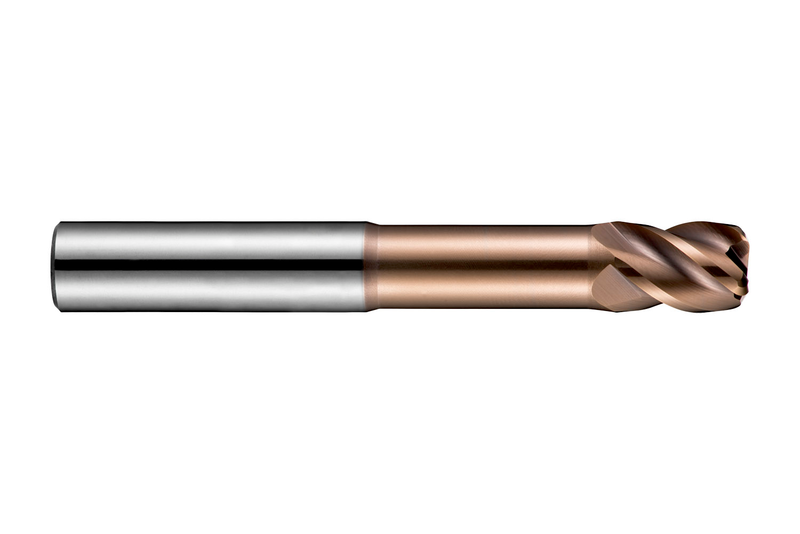

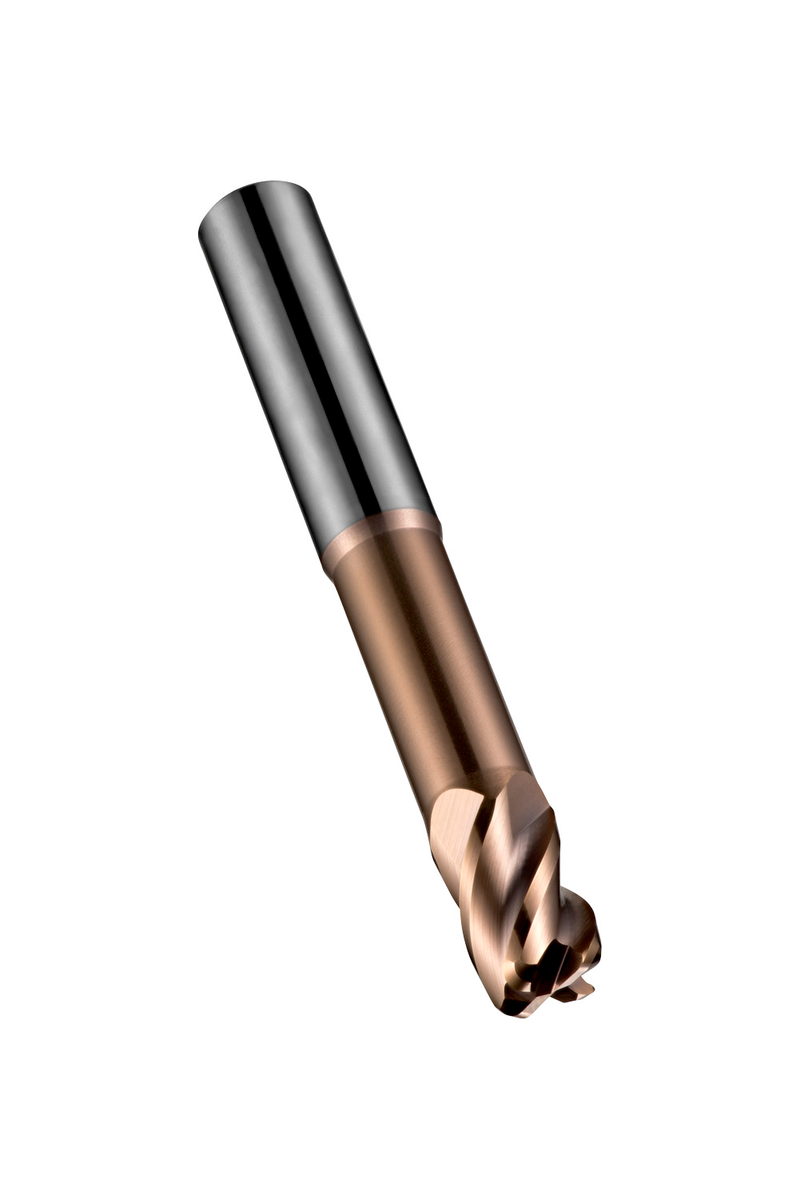

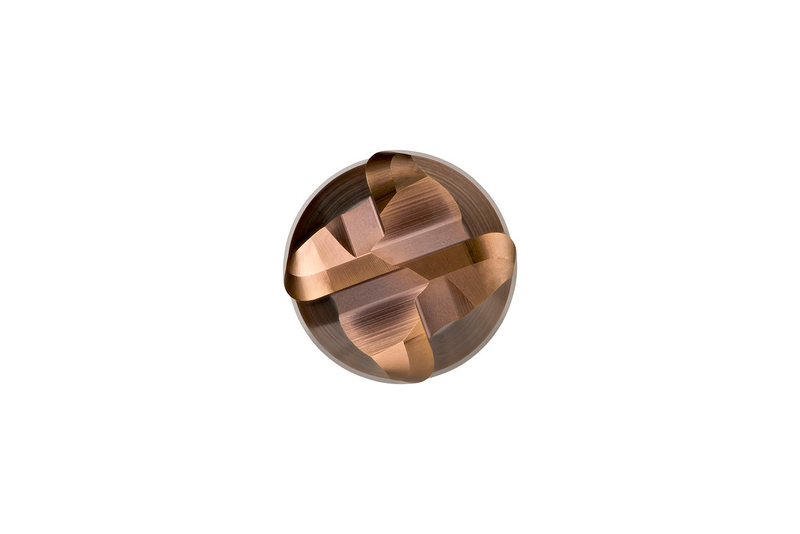

Fraise en carbure monobloc à quatre dents, à rayon de coin extra court, diamètre de 4 mm avec une longueur de coupe de 8 mm, une longueur totale de 75 mm, une portée de 32 mm avec dégagement de col et des rayons de coin de 0,5 mm, conforme à la norme DORMER avec une queue cylindrique de 6 mm, revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulement, le fraisage en plongée, le fraisage progressif en plongée, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5244.0XR0.5
GradeTiSiN
Product Number6706651
Product FamilyS524

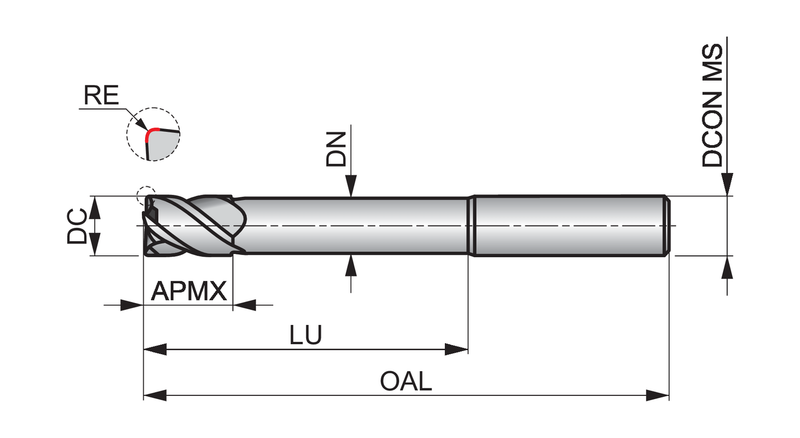

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706651
EAN7320760682005
File Type Download
S5244.0XR0.5 — Line Drawing PDF Download
