S5246.0XR0.5
S5246.0XR0.5
S5246.0XR0.5
S5246.0XR0.5

S5246.0XR0.5

UGC DOR6706654
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.07 CAD - $103.07 CAD
$103.07 CAD
$103.07 CAD - $103.07 CAD
$103.07 CAD

Vendu en lots de : 1

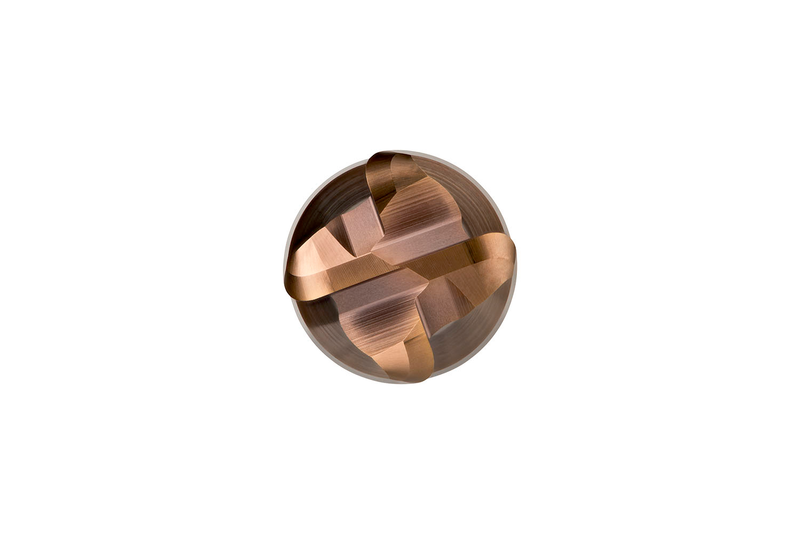

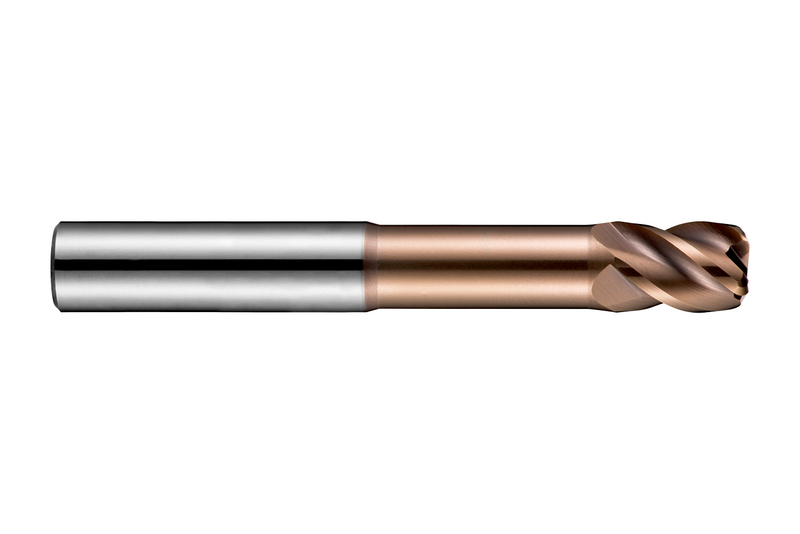

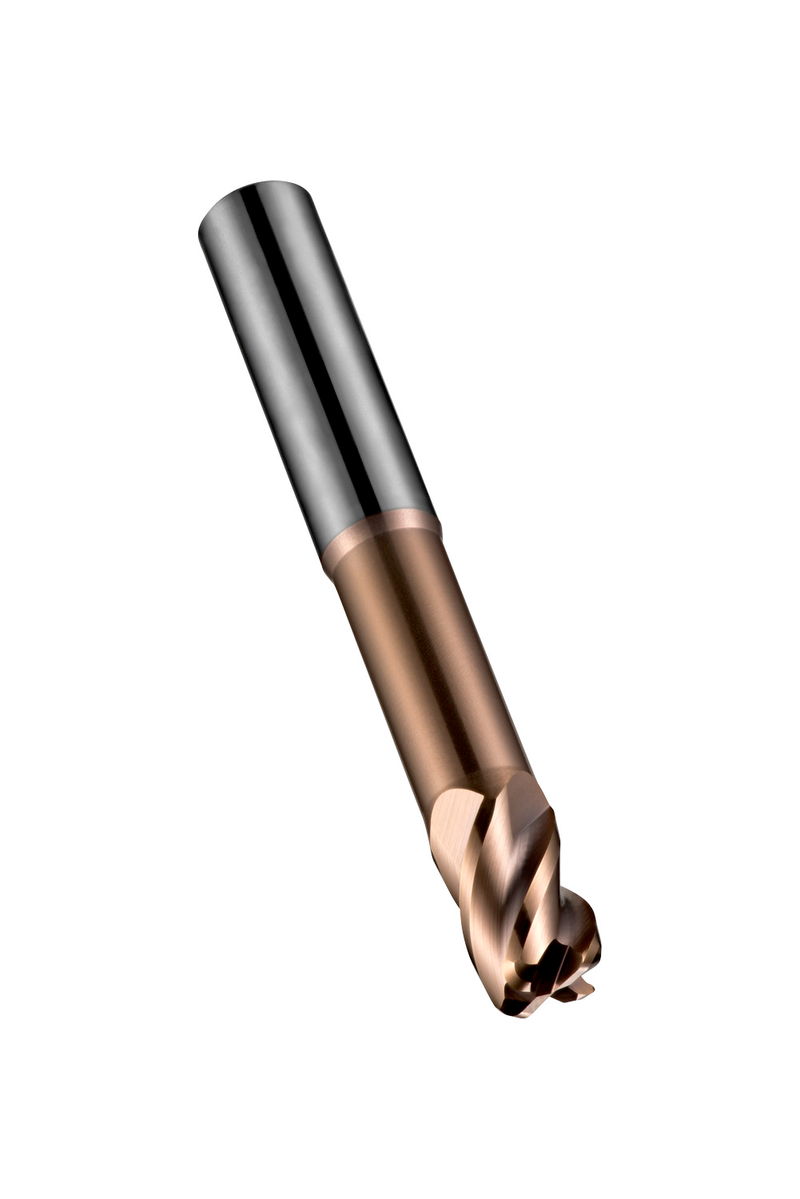

Fraise en bout à rayon de coin extra-courte 4 dents, diamètre 6mm, longueur de coupe 10mm, longueur totale 75mm, portée 40mm avec dégagement et rayons de coin de 0.5mm, selon le standard DORMER avec une queue cylindrique de 6mm, carbure monobloc avec revêtement TiSiN, hélice à 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le fraisage progressif par plongement, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5246.0XR0.5
GradeTiSiN
Product Number6706654
Product FamilyS524

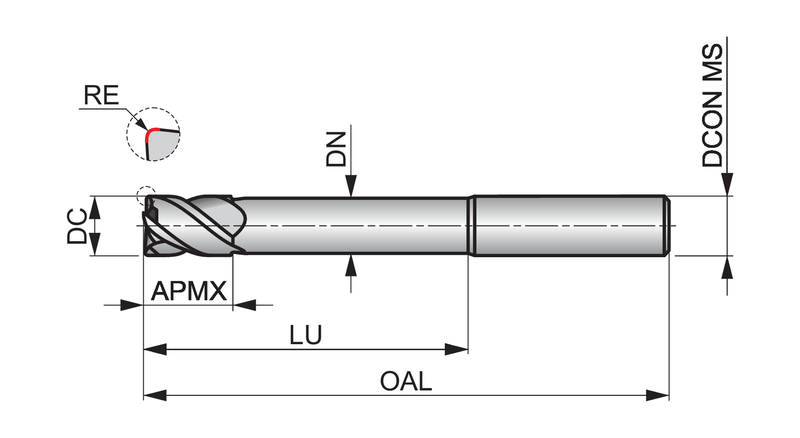

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706654
EAN7320760682036
File Type Download
S5246.0XR0.5 — Line Drawing PDF Download
