UGC DOR6706656
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.07 CAD - $103.07 CAD
$103.07 CAD
$103.07 CAD - $103.07 CAD
$103.07 CAD

Vendu en lots de : 1

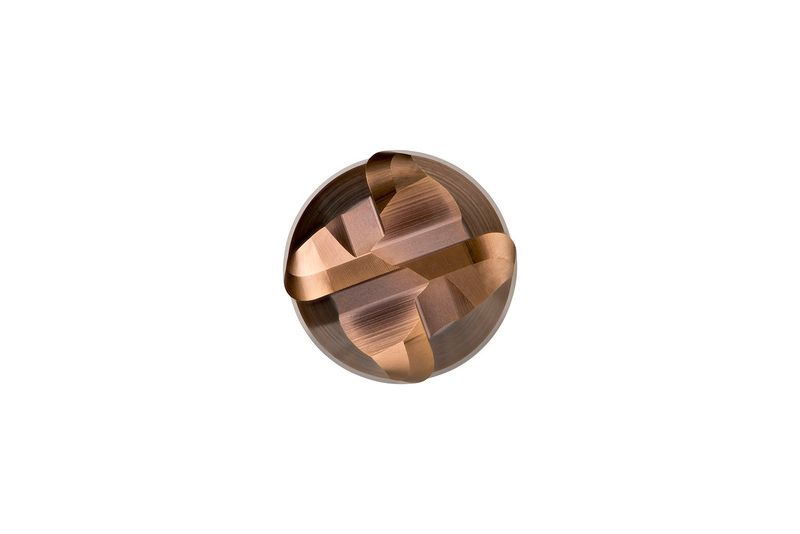

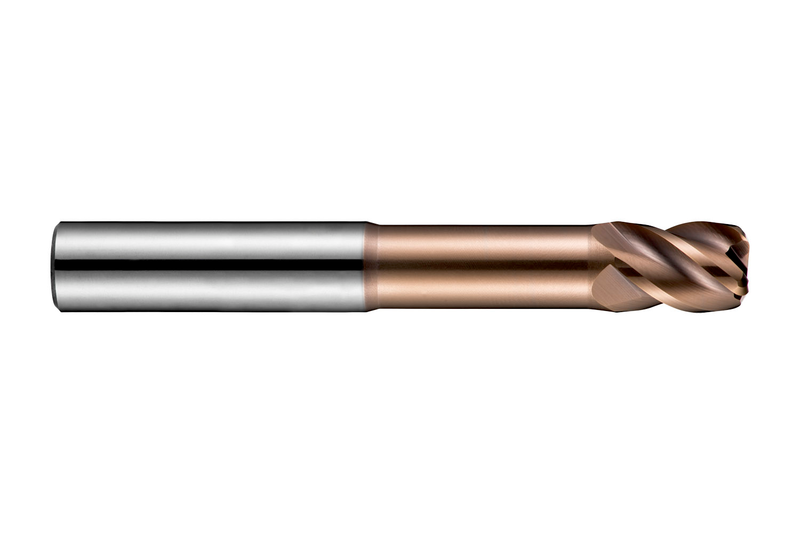

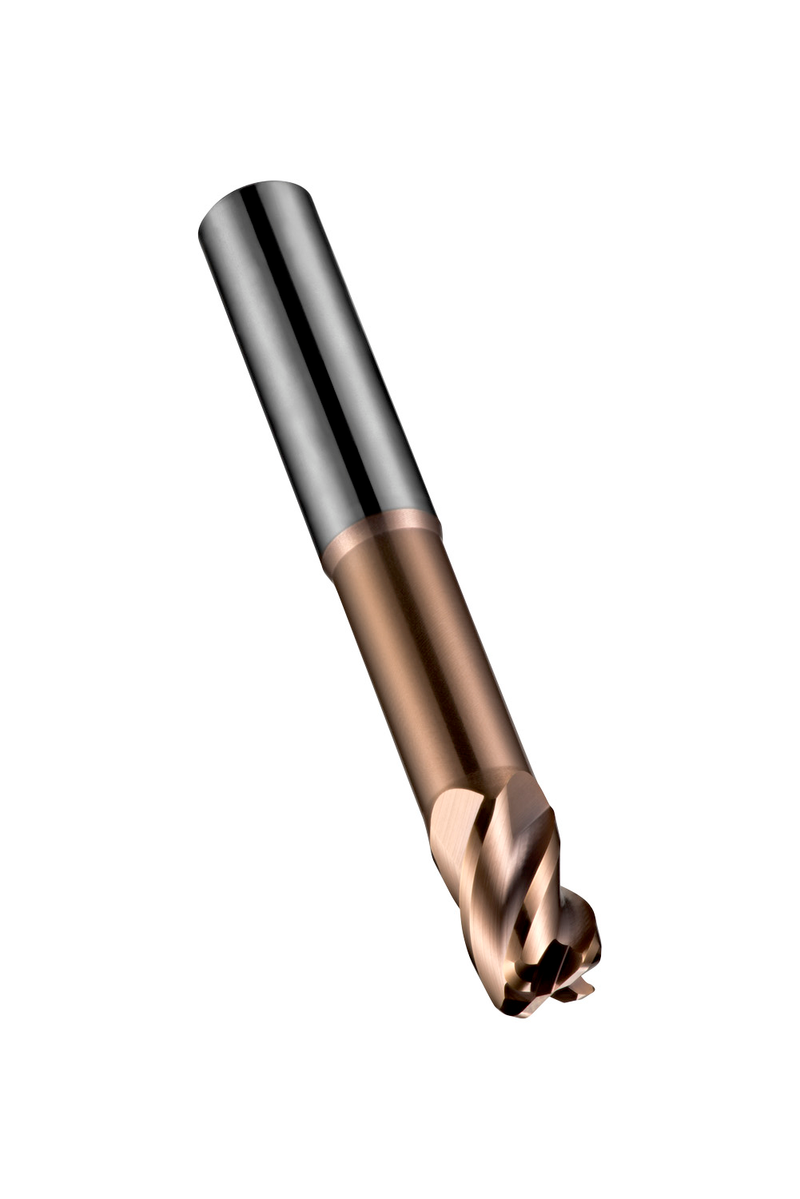

Fraise en bout à rayon de coin extra-courte avec 4 dents, diamètre 6 mm avec longueur de coupe de 10 mm, longueur totale de 75 mm, portée de 40 mm avec dégagement de collet et rayons de coin de 0,3 mm, conforme à la norme DORMER avec une queue cylindrique de 6 mm, carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulement, le plongement, le fraisage progressif en plongée, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5246.0XR0.3
GradeTiSiN
Product Number6706656
Product FamilyS524
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

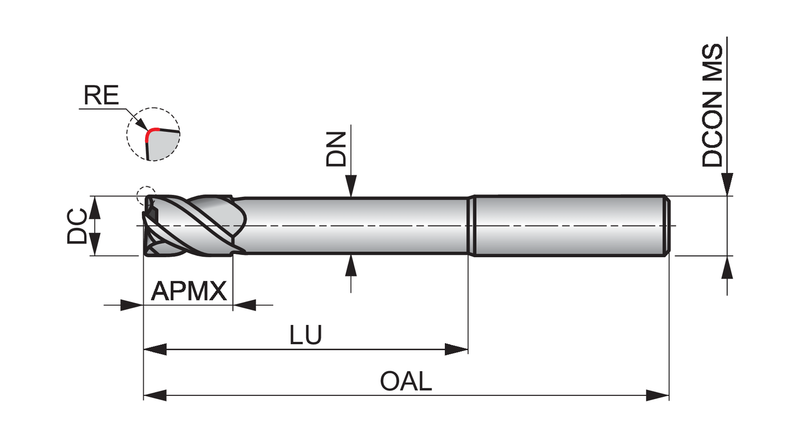

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706656
EAN7320760682050
File Type Download
S5246.0XR0.3 — Line Drawing PDF Download
