S5248.0XR0.3
S5248.0XR0.3
S5248.0XR0.3
S5248.0XR0.3

S5248.0XR0.3

UGC DOR6706659
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$145.36 CAD - $145.36 CAD
$145.36 CAD
$145.36 CAD - $145.36 CAD
$145.36 CAD

Vendu en lots de : 1

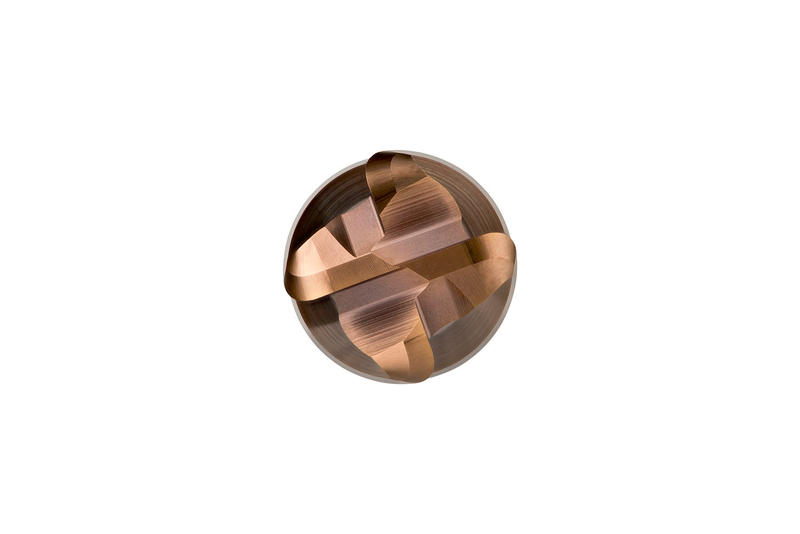

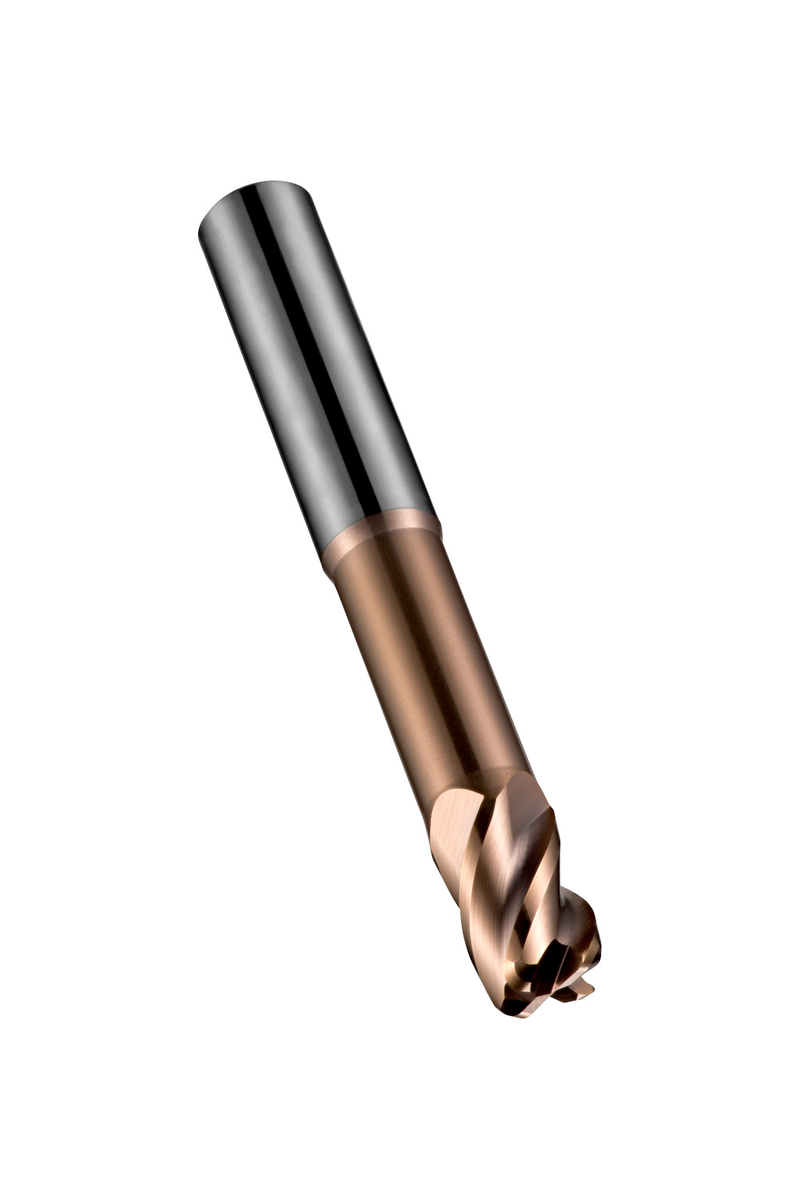

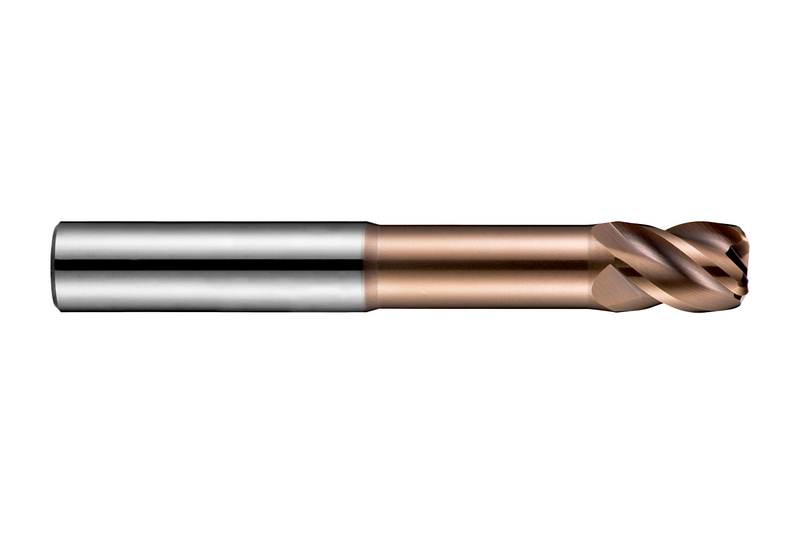

Fraise en carbure monobloc à 4 dents, à rayon de coin, série extra courte, diamètre 8mm avec une longueur de coupe de 12mm, une longueur totale de 75mm, un collet de 40mm avec dégagement et des rayons de coin de 0.3mm, selon la norme DORMER avec une queue cylindrique de 8mm, revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le fraisage progressif en plongée, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5248.0XR0.3
GradeTiSiN
Product Number6706659
Product FamilyS524

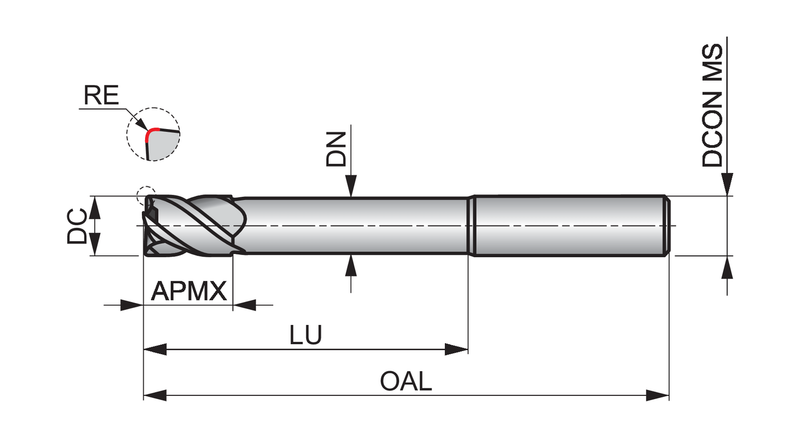

Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706659
EAN7320760682081
File Type Download
S5248.0XR0.3 — Line Drawing PDF Download
