UGC DOR6706662
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$190.81 CAD - $190.81 CAD
$190.81 CAD
$190.81 CAD - $190.81 CAD
$190.81 CAD

Vendu en lots de : 1

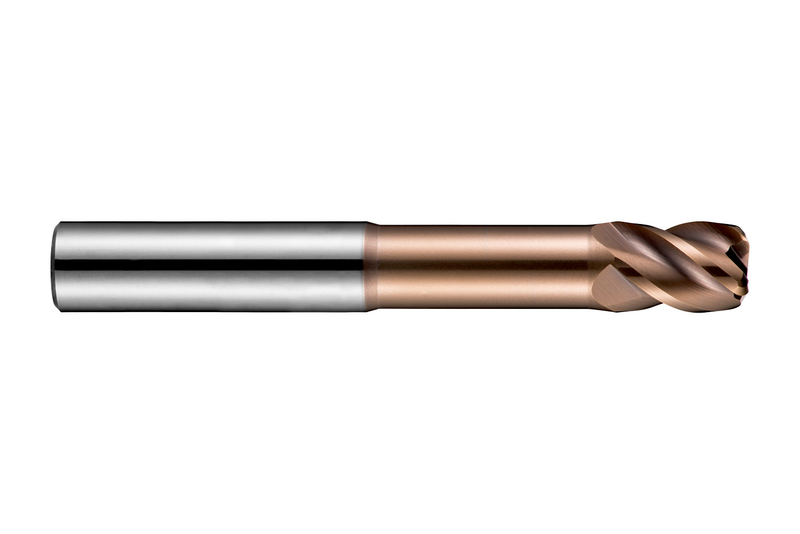

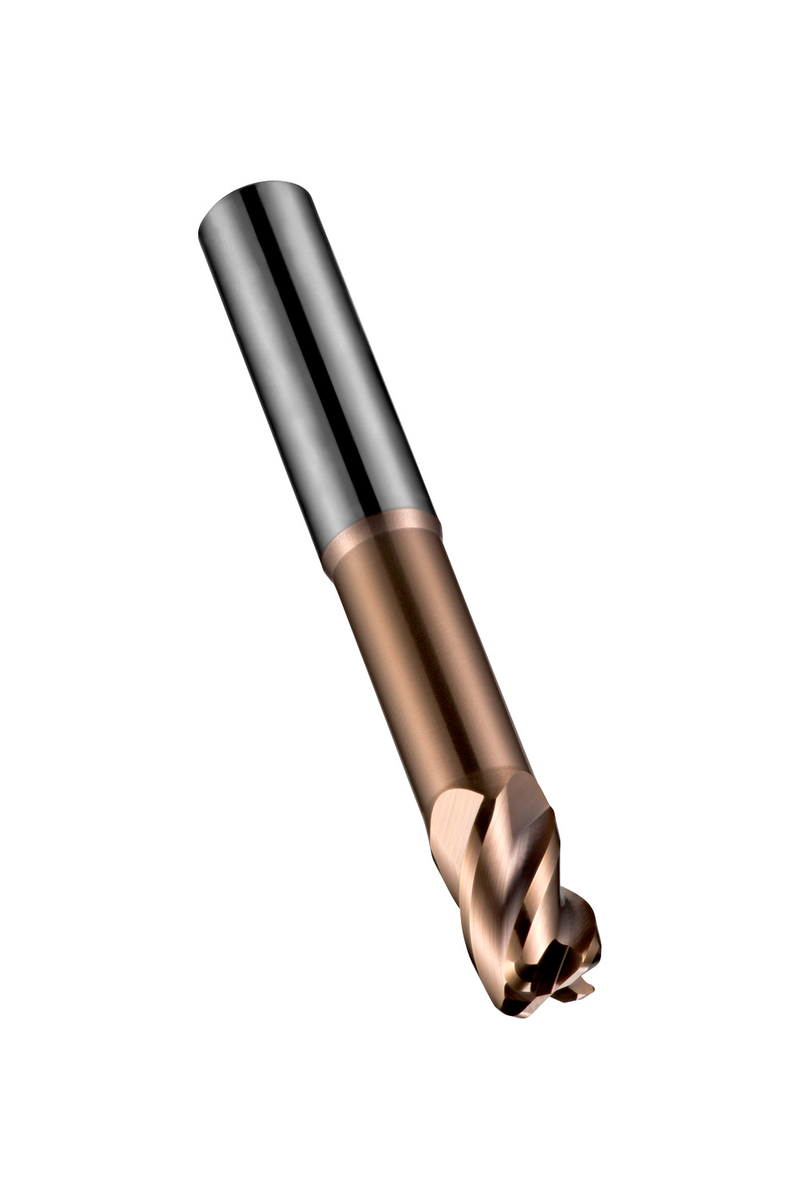

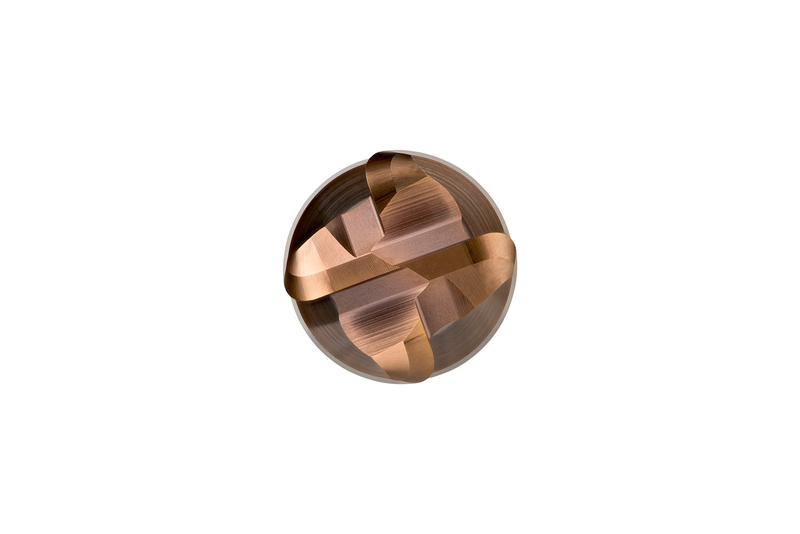

Fraise en carbure monobloc à rayon de coin extra courte, 4 arêtes, diamètre 10 mm avec une longueur de coupe de 14 mm, une longueur totale de 75 mm, un dégagement de 40 mm avec rayon de coin de 2 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le plongement progressif, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52410.0XR2.0
GradeTiSiN
Product Number6706662
Product FamilyS524

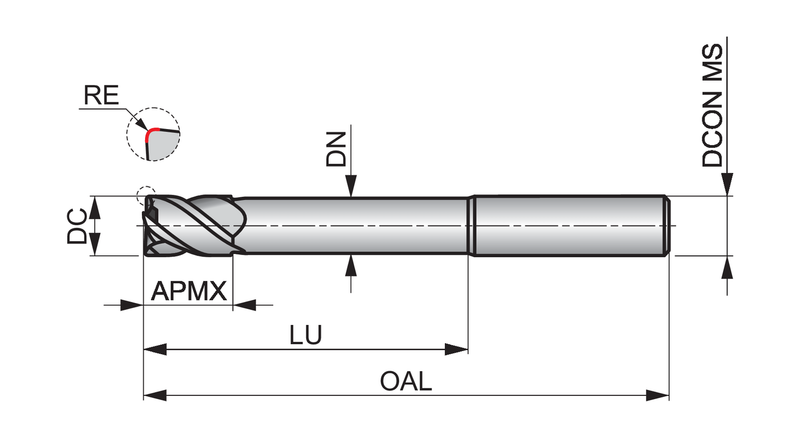

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706662
EAN7320760682111
File Type Download
S52410.0XR2.0 — Line Drawing PDF Download
