UGC DOR6706665
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$264.81 CAD - $264.81 CAD
$264.81 CAD
$264.81 CAD - $264.81 CAD
$264.81 CAD

Vendu en lots de : 1

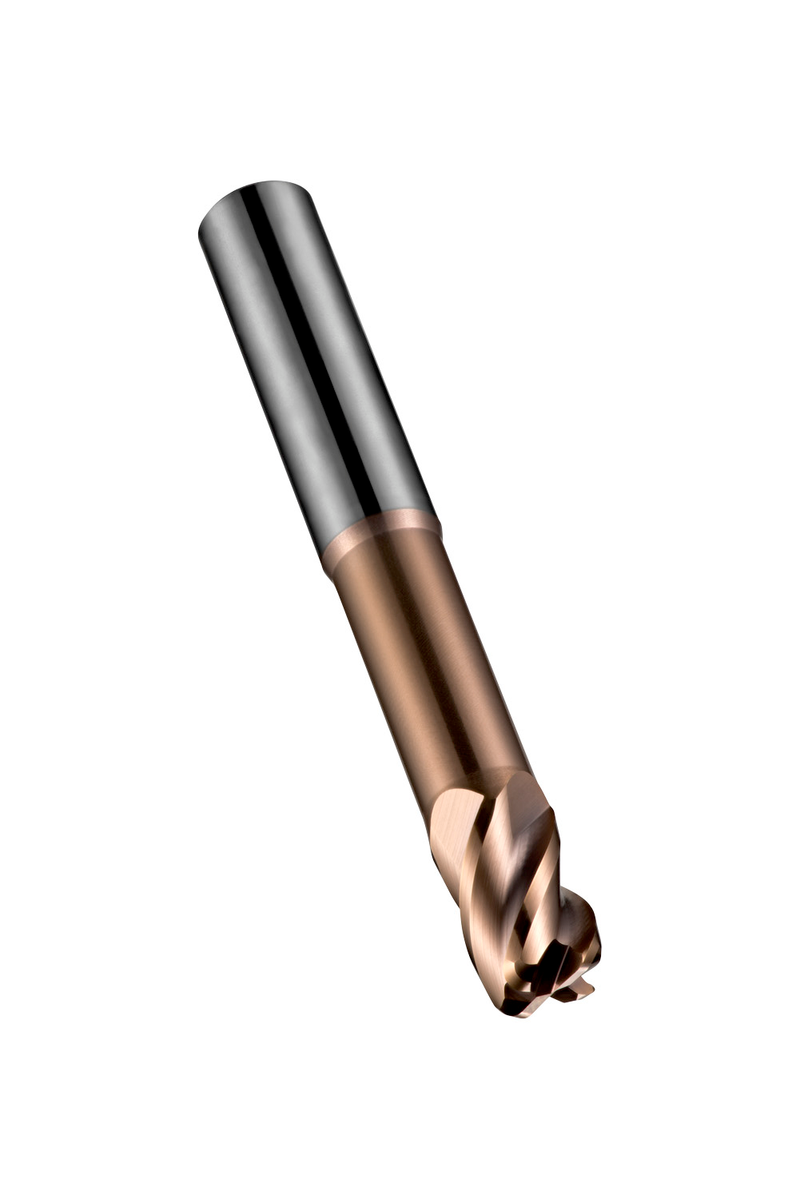

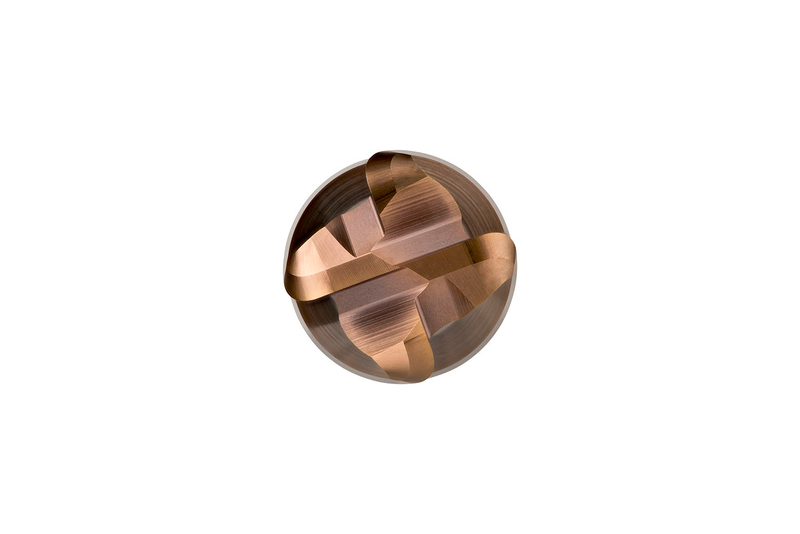

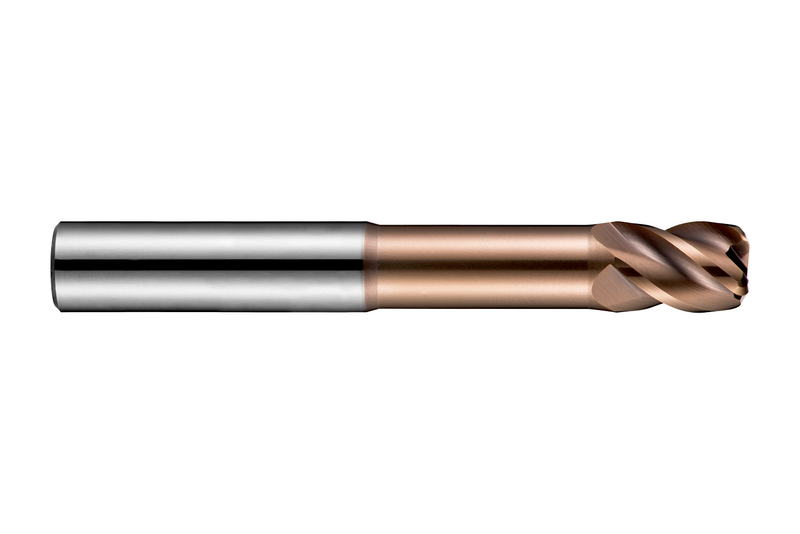

Fraise en bout à rayon d'angle et queue extra courte, 4 arêtes de coupe, diamètre 12mm avec une longueur de coupe de 16mm, longueur totale de 100mm, portée de 60mm avec dégagement de col et des rayons de coin de 0.5mm, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le plongement progressif, la rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52412.0XR0.5
GradeTiSiN
Product Number6706665
Product FamilyS524

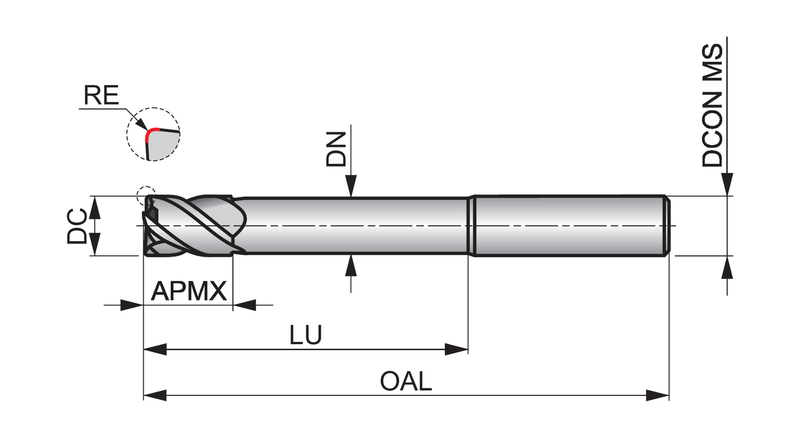

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706665
EAN7320760682142
File Type Download
S52412.0XR0.5 — Line Drawing PDF Download
